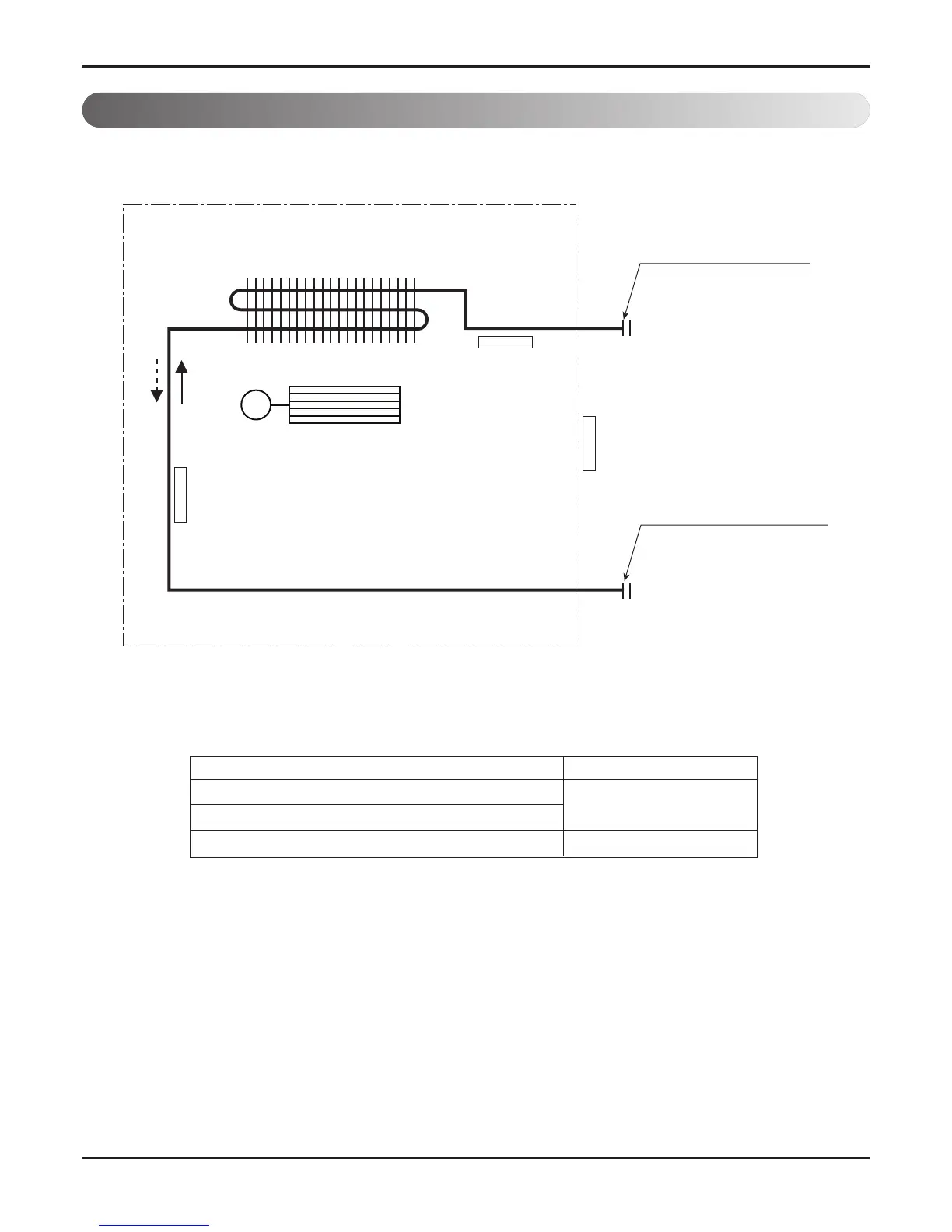

2. Piping Diagrams
Gas pipe connection port
(flare connection)
Liquid pipe connection port
(flare connection)
Cooling
Heating
Thermistor for
Evaporator Inlet Temperature
Thermistor for
Indoor Air Temperature
Thermistor for Evaporator
Outlet Temperature
Heat Exchanger
Cross Flow Fan
M
Description PCB Connector
Thermistor for Indoor Air Temperature
CN-TH1
Thermistor for Evaporator Inlet Temperature
Thermistor for Evaporator Outlet Temperature CN-TH2
