38 | STANDARD
MULTI V Wall-Mounted Indoor Unit Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
STANDARD WALL-MOUNTED
External Dimensions

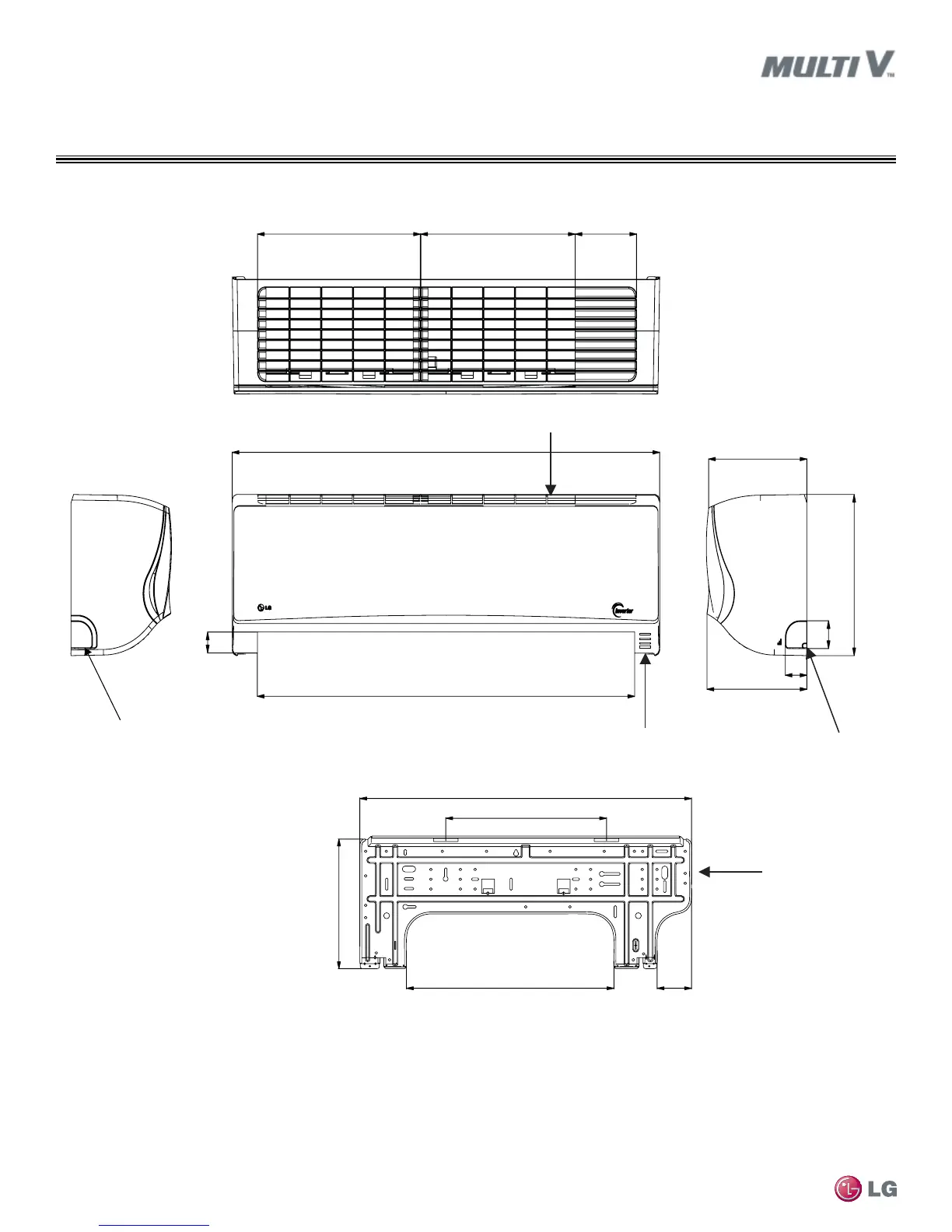

Figure 15: ARNU053SBL4, ARNU073SBL4, ARNU093SBL4, ARNU123SBL4, ARNU153SBL4 Dimensions.
SB Frame
Display and Signal Receiver
Front Panel
Air Inlet Grille
Installation Plate
Access Hole
11-7/16
2
8-5/16
1-13/16
35-1/4
13-7/16 12-3/4 5-1/16
1-1/2
31-1/8
8-1/16
26-5/8
12-7/8
16-5/8
10-7/16
2-13/16
Unit: inches
Note: All measurements
have a tolerance of 1/4 in.
Access Hole
