Indoor Unit Terminal Block
L(L1) N(L2)
A------ABB
GND 12V
DRY2DRY1 INTERNETIDUSODU
Outdoor Unit Terminal Block
Power Input
208-230V /
60 Hz / 1 Phase
A B
Ground
REMO
Wired Controller

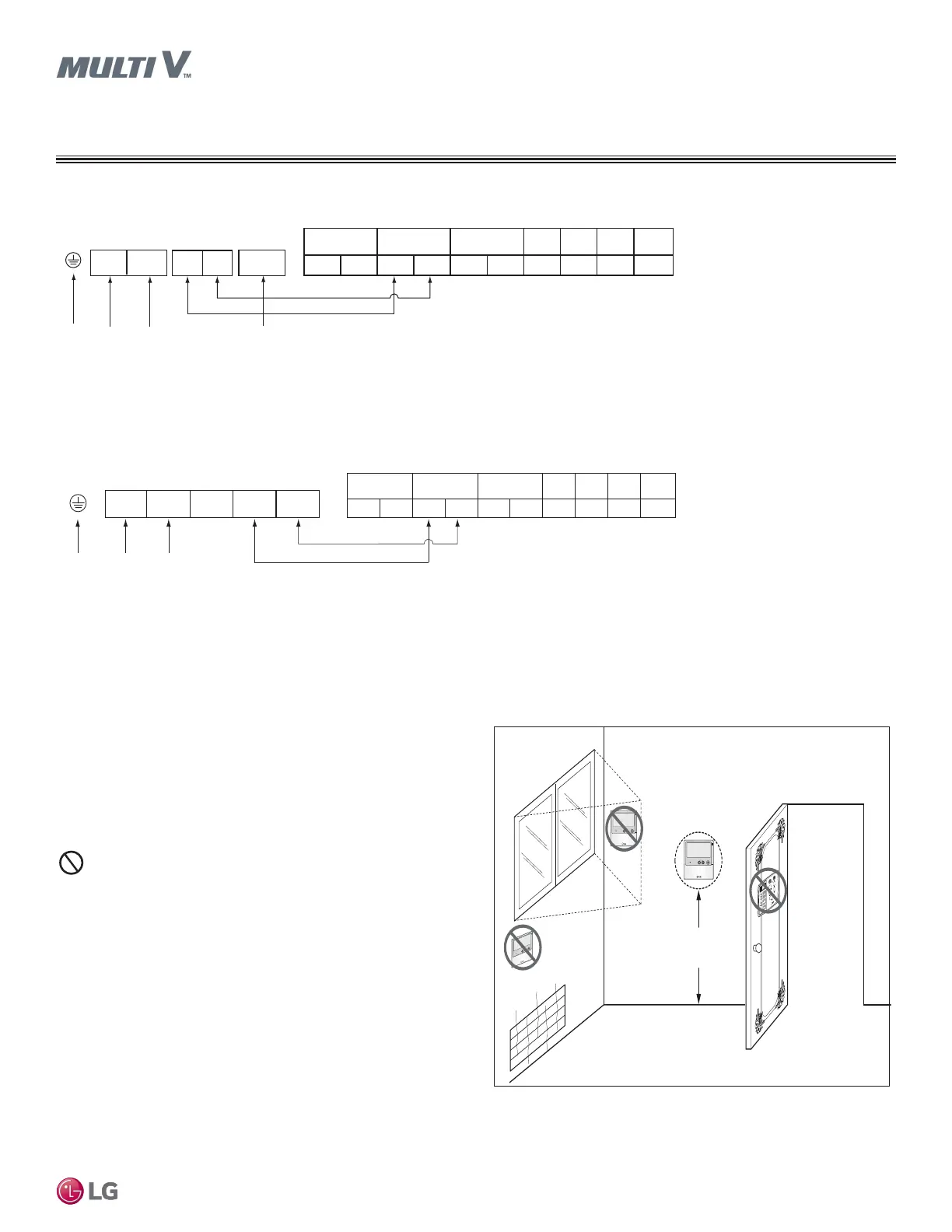

Figure 82: Terminal Block in the Low Static L1, L2, L3 Ducted Indoor Units.
3(A) 4(B)
Indoor Unit Terminal Block
Power Input
208-230V /
60 Hz / 1 Phase
Ground
L(L1)N(L2)
A------ABB
GND12V
DRY2DRY1 INTERNETIDUSODU
Outdoor Unit Terminal Block
Wired Controller Placement
Wired controllers include a sensor to detect room temperature. To
maintain comfort levels in the conditioned space, the wired control-
ler must be installed in a location away from direct sunlight, high
humidity, and where it could be directly exposed to cold air. Control-
ler must be installed four (4) to five (5) feet above the floor where its
LED display can be read easily, in an area with good air circulation,
and where it can detect an average room temperature.
Do not install the wired controller near or in:
• Drafts or dead spots behind doors and in corners
• Hot or cold air from ducts
• Radiant heat from the sun or appliances
• Concealed pipes and chimneys
• An area where temperatures are uncontrolled, such as an outside
wall
4 to 5 feet
above the floor
NO
NO
NO
YES
Remote Controlle r
TEMP
Remote Controller
TEMP
Re
m
o
t
e
Co
n
t
r
ol
ler
TEMP
Wiring Guidelines / Wired Controller Placement
APPLICATION GUIDELINES
Figure 83: Terminal Block in the Vertical / Horizontal Air Handler Units.
Figure 84: Proper Location for the Wired Controller.
