- 11 -
EEV
Fil ter
EEV
Fil ter
ss
EEV
Solenoid valve
SVC Valve
Indoor HEX
Indoor Unit
Indoor HEX
Indoor Unit
Pressure Sensor
Pressure Switch
Temperature Sensor
Remarks
Strainer
Fan
Fan
DC DC
S
Outdoor
Temperature
Sensor
Outdoor
EEV
HIgh
Pressure
Switch
HIgh
Pressure
Sensor
Low
Pressure
Sensor
Hot Gas
Valve
Accumulator
Inverter
Compressor
Sub-Cooler
Suction
Temperature
Sensor
Comp
Discharge
Temperature
Sensor
Sub-cooling Circit
Oulet Temperature
Sensor
Outdoor Unit
HEX Temperature
Sensor
Chatging
Port
Liquid Pipe
Temperature
Sensor

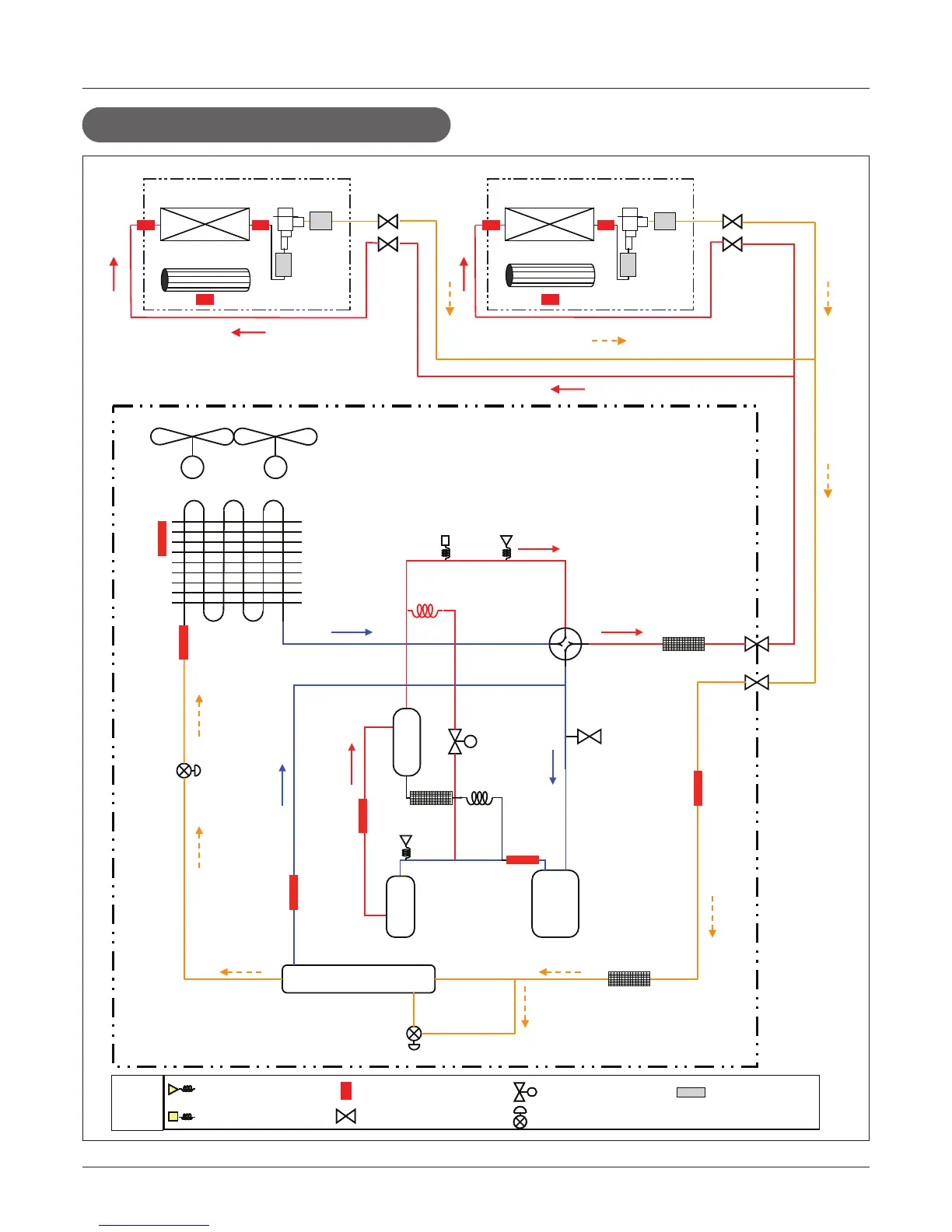

Heating Operation
Piping Diagrams
