LG ARUN040GSS0 Service Manual

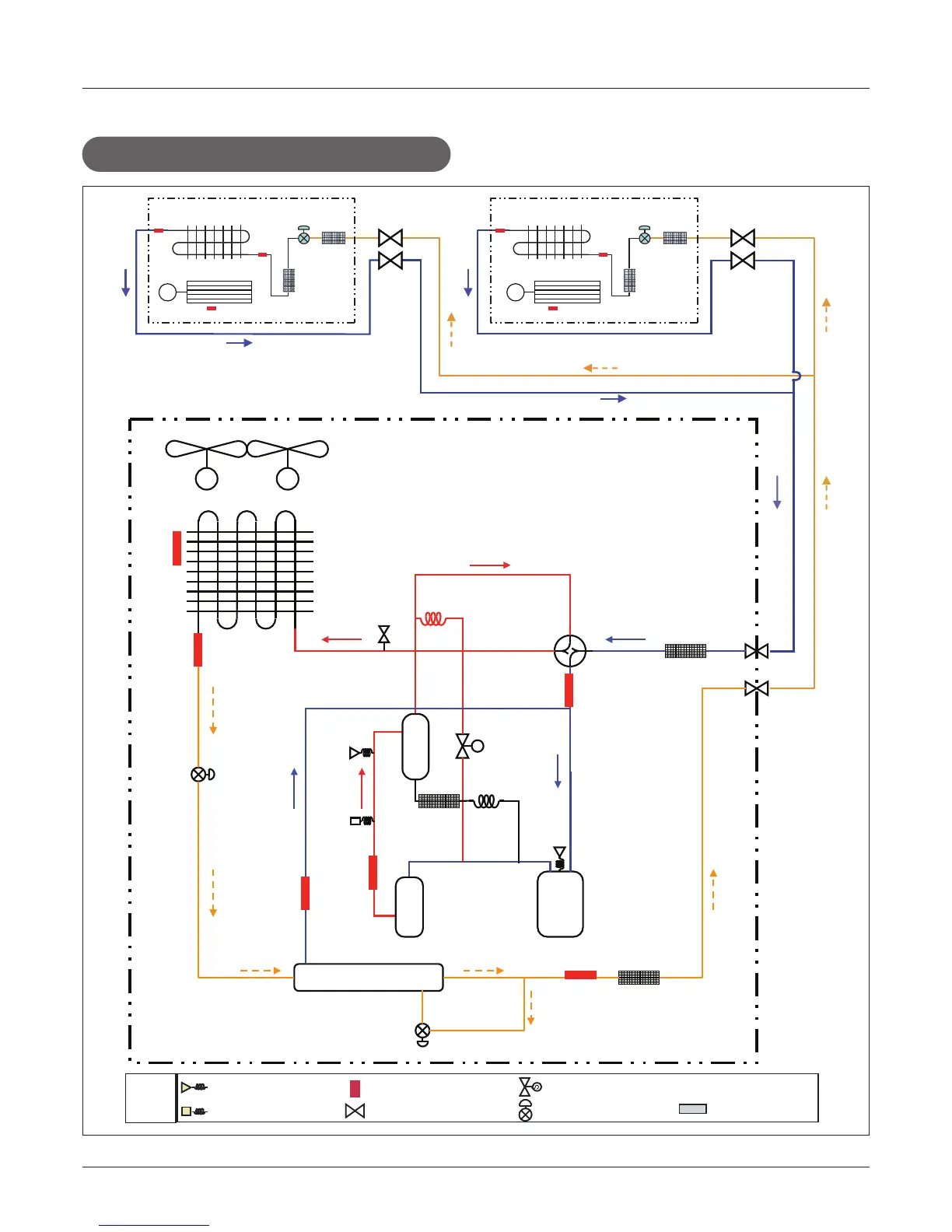

Piping Diagrams
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 13 -
M
M
Indoor HEX EEV EEVIndoor HEX
Fan Fan
Indoor Unit Indoor Unit
Remarks
Pressure Sensor Temperature Sensor Solenoid valve
Strainer
Pressure Sensor SVC Valve
DC DC
S
Outdoor
Temperature
Sensor
Outdoor
EEV
HIgh
Pressure
Switch
HIgh
Pressure
Sensor
Low
Pressure
Sensor
Hot Gas
Valve
Accumulator
Inverter
Compressor
Sub-Cooler
Suction
Temperature
Sensor
Comp
Discharge
Temperature
Sensor
Sub-cooling Circit
Oulet Temperature
Sensor
Outdoor Unit
HEX Temperature
Sensor
Charging
Port
Liquid Pipe
Temperature
Sensor
Oil
Seperater
Cooling Operation
