PIPE CONNECTIONS BETWEEN INDOOR AND OUTDOOR UNIT
33
ENGLISH

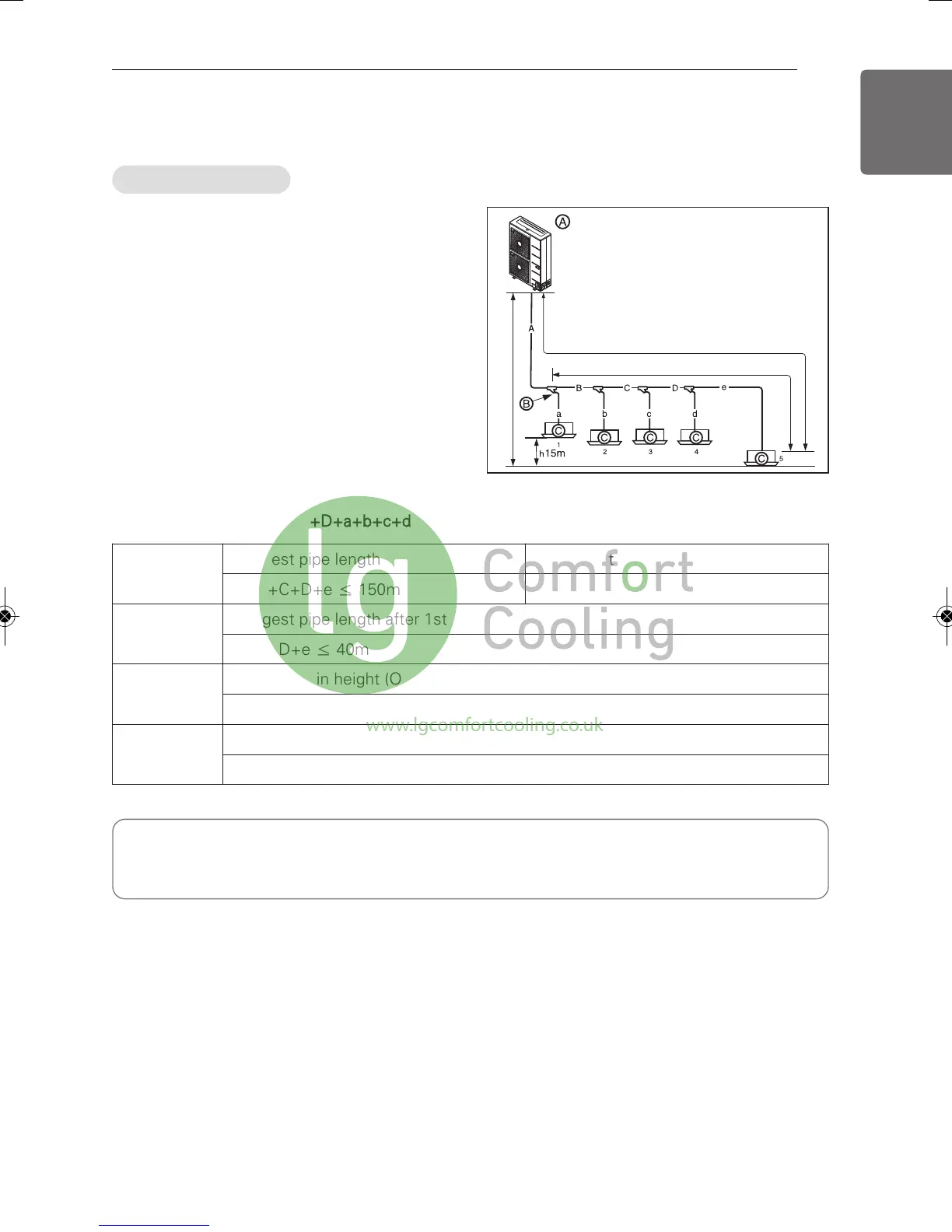

Y branch method
Example : 5 Indoor Units connected
Ⓐ : Outdoor Unit
Ⓑ : 1st branch (Y branch)
Ⓒ : Indoor Units
L150m
H 50m
l 40m
Refrigerant piping system
Total pipe length = A+B+C+D+a+b+c+d+e ≤ 300m
L
Longest pipe length Equivalent pipe length(*)
A+B+C+D+e ≤ 150m A+B+C+D+e ≤ 175m
l
Longest pipe length after 1st branch
B+C+D+e ≤ 40m
H
Difference in height (Outdoor Unit ↔ Indoor Unit)
H ≤ 50m (40m : Outdoor Unit is lower than Indoor Units)
h
Difference in height (Indoor Unit ↔ Indoor Unit)
h ≤ 15m
• * : Assume equivalent pipe length of Y branch to be 0.5m, that of header to be 1m,
calculation purpose
1,MFL67798020, 2018. 4. 26. 7:06 Page 33
