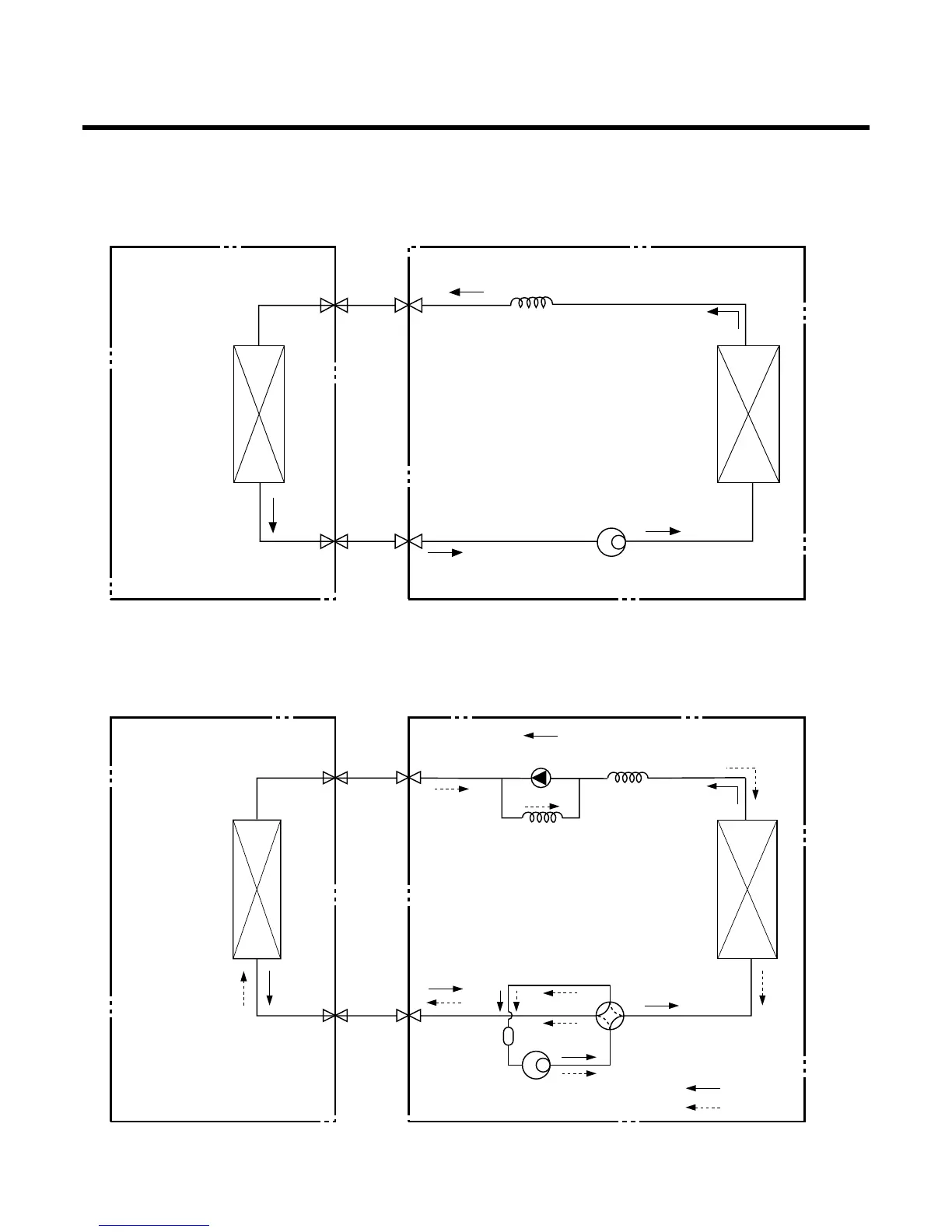

Refrigeration Cycle Dia
gram
-11-
INDOOR UNIT
OUTDOOR UNIT
INDOOR UNIT
OUTDOOR UNIT
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
COMPRESSOR
ACCUMU
LATOR
GAS SIDE
GAS SIDE
VALVE
LIQUID SIDE
LIQUID SIDE
VALVE
CAPILLARY TUBE
CAPILLARY TUBE
CHECK VALVE
(Heating Model only)
COOLING
HEATING
REVERSING
VALVE
(Heating Model Only)
(1) Cooling Only Models
(2) Cooling & Heating Models
10
12
Table of Contents
Room Air Conditioner
1
Service Manual
1
Table of Contents
2
Details of 2002 LG Model Name
3
Indoor Unit
4
Functions
4
Remote Control
5
Product References
6
Dimensions
7
Refrigeration Cycle Diagram
11
Wiring Diagram
12
Operation Details
13
Forced Operation
18
Test Operation
18
Auto Restart
18
Display Function
20
Self-Diagnosis Function
20
Installation
22
Flaring Work and Connection of Piping
24
For Left Rear Piping
26
Connecting the Cable between Indoor Unit and Outdoor Unit
29
Checking the Drainage and Forming the Pipings
31
Operation
33
Disassembly of the Parts (Indoor Unit)
34
2-Way, 3-Way Valve
37
Pumping down
38
Gas Charging
40
Cycle Troubleshooting Guide
42
Electronic Parts Troubleshooting Guide
43
When Indoor Fan Does Not Operate
46
Electronic Control Device
50
Schematic Diagram
53
Exploded View and Replacement Parts List
55
