LG AS-C186TLB0 - Outdoor Unit Dimensions

42 2005 Product Data

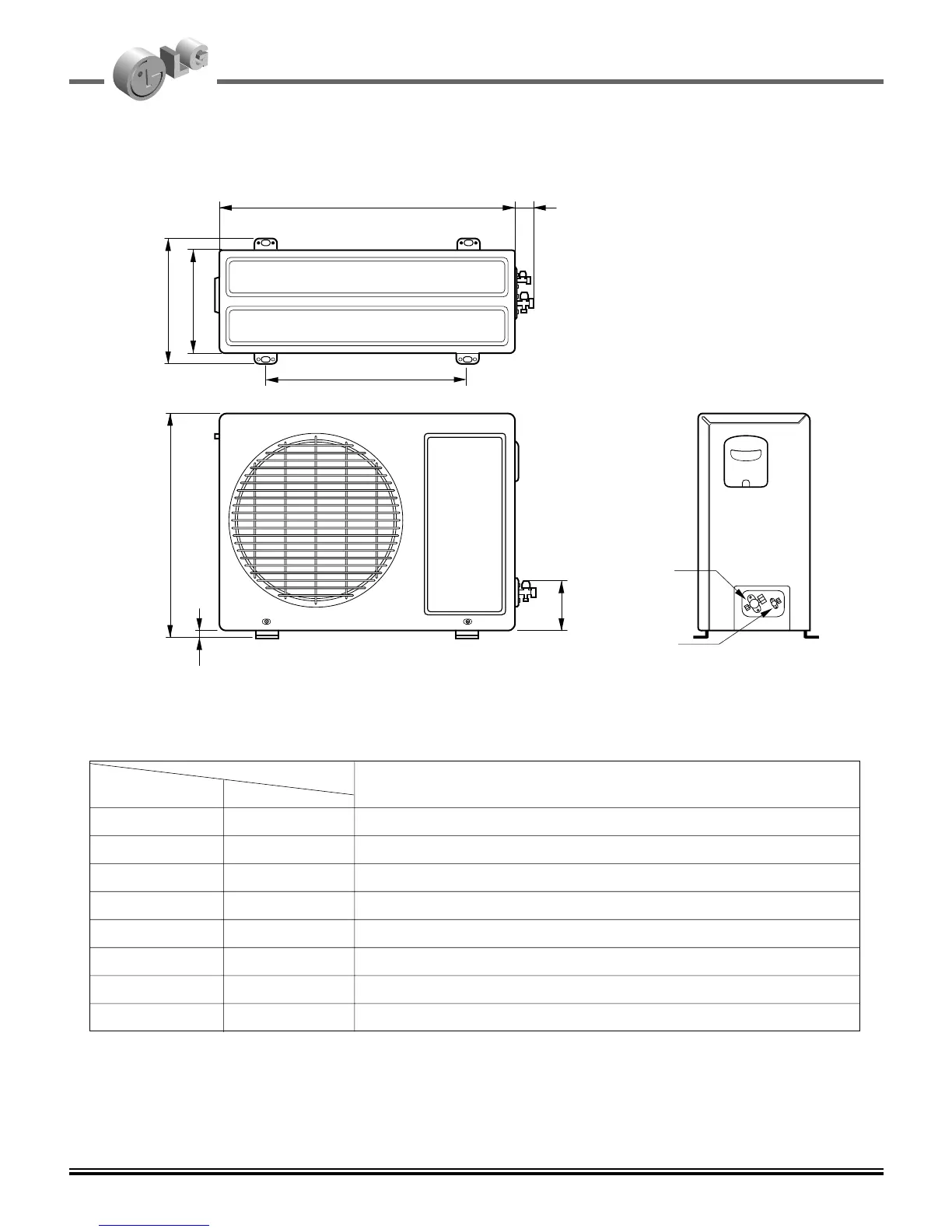

5. Dimensional Drawings Outdoor Units
2. Outdoor Unit
• 7~12k Btu
W
L2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
Chassis
DIM unit
W mm 717
H mm 498
D mm 229
L1 mm 270
L2 mm 56
L3 mm 464
L4 mm 17
L5 mm 130
UA3
