LG AS-H076PB - Page 10

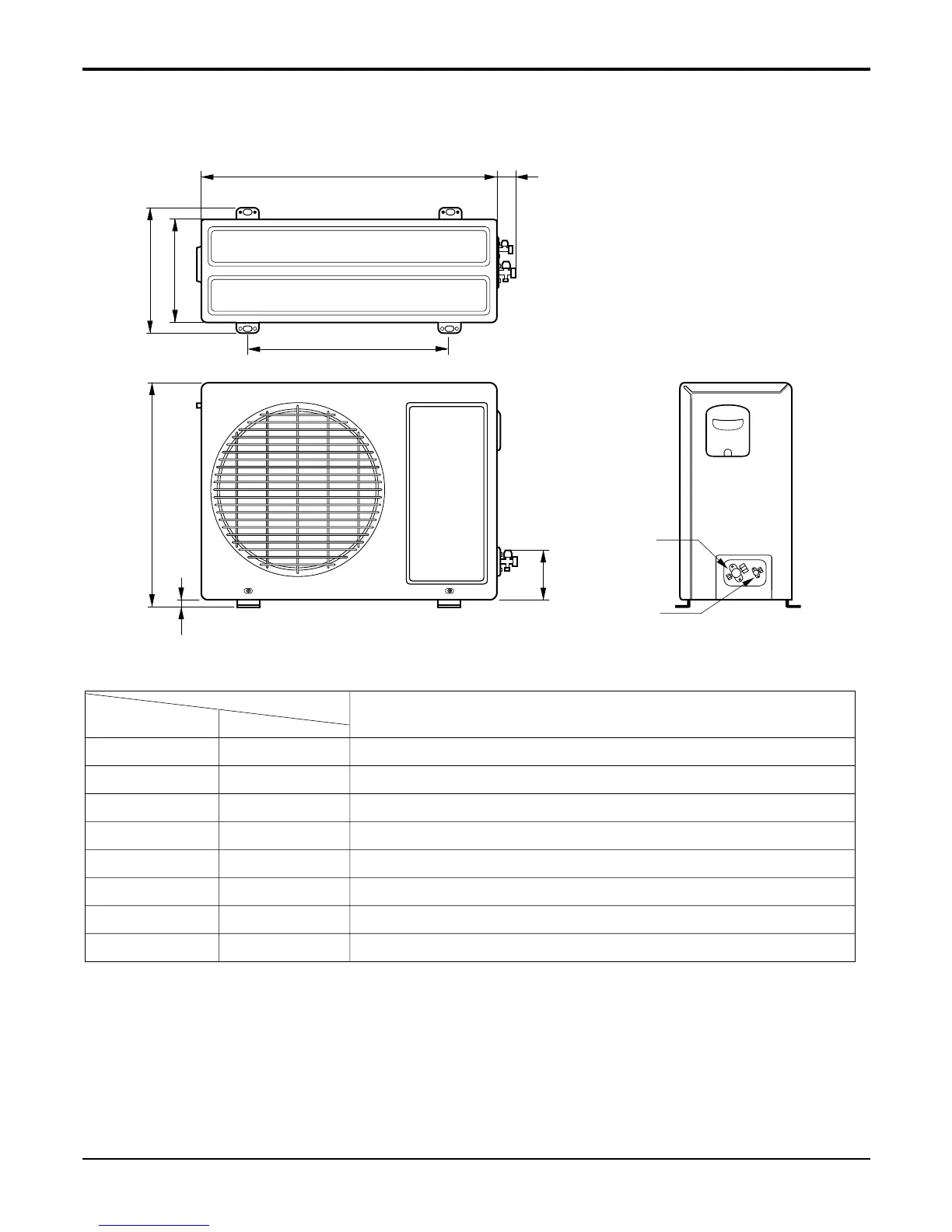

10 Room Air Conditioner
W
L2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
MODEL
AS-H096PB/D/M/WL1, AS-H126PB/D/M/WL1
DIM unit
W mm 770
H mm 540
D mm 245
L1 mm 285
L2 mm 64
L3 mm 518
L4 mm 10
L5 mm 100
Dimensions
