Service Manual 9
Outdoor Unit

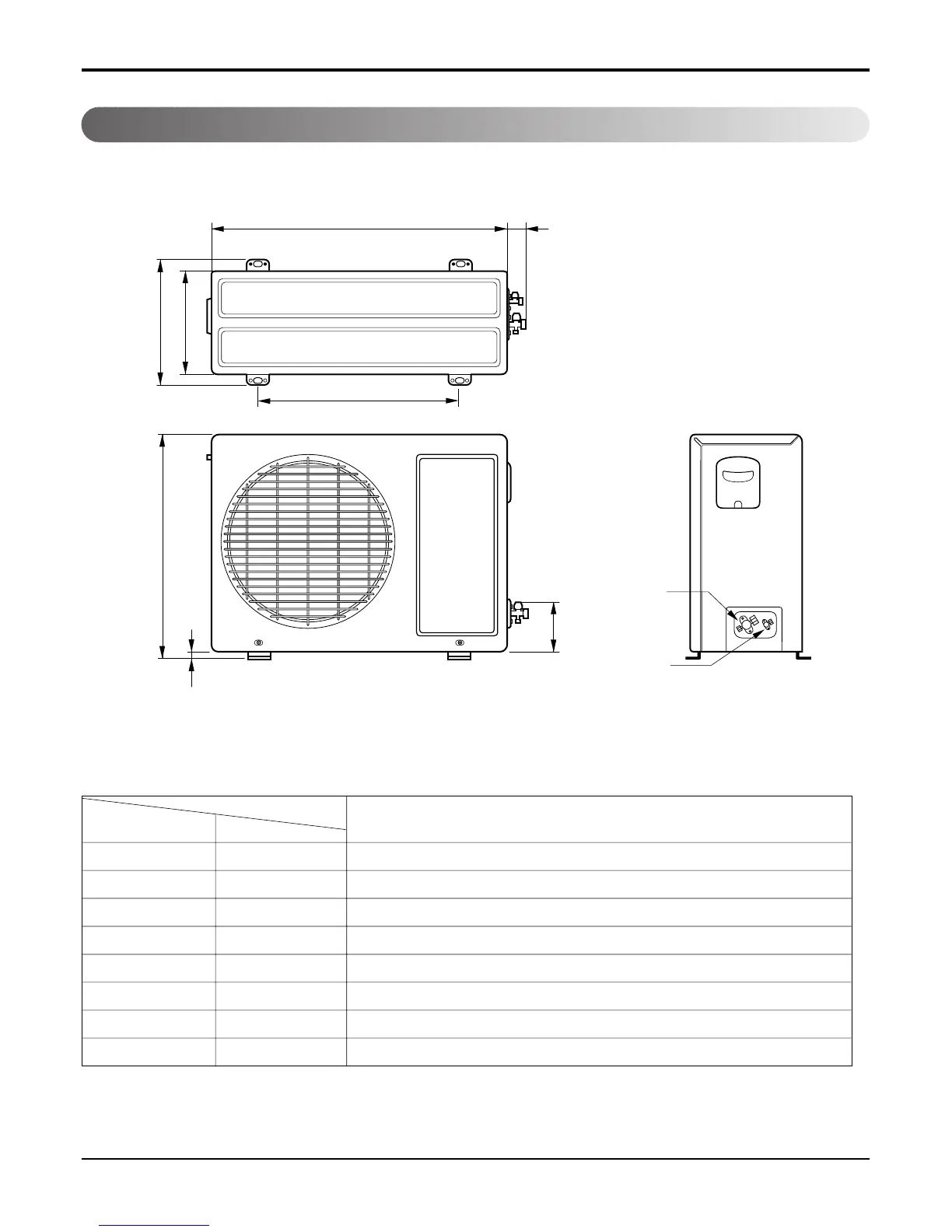

Dimensions
W
L2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
MODEL
AS-H076PB/D/M/WL1
DIM unit
W mm 575
H mm 525
D mm 260
L1 mm 301
L2 mm 73
L3 mm 392
L4 mm 35
L5 mm 100
