12 INSTALLATION
Preparing the Installation Location
Important Installation Information
• All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC-only
electrical supply with ground.
• Minimum distance between cooktop and overhead cabinetry is 30" (762 mm) for a 30" cooktop and 36"
(914 mm) for a 36" cooktop.
• Make sure the cabinets and wall coverings around the cooktop can withstand the temperatures (up to 93
℃ [200 ℉]) generated by the cooktop.

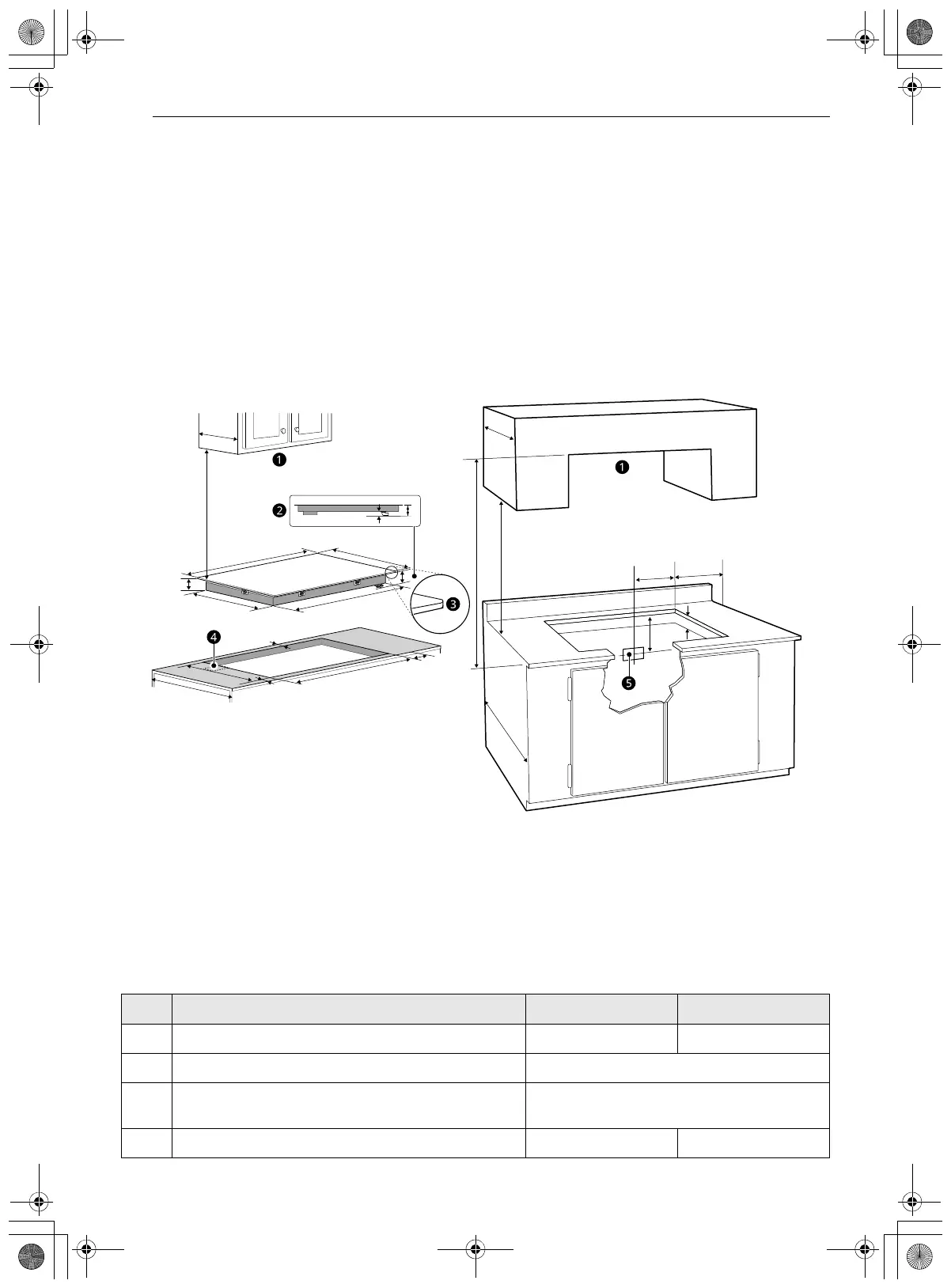

Dimensions and Clearances
a Do not obstruct these areas.
b Right side
c Radius: 3/8" (10 mm)
d 4″ X 8″ (102 mm x 203 mm) opening to route armored cable if panel is present.
e Approximate location of junction box
- Dimension/Clearance 30" Cooktop 36" Cooktop
A Width of upper plate 30 11/16" (781 mm) 36 5/8" (930 mm)
B Depth of upper plate 21 1/16" (534 mm)
C
Distance from bottom of upper plate to bottom of
conduit
3 9/16" (90 mm)
D Width of cooktop base 28 1/8" (714 mm) 33 1/2" (851 mm)
$
%
&
'
&
(
)
*
+
,
-
.
/
0
1
2
3
2
34
7
5
6
.
