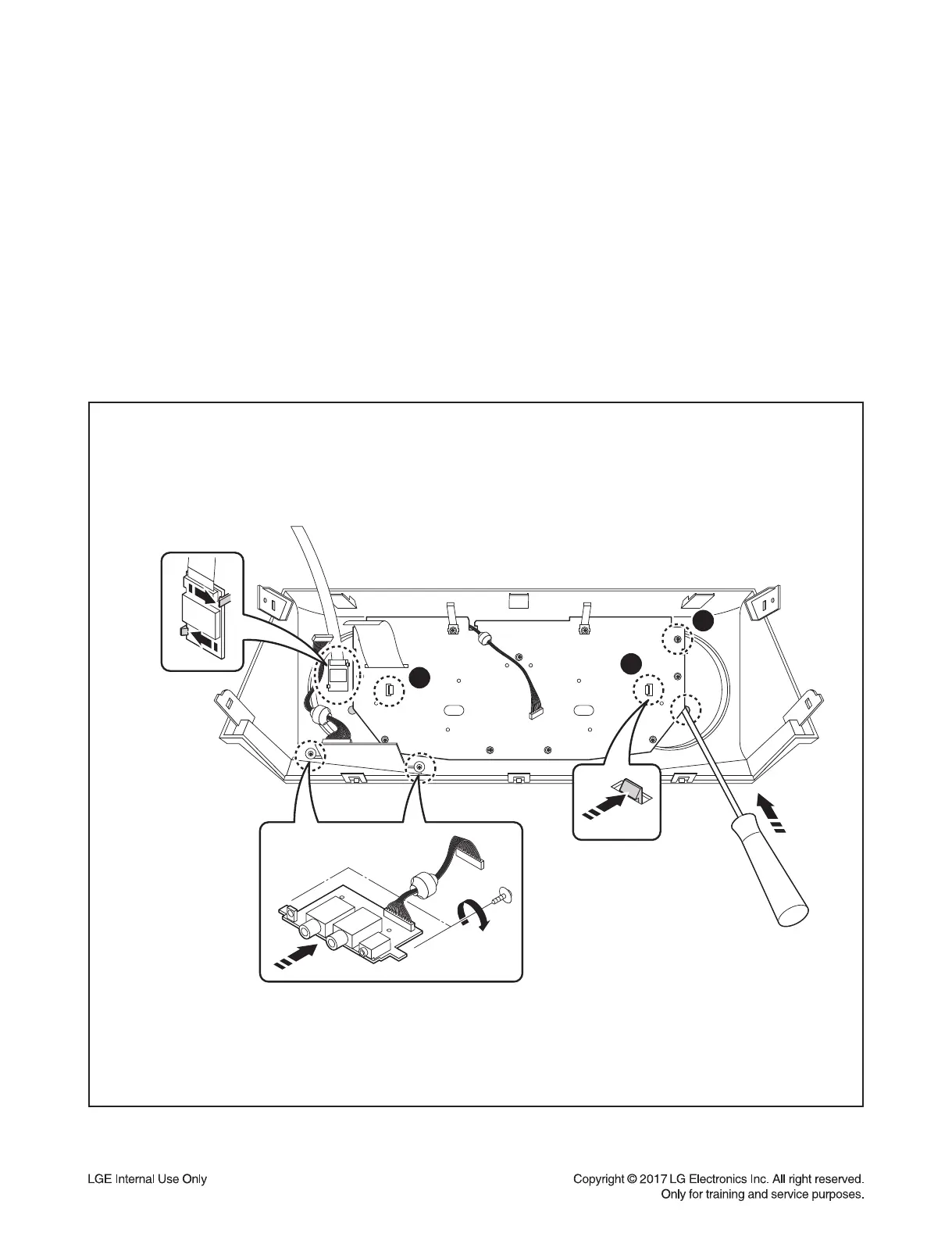

3. Panel PCB & Multi Knob
3-1) Multi Knob
3-1-1) Insert a Flat-head screwdriver in the hole (H1).
3-1-2) Remove the Multi Knob.
3-2) Jack PCB
3-2-1) Remove the 2 Screws.
3-2-2) Remove the Jack PCB.
3-3) BT Module
3-3-1) Unhook the Locking tab (L1).
3-3-2) Remove the BT Module.
3-4) Front PCB
3-4-1) Remove the 11 Screws.
3-4-2) Remove the Front PCB.
