3-14
ONE POINT REPAIR GUIDE
NO SOUND
There is no sound output in the AUX FUNCTION, repair the set according to the following guide.
5-4. IN THE AUX FUNCTION
5-4-1. Solution
Please check and replace IC202 on MAIN board.
5-4-2. How to troubleshoot (Countermeasure)
1) Check AUX_L/R signals to IC202 (Pin29, 30).
2) Check if MCS_BCK, MCS_LRCK & MCS_MCLK are entered from IC500 to IC202.
3) Check if ADC_DATA is entered from IC202 to IC500.
If no signal, check +5 V & +3.3 V(ADC) for IC201. If is NG, replace it a new one.
4) Check the following I2S signal flow from IC801 to IC602. (Refer to Item 5-1.)
If there is any trouble, check the power for each IC. The power is normal but, if the signal waveform to
the IC is distorted or no signal, replace it with a new one.
5) Check if the digital audio AMP block is okay. Refer to “Digital Audio AMP” guide on Item 5-2.
If AMP is damaged, replace it with a new one.
5-4-3. Service hint (Any picture / Remark)
< AUX function signal fl ow >
PWM
FR,FL
Woofer
12.288 MHZ
DSP IC501
176 PIN BGA
IC201
AUX
AUX _L/R
Interrupt
controller
CDROM x8 speed
Decoder
NAND Controller
within BCH codec
14bits ECC
GDMA 3ch
ADC (12bit*5ch)
Timer, Watchdog
GPIO (72 Max)
SPI 4ch (Max)
RTC & Wake up
UART 4ch (Max)
I2C 2ch
SDHC-SDIO 4ch (Max)
USB 2.0 OTG
SRAM (10K)
Main Processor
Audio DSP-0
GDMA 2ch
I2S (7.1ch)
SPDIF (Rx, Tx)
ADPCM
PLL
Clock Controller
Reset Controller
Test Controller
Audio DSP-1
USB 1.1
Host/Device
ARM
926EJS
16KB
I-Cache
16KB
D-Cache
400Mhz
DSP
133Mhz
SRAM29KB
I-Cache 8KB
D-Cache 8KB
DSP
133Mhz
SRAM29KB
I-Cache 8KB
D-Cache 8KB
Boot ROM (20KB)
SDRAM
Controller

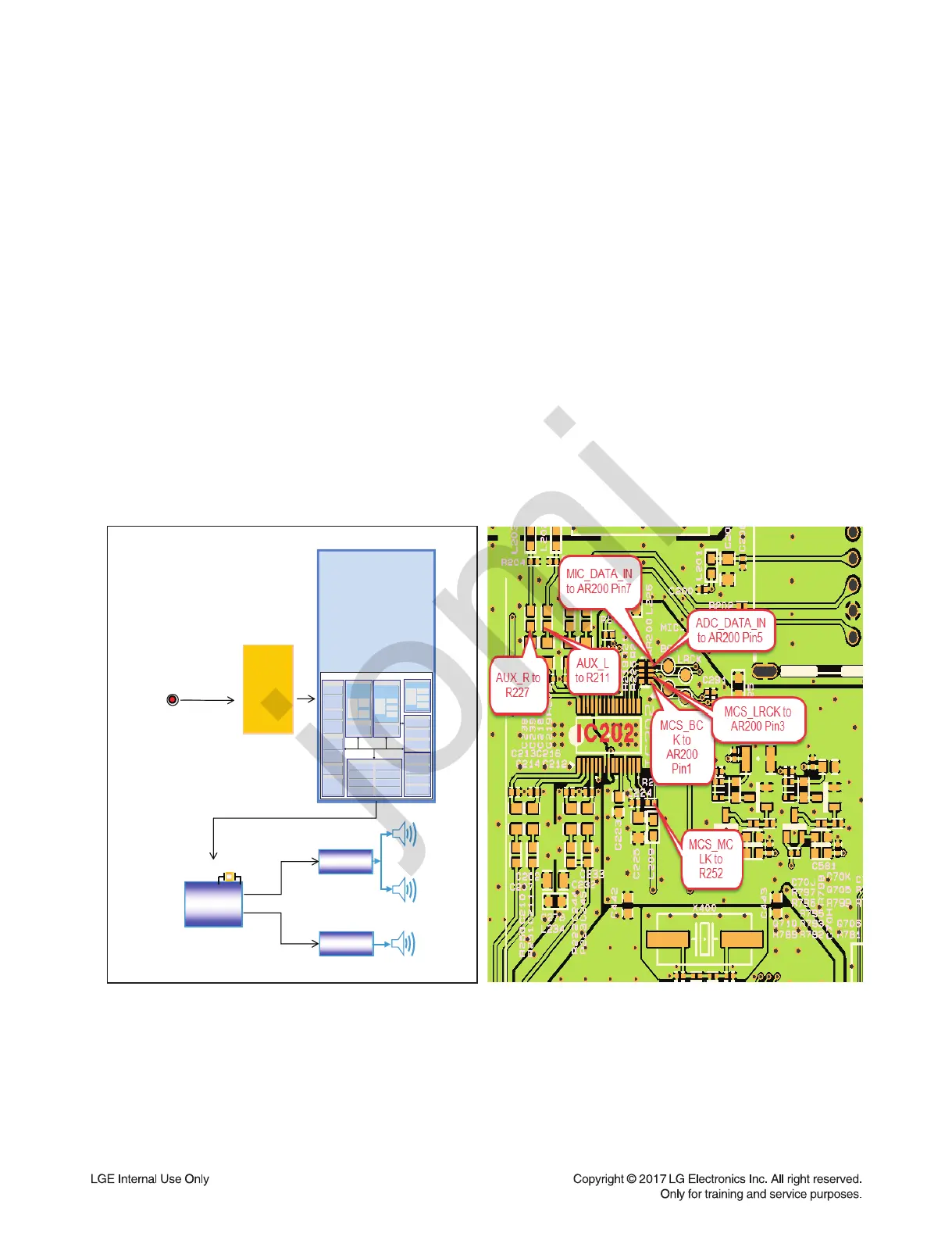

< Signal check point >
