2-10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

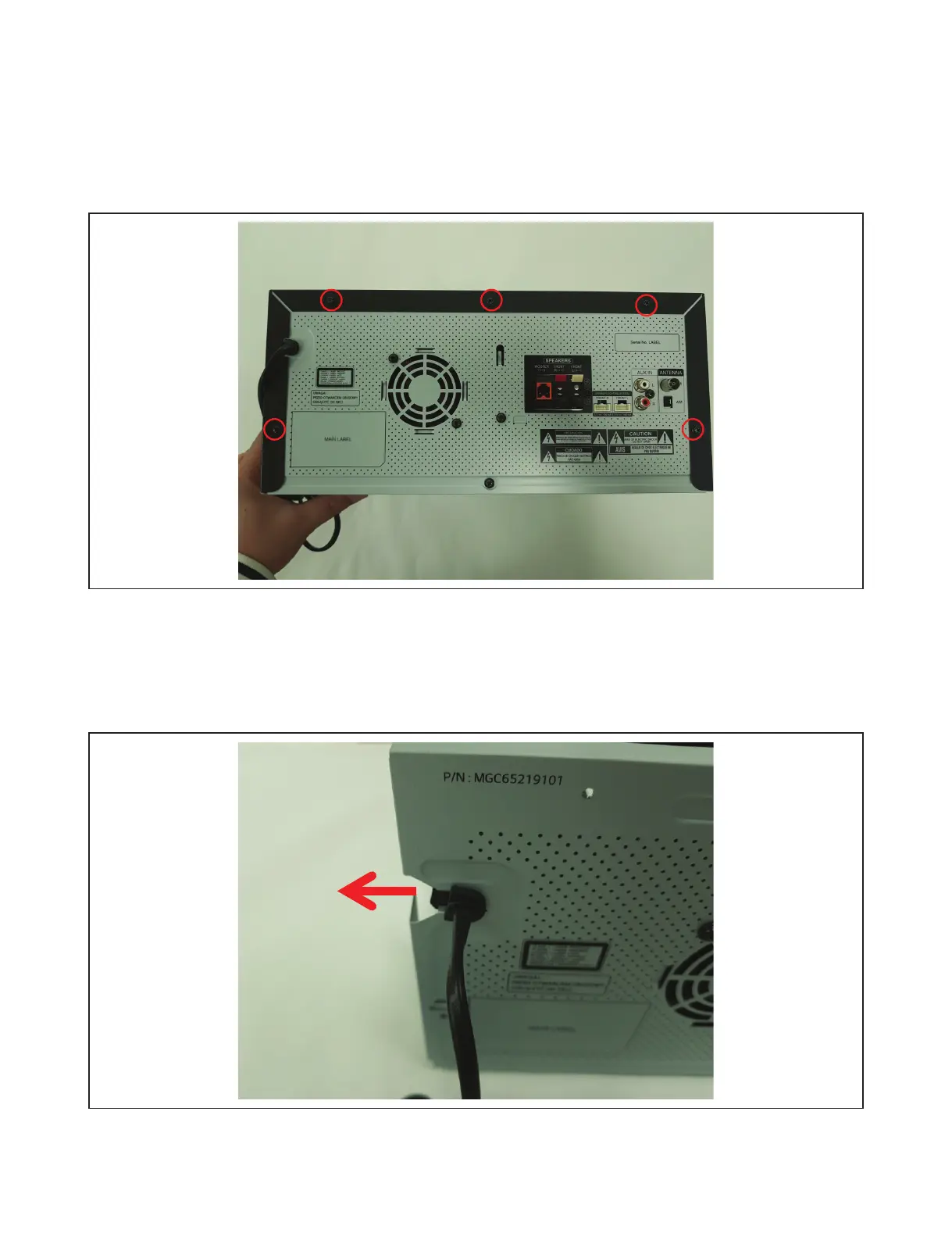

DISASSEMBLY INSTRUCTIONS
Figure D1
Figure D2-1
1. Case
1-1) Remove the 5 Screws.
1-2) Remove the Case.
2. Power Cord
2-1) Pull the Power Cord in the direction of Figure D2-1.
20
22
Table of Contents
Table of Contents
3
Servicing Precautions
4
Esd Precautions
6
Hidden Key Mode
7
Hidden Key Mode Table
7
Hidden Key Mode Description
7
Program Download Guide
8
Fota Update Step Using Bt App
10
Specifications
12
Exploded Views
16
Cabinet and Main Frame Section
16
Packing Accessory Section
18
Speaker Section
19
Disassembly Instructions
21
Assembly Instructions
30
One Point Repair Guide
39
Power
39
Booting When Power on the Set
41
Vfd Is Not Displayed When Power on the Set
42
Operation of MD
43
Sound
48
Electrical Troubleshooting Guide
53
Power (Smps)
53
Mcs Part Check
56
Ic503 Check
56
Fld Display Check
57
Pwm Modulation Check
58
Power Amp Part Check
59
Aux / Tuner Function Check
60
Tuner Function Check
60
CD Function
61
Double Usb Function
62
Waveforms of Major Check Point
63
Wiring Diagram
64
Block Diagrams
65
System Block Diagram
65
Power Block Diagram
66
Circuit Voltage Chart
67
Connectors
67
Capacitors
67
Ics
67
Printed Circuit Board Diagrams
68
Smps P.C.board
68
Main P.C.board
69
Front P.C.board
70
MIC P.C.board Diagram
71
