ONE POINT REPAIR GUIDE

NO OPERATION OF MD

When no sound output in the CD function, you can not listen to music reading data from a CD disc if

the servo motors in MD don’t work. This step is for checking the TRAY OPEN / CLOSE MOTOR among

them.

4-3. TRAY OPEN / CLOSE MOTOR

4-3-1. Solution

Please check and replace IC400, IC401 on MAIN board.

4-3-2. How to troubleshoot (Countermeasure)

1) Check MOT_OPEN & MOT_CLOSE signals from Pin P4, L4 of IC500 to IC400.

 If no signal, check VDD_CORE and DVCC_3.3V to IC401.

2) Check LOAD± from IC400 to CN401 for driving the tray open / close motor. It is about 3.85 Vp-p.

 If no signal, check M_5V to IC400. If it has any trouble, replace it with a new one.

3) Check if the FFC cable is solidly connected between CN401 and MD.

4) Check the MD.

 If the tray motor is sort-circuit or has any trouble, it can not open or close the tray.

Please check the function after changing another MD.

4-3-3. Service hint (Any picture / Remark)

LO- TO CN401

LO+ TO CN401

MOT_OPEN

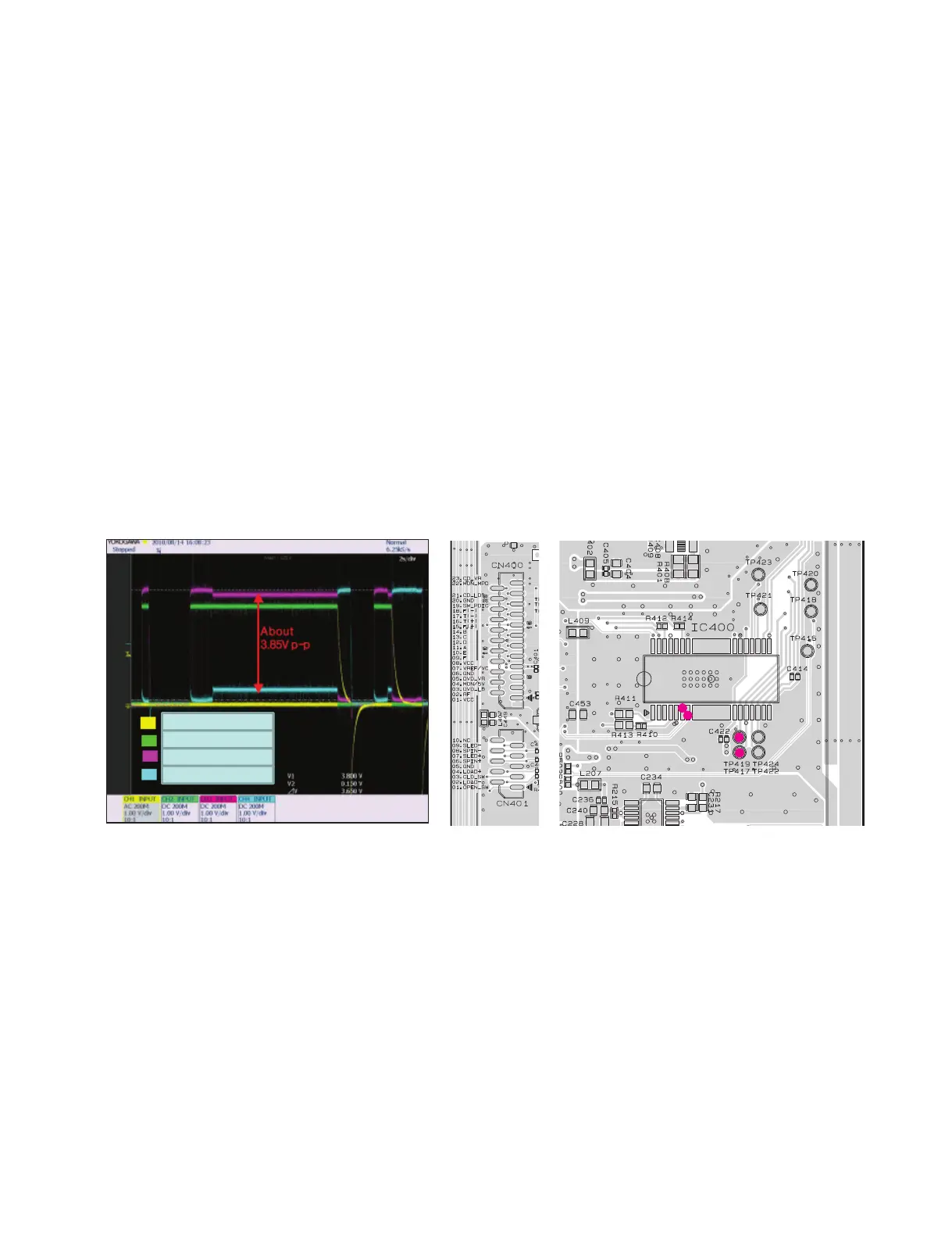

< Waveform for driving

TRAY open / close motor >

< MAIN

board top

view >

< MAIN board bottom view >

CN401

IC400

MOT_CLOSE : pin6 to IC500

MOT_OPEN : pin7 to CN401

LOAD+ : pin9 to CN401(pin4)

LOAD- : pin10 to CN401(pin2)
