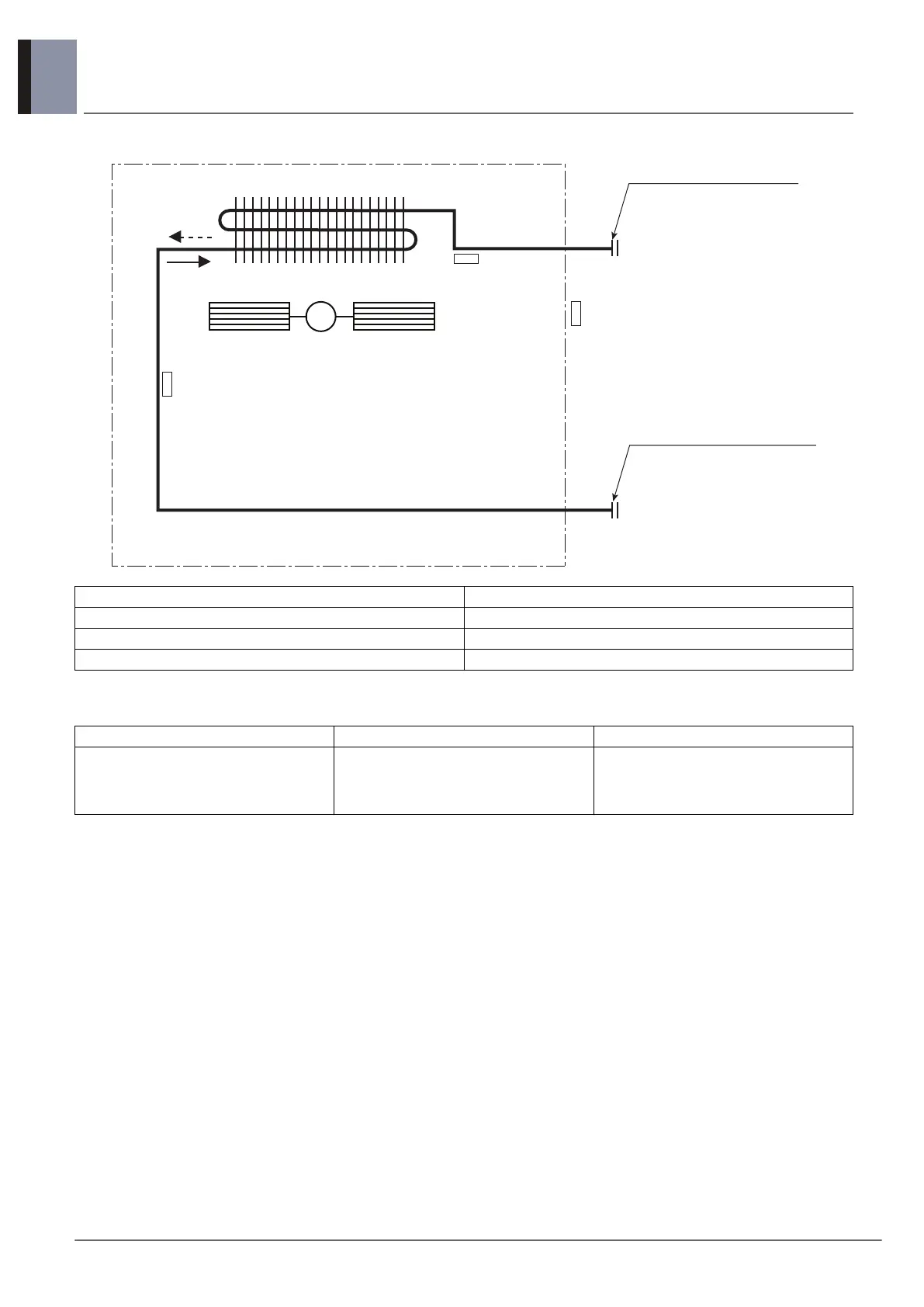

4. Piping diagrams
12
MULTI/SINGLE Indoor unit
Ceiling concealed duct - Middle static pressure
 Models : ABNW-GM2A0 [CM- N24], ABNW-GM3A0 [CM- N34]
 Refrigerant pipe connection port diameters
[Unit : mm]
Description PCB Connector
Thermistor for suction air temperature CN-ROOM
Thermistor for evaporator inlet temperature CN-PIPE / IN
Thermistor for evaporator outlet temperature CN-PIPE / OUT
Model Gas Liquid
ABNW36GM2A0 [CM36 N24]
ABNW42GM2A0 [CM42 N24]
ABNW48GM3A0 [CM48 N34]
ABNW60GM3A0 [CM60 N34]
Ø15.88 Ø9.52
Sirocco Fan
Heat exchanger
Gas pipe connection port
(flare connection)
Liquid pipe connection port
(flare connection)
Cooling
Heating
M
Thermistor for
suction air
temperature
Thermistor for
evaporator outlet
temperature
Thermistor for
evaporator inlet
temperature
