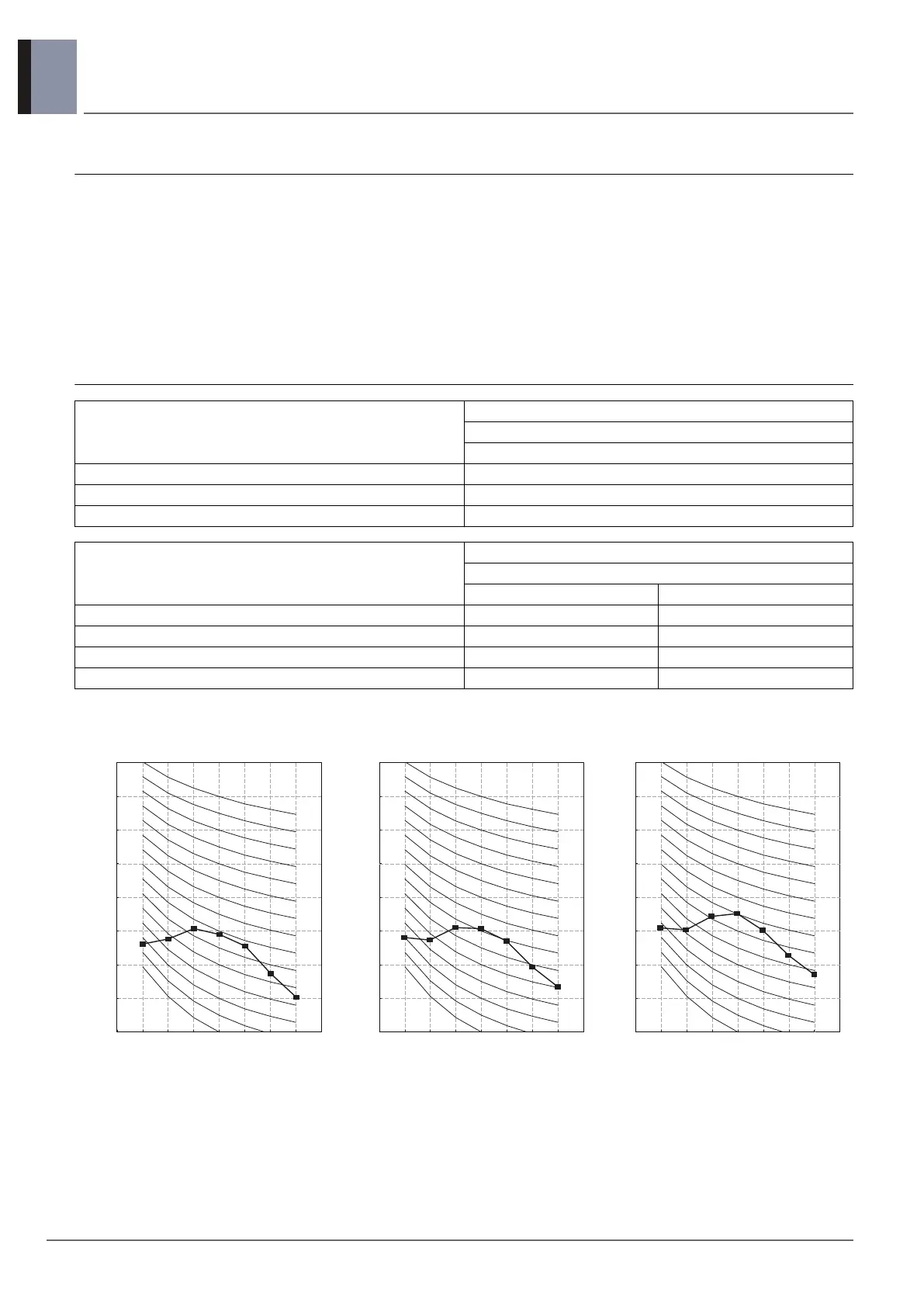

MULTI/SINGLE Indoor unit
7. Sound levels
29
Ceiling concealed duct - Middle static pressure
7.2 Sound power level
Note
1. Operating condition
Power source : 220-240V 50 Hz / 220V 60 Hz
Cooling : Indoor temperature (27°C DB, 19°C WB), Outdoor temperature (35°C DB, 24°C WB)
Heating : Indoor temperature (20°C DB, 15°C WB), Outdoor temperature (7°C DB, 6°C WB)
External static pressure is according to “Standard mode” value. Refer the specifications.
2. Reference acoustic intensity 0dB = 10E-6μW/m
2
3. Sound level will vary depending on a range of factors such as the construction (acoustic absorption coefficient)
of particular room in which the equipment in installed.
External Static Pressure 2.5(25) [mmAq(Pa)]
Model
Sound Pressure Levels (dB(A),H-M-L)
External Static Pressure [mmAq(Pa)]
2.5(25)
ABNW18GM1A0 [CM18 N14] 59
ABNW24GM1A0 [CM24 N14] 60
ABNW30GM1A0 [UM30 N14] 62
Model
Sound Pressure Levels (dB(A),H-M-L)
External Static Pressure [mmAq(Pa)]
4(39) 5(49)
ABNW36GM2A0 [UM36 N24] 60 -
ABNW42GM2A0 [UM42 N24] - 62
ABNW48GM3A0 [UM48 N34] - 65
ABNW60GM3A0 [UM60 N34] - 66
ABNW18GM1A0 [CM18 N14] ABNW24GM1A0 [CM24 N14] ABNW30GM1A0 [UM30 N14]
Octave Band Center Frequency (Hz)
Sound Power Level (0dB = 10E-6μPa)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
Octave Band Center Frequency (Hz)
Sound Power Level (0dB = 10E-6μPa)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
Octave Band Center Frequency (Hz)
Sound Power Level (0dB = 10E-6μPa)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
