MULTI/SINGLE Indoor unit
8. Installation
35
Ceiling concealed duct - Middle static pressure

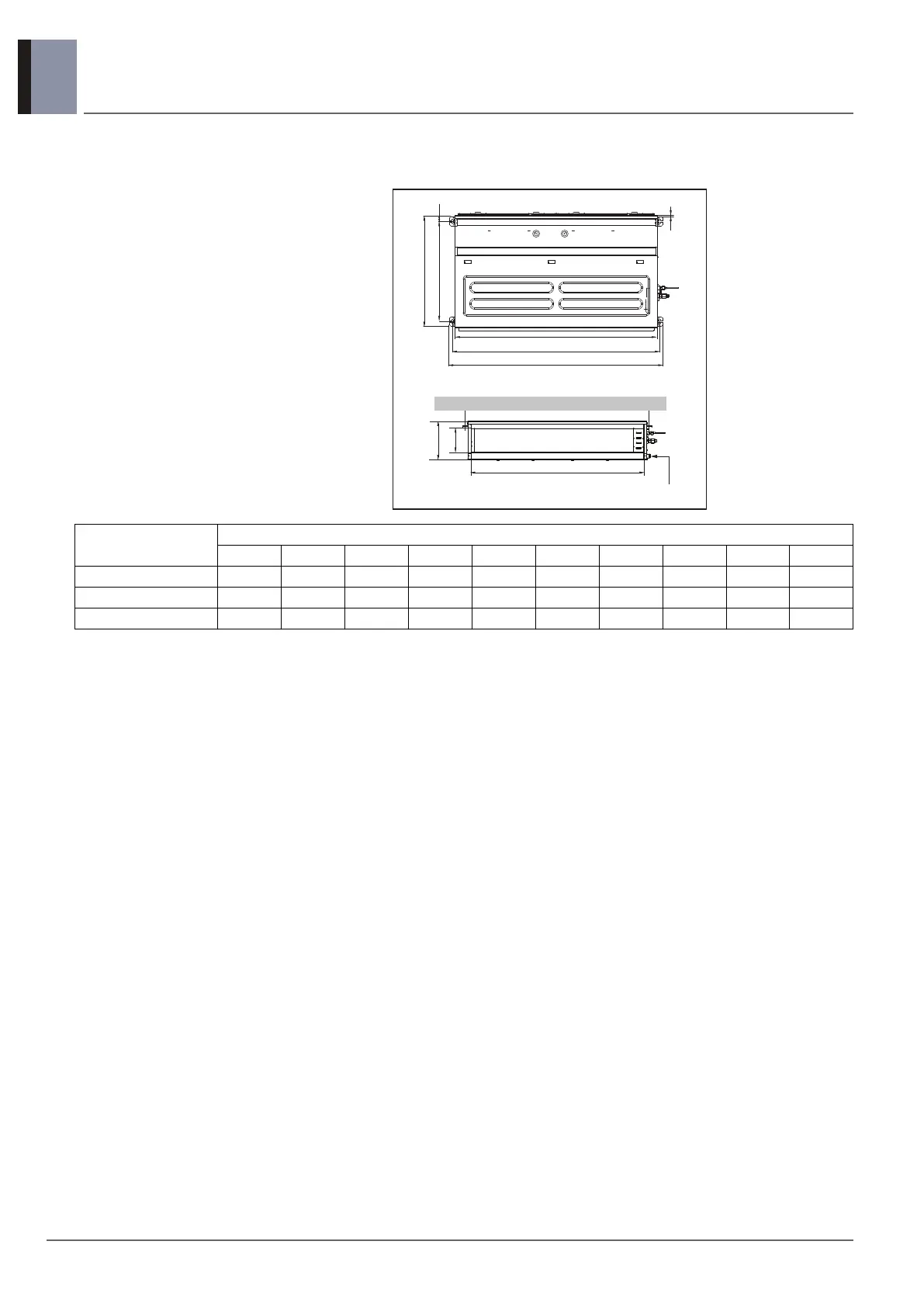

Installation dimension of Indoor unit
M1/M2/M3 Chassis
Chassis name
Dimension (mm)
ABCDEFGH I J
M1 933.4 971.6 619.2 700 30 270 15.2 858 201.4 900
M2 1283.4 1321.6 619.2 689.6 30 270 15.2 1208 201.4 1250
M3 1283.4 1321.6 619.2 689.6 30 360 15.2 1208 291.4 1250
C
E
G
D
F
I
A
J
B
H
Drain hole
