3-20

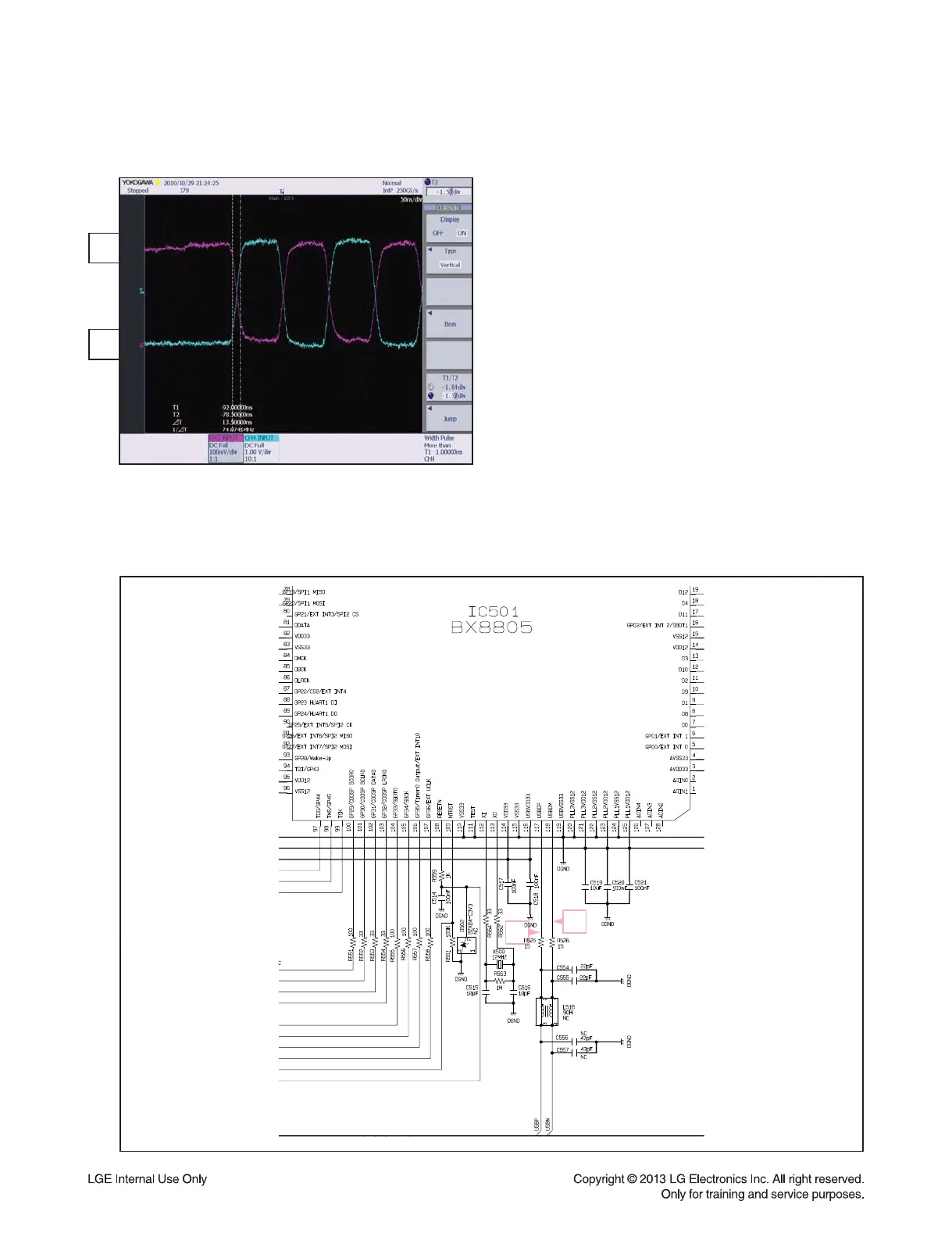

5. USB
Figure 5-1.
USB D+/D-
IC501 Pin117, 118
D+
D-
26
25
25
26
38
40
Table of Contents
Table of Contents
3
Servicing Precautions
4
Esd Precautions
6
Micom Hidden Key Mode
7
Service Information for Eeprom
8
Program Download Guide
9
Audio Program
9
CD Program
10
Touch Program
11
Eq Program
12
Specifications
13
Disassembly Instructions
15
Side Case Part
15
Exploded Views
16
Cabinet and Main Frame Section
16
Deck Mechanism Section (Sdm-01Ba)
17
Packing Accessory Section
18
Speaker Section
19
One Point Repair Guide
21
Power Problem
21
Speaker no Audio Output
22
Usb no Output
23
Booting
24
Electrical Troubleshooting Guide
25
Power (Smps)
25
Μ-COM PART CHECK-1
26
Μ-COM PART CHECK-2
26
Fld Display Check
27
Touch Part Check
28
Amp Part Check
29
Tuner Function Check
30
Dab Function Check (Optional)
31
Bluetooth Function Check (Optional)
31
Usb Function Check
32
CD Function Check
33
Waveforms
34
Servo
34
Motor Drive
35
Audio Path
36
Adc
38
Usb
39
Crystal
40
Wiring Diagram
42
Block Diagram
43
Circuit Diagrams
44
Smps Circuit Diagram
44
Main - Micom Circuit Diagram
45
Main - Mpeg Circuit Diagram
46
Main - Rf Servo Circuit Diagram
47
Main - I/O & Adc Circuit Diagram
48
Main - Pwm & Amp Circuit Diagram
49
Main - DC/DC Circuit Diagram
50
Vfd Circuit Diagram
51
Touch Circuit Diagram
52
Top Jack Circuit Diagram
53
Circuit Voltage Chart
54
Ics
54
Capacitors
55
Connectors
55
Printed Circuit Board Diagrams
56
Smps P.C.board
56
Main P.C.board
58
Vfd/ Touch/ Top Jack P.C.board
59
4
Based on 1 rating
Ask a question
Give review
