LG CM4330 - Printed Circuit Board Diagrams; Smps P.C.board

3-59 3-60
PRINTED CIRCUIT BOARD DIAGRAMS

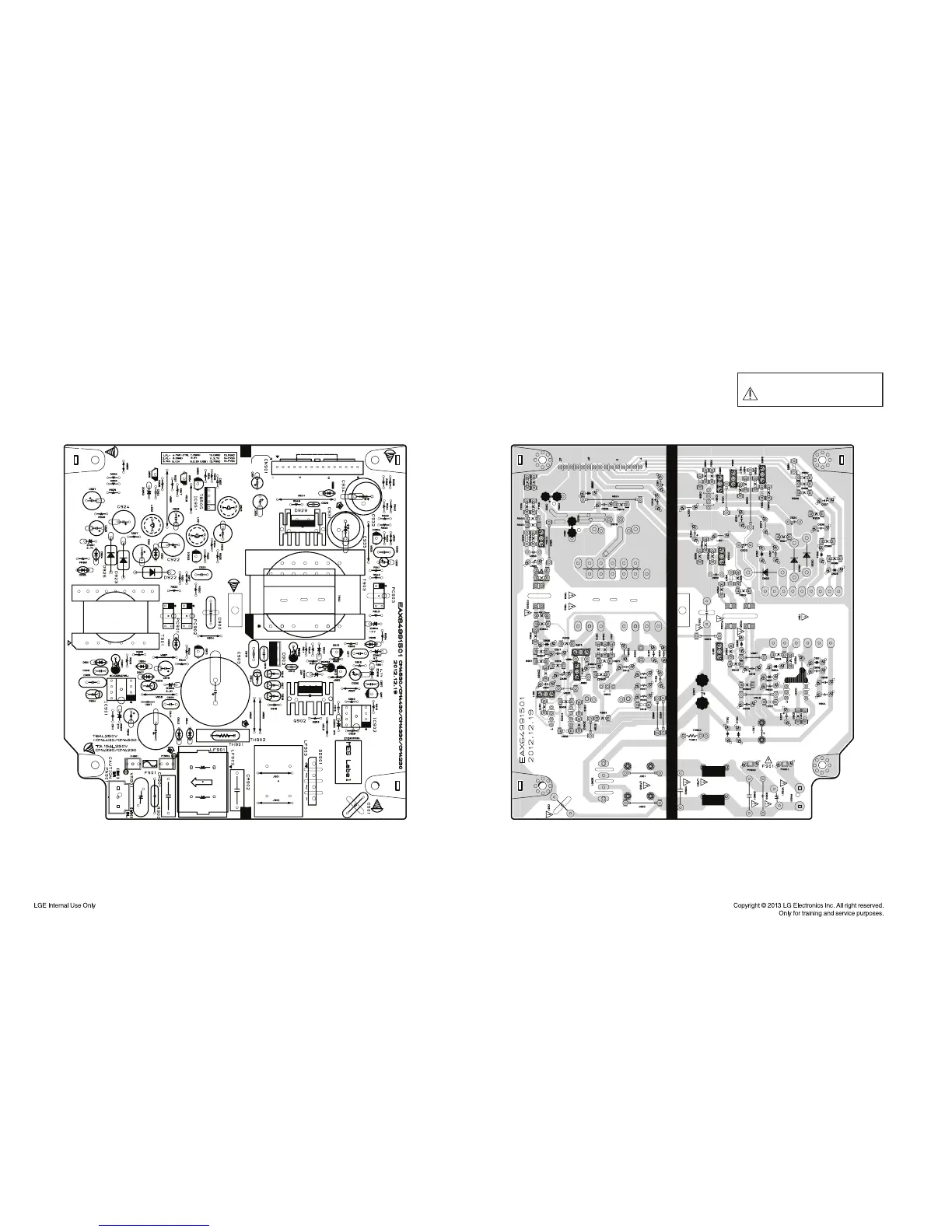

1. SMPS P.C.BOARD
(TOP VIEW) (BOTTOM VIEW)
NOTE) Warning
Parts that are critical with respect to risk
of fire or electrical shock.
