3-7
ONE POINT REPAIR GUIDE
NO BOOTING IN CD/USB FUNCTION
After you turn on power key and displayed message in the following order
(HELLO --> VOL XX --> CD or USB) on VFD,
it will not display other message on VFD, and it will not boot-up normally.
4-2. CRYSTAL (X500)
4-2-1. Solution
Please check and replace X500 on MAIN board.
4-2-2. How to troubleshoot (Countermeasure)
1) If 3.3 V & 1.2 V is normal, check Reset ‘High’ of IC501 pinT12 on MAIN board.
If MAIN_RESET isn’t high, check MICOM (IC101) pin40.
2) If MAIN_RESET is high, check the soldering status of 24 MHz crystal (X500).
3) If the crystal (X500) doesn’t oscillate, check R508, R509, C502, C503 around crystal (X500).
If there’s no defective component, then replace X500.

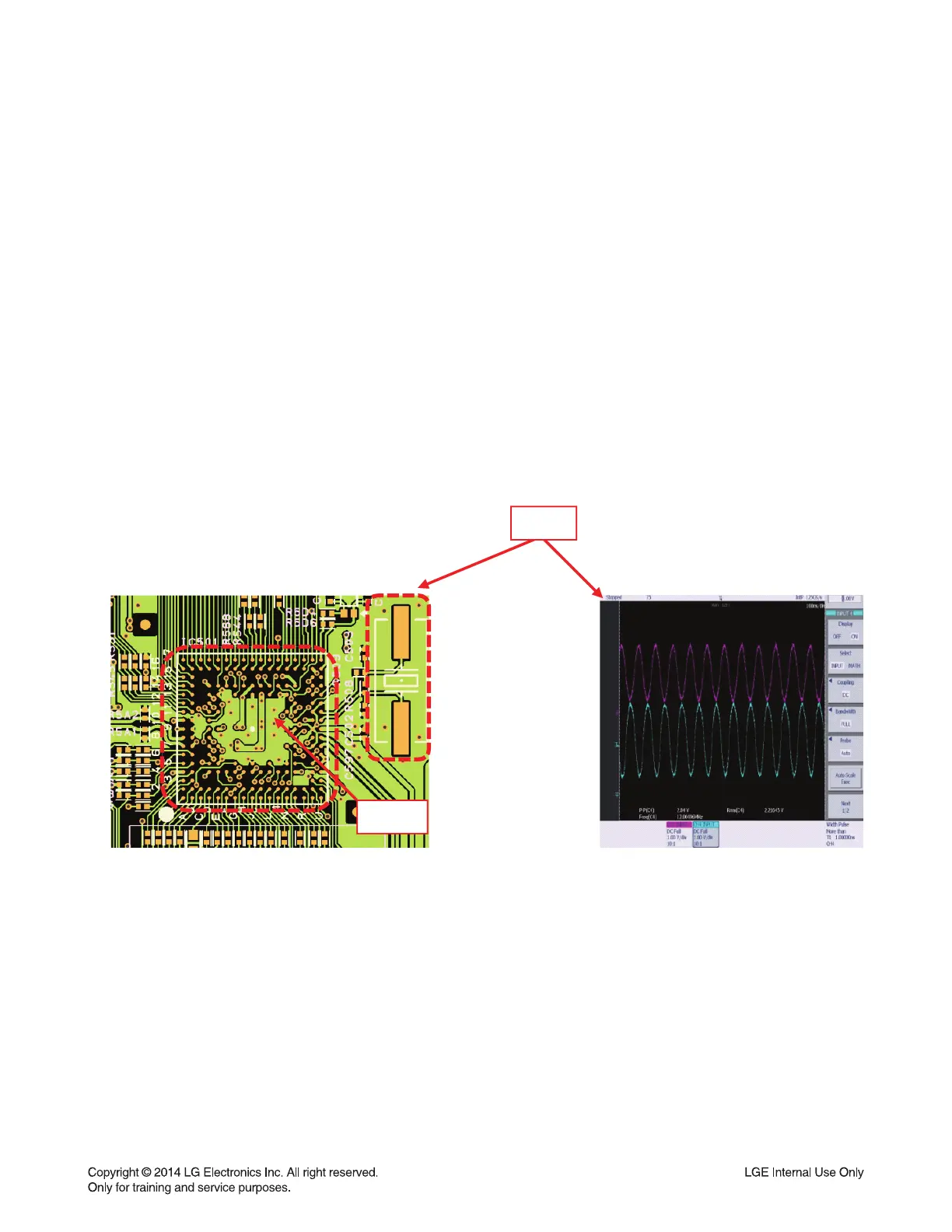

4-2-3. Service hint (Any picture / Remark)
p
v
IC500
X500
< Signal check point >
< Signal waveform >
To Next Page
