WAVEFORMS OF MAJOR CHECK POINT
1. WAVEFORM OF SERVO

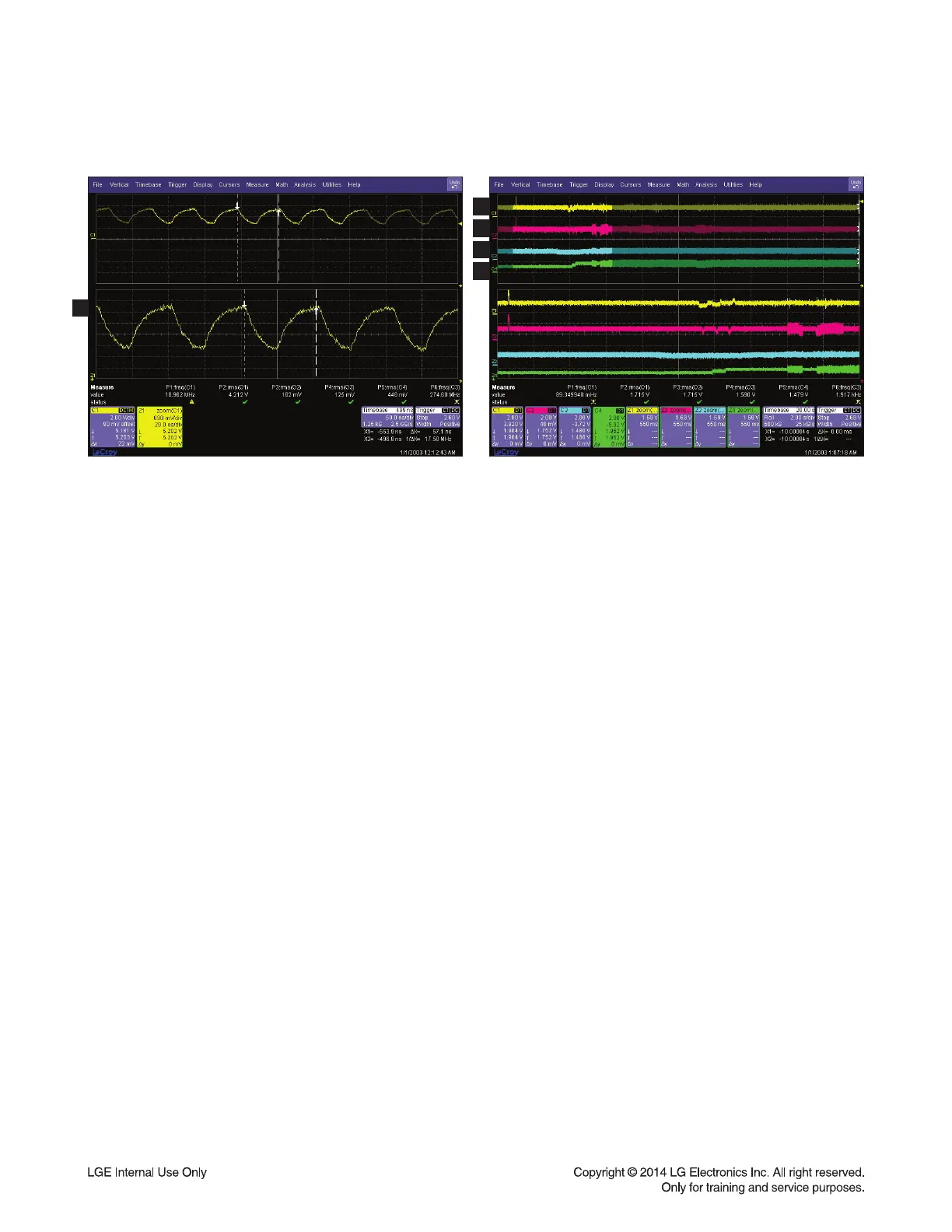

Figure 1-1. CD-16M
(IC407 Pin31)
Figure 1-2. SERVO-FE, TE, FOD, RF
(IC407 Pin61, 62, 63 / IC408 Pin1)
