LG CMS9540F Service Manual

3-34

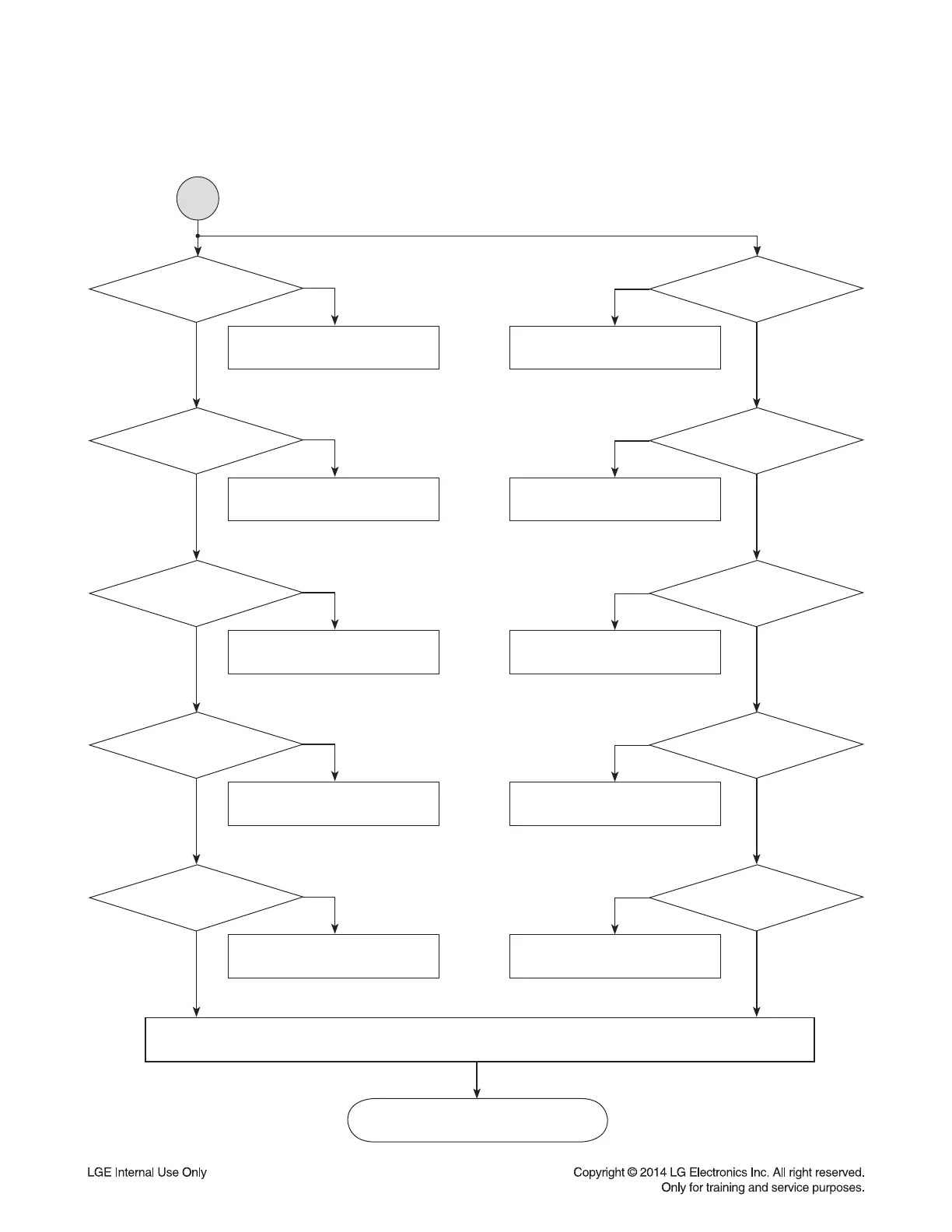

ELECTRICAL TROUBLESHOOTING GUIDE
B
Check speaker cable connection.
Check IC600.
Check
IC700, IC701, IC704, IC705.
Check IC601, IC602.
Check SMPS.
Check Q701,Q702,Q703,Q704
Q714,Q716,Q719,Q720.
Check IC600.
Check
IC702, IC703, IC706, IC708.
Check IC603, IC604.
Check SMPS.
Check Q704,Q705,Q708,Q709
Q721,Q722,Q723,Q724.
Pin28,29,35,36
of IC600, FL/FR± signal
OK?
Pin13 of
IC700,IC701,IC704,IC705
FL/FR audio signal
OK?
IC601, 602
FL/FR audio signal
OK?
±40 V, -28 V, ±5 V
power voltage OK?
Q700,
Q701,Q702,Q703
Q714,Q716,Q719,Q720
OK?
Pin26,27,31,32
of IC600, SWL/SWR± signal
OK?
Pin13 of
IC702,IC703,IC706,IC708
SWL/SWR audio signal
OK?
IC603,604
SWL/SWR audio signal
OK?
±40 V, -28 V, ±5 V
power voltage OK?
Q704,
Q705,Q708,Q709
Q721,Q722,Q723,Q724
OK?
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
OK
