3-39

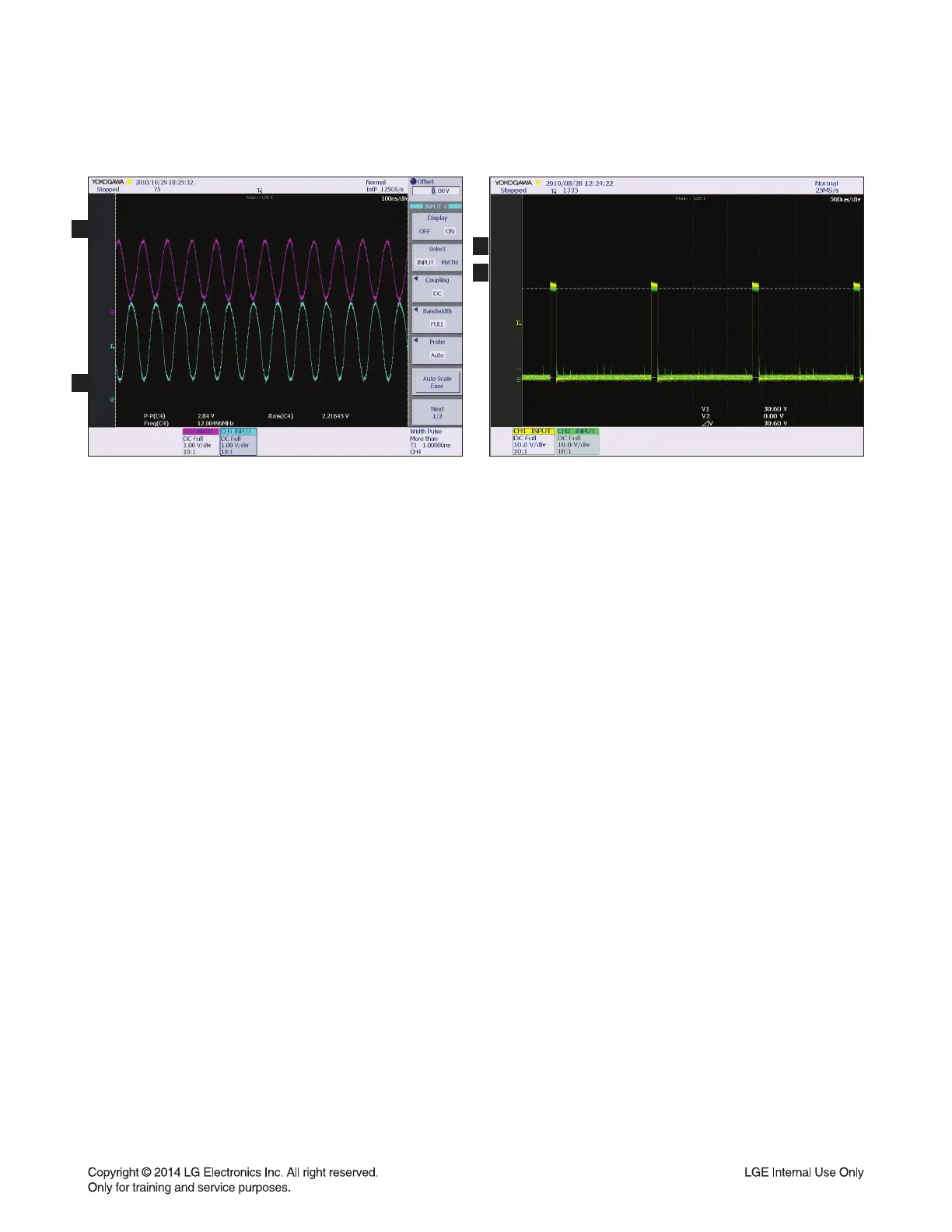

6. WAVEFORM OF CRYSTAL 7.
WAVEFORM OF VFD GRID CURRENT DRIVER
Figure 6. 12 MHz Crystal
(IC501 Pin27, 28)
Figure 7.
XI
CH1:R327(TP304)
CH2:Q301 Emitter
XO
