LG CT24F Installation Manual

THE INDOOR UNIT INSTALLATION
31
ENGLISH

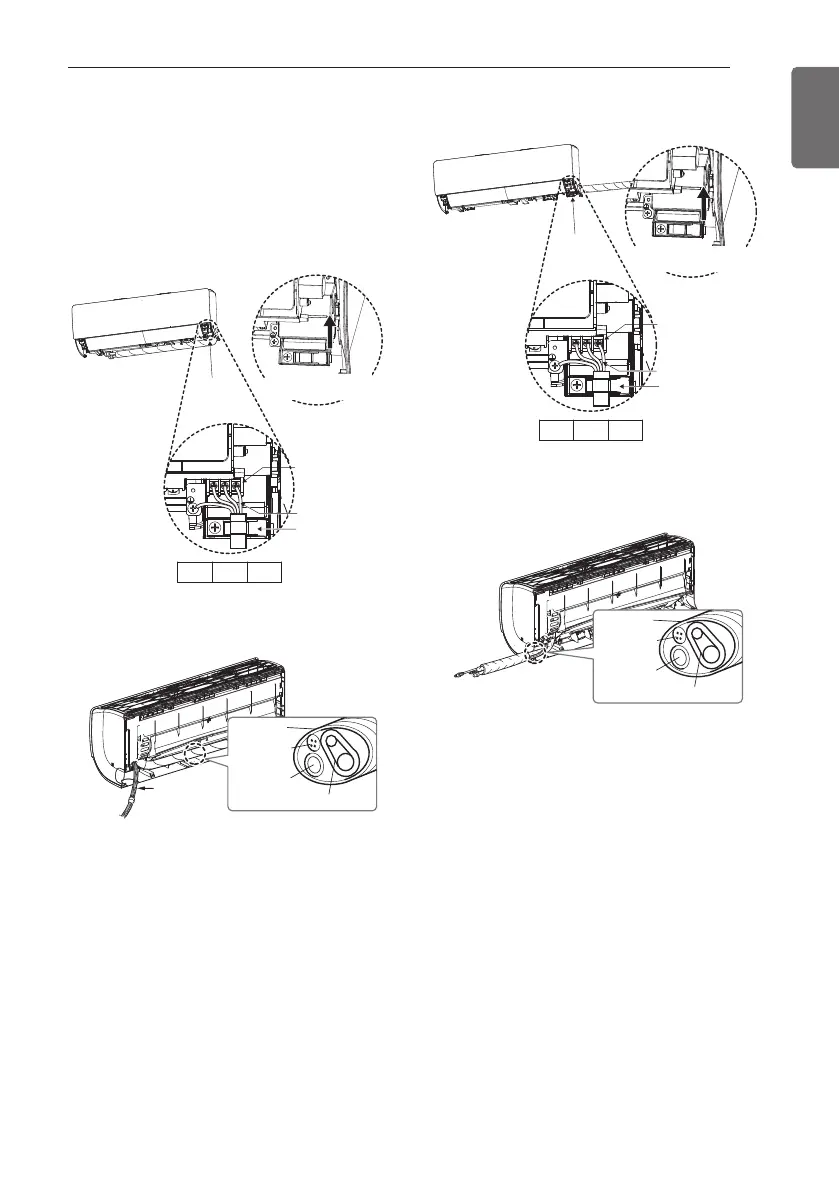

Piping
1 Insert the connecting cable through the
bottom side of indoor unit and connect the
cable (You can see detail contents in
'Connecting the cables' section)
<Left side piping>
<Left side piping>
View
Terminal block
Connecting cable
Cable retainer
Slide up the metal
plate cover
1(L) 2(N) 3(C)
<Right side piping>
<Right side piping>
2 Secure the cable onto the control board
with the cable retainer.
3 Tape the tubing pipe, drain hose and the
connection cable. Be sure that the drain
hose is located at the lowest side of the
bundle. Locating at the upper side can
cause overflow from the drain pan through
the inside of the unit.
View
Terminal block
Connecting cable
Cable retainer
Slide up the metal
plate cover
Drain hose
Connecting pipe
Connecting
cable
Tape
Drain hose
Connecting pipe
Connecting
cable
Tape
Drain hose
1(L) 2(N) 3(C)
