32
THE INDOOR UNIT INSTALLATION
ENGLISH

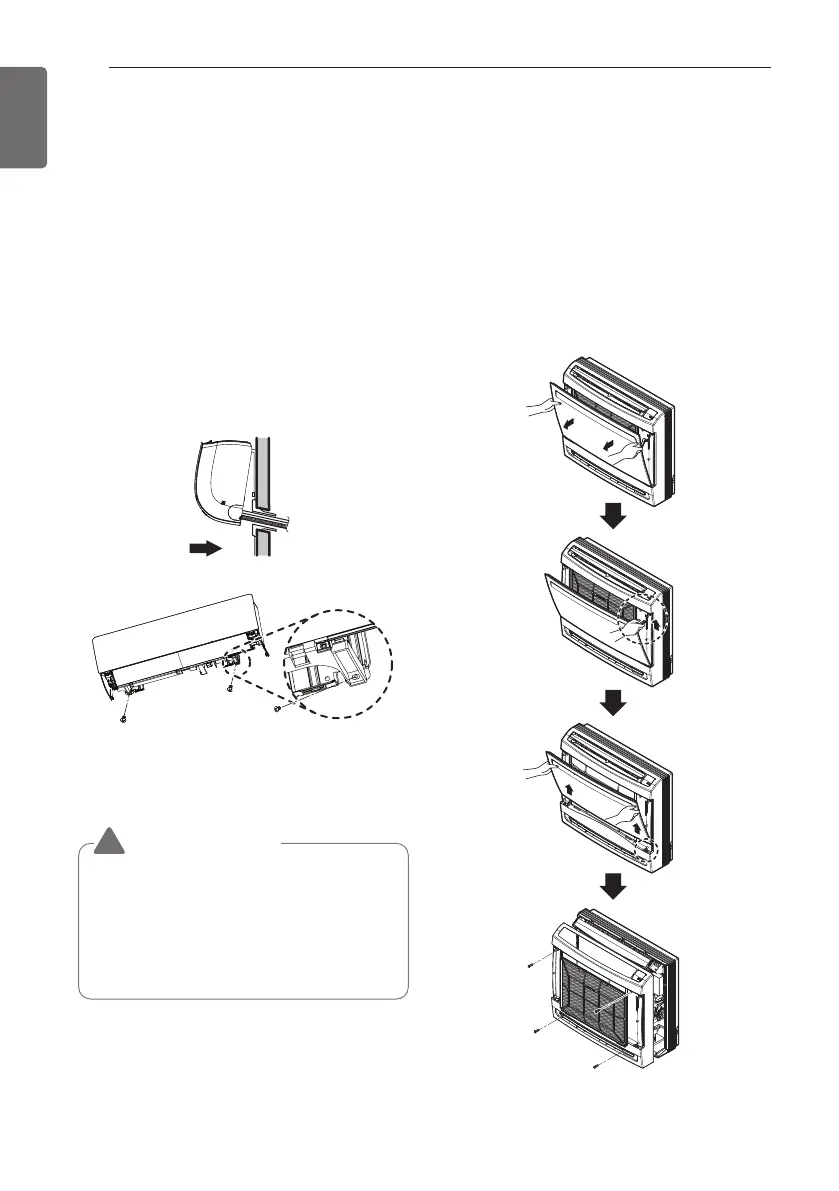

Finishing the indoor unit
installation
1 Mount the tubing holder in the original
position.
2 Ensure that the hooks are properly seated
on the installation plate by moving it left
and right.
3 Press the lower left and right sides of the
unit against the installation plate until the
hooks engage into their slots (clicking
sound).
4 Finish the assembly by screwing the unit
to the installation plate by using two
pieces of type "C" screws. And assemble a
chassis cover.
* The feature can be changed according to
type of model.
CAUTION
!
The indoor unit can be dropped from the
wall, the indoor unit is not screwed
correct position on the install plate.
To avoid the gap between the indoor unit
and wall , screw the indoor unit to the
install plate correctly.
Type 'C' screw
[Console]
Preparation / Removing front panel
1 Open the front grille by pulling forward
2 Then pull out the link of grille from groove
in front panel.
3 Then pull out 2 hinges of grille from
grooves in front panel.
4 Then remove 4 screws, dismount the front
panel while pulling it forward.
To Next Page
