THE INDOOR UNIT INSTALLATION
37
ENGLISH

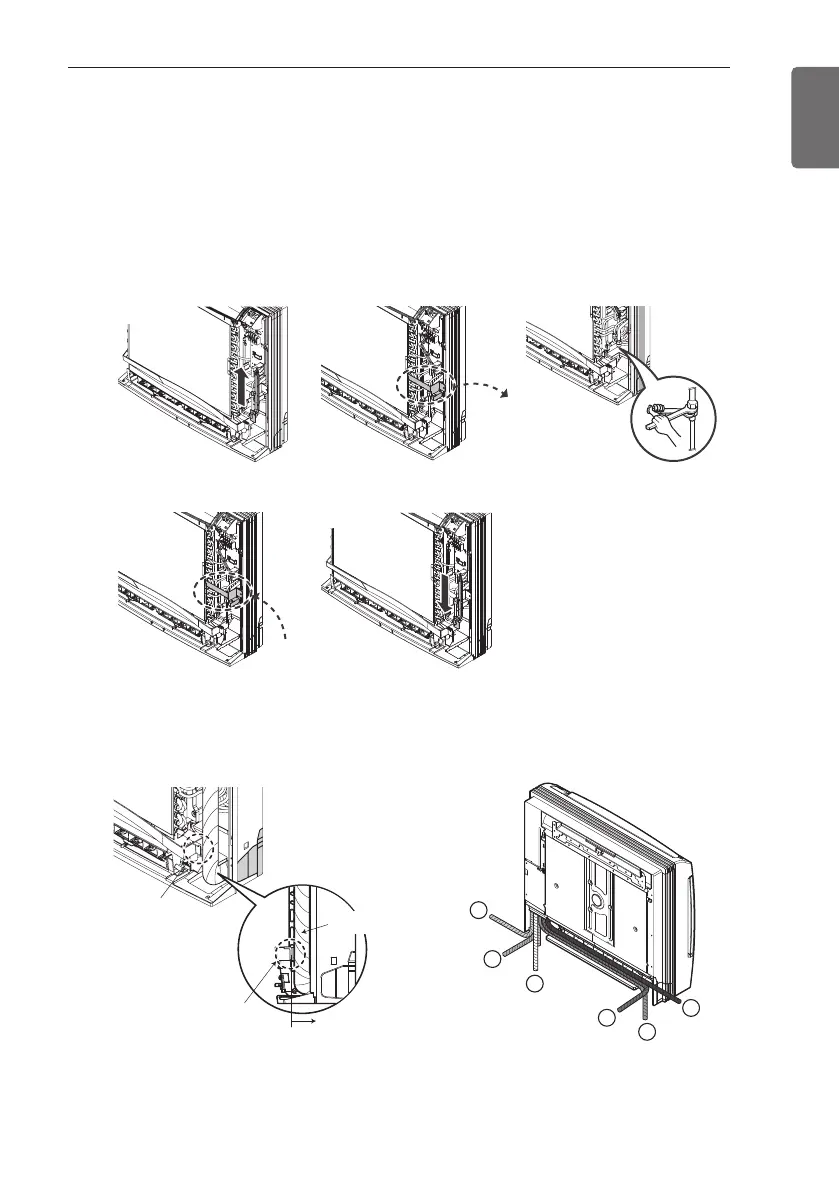

Connecting the Piping
When you connect the refrigerant pipe, it is easier that you connect the gas pipe first.
1 Hold up the Sensor Link.
2 Separate the Pipe Bracket (2 screws)
3 Connect the refrigerant pipe.
4 Assemble the Pipe Bracket (2 screws)
5 Put down the Sensor Link
6 After connecting, check the pipe arrangement as per illustration.
7 The piping can be arranged in six ways as shown in the illustration below.
12
45
3
3
1
2
6
5
4
Pipe Guide
Pipe Guide
Connecting Pipe must be placed inner
than the pipe guide.
Connecting Pipe
