LG DA-3520 - Section 5. Exploded Views

5-1 5-2
351
455
274
251
252
254
250
261
272
354
454
276
277
289
300
352
A48
TUNER
302
353
A41
262
355
A00
306
306
310
305
A47
A40
301
273
275
253

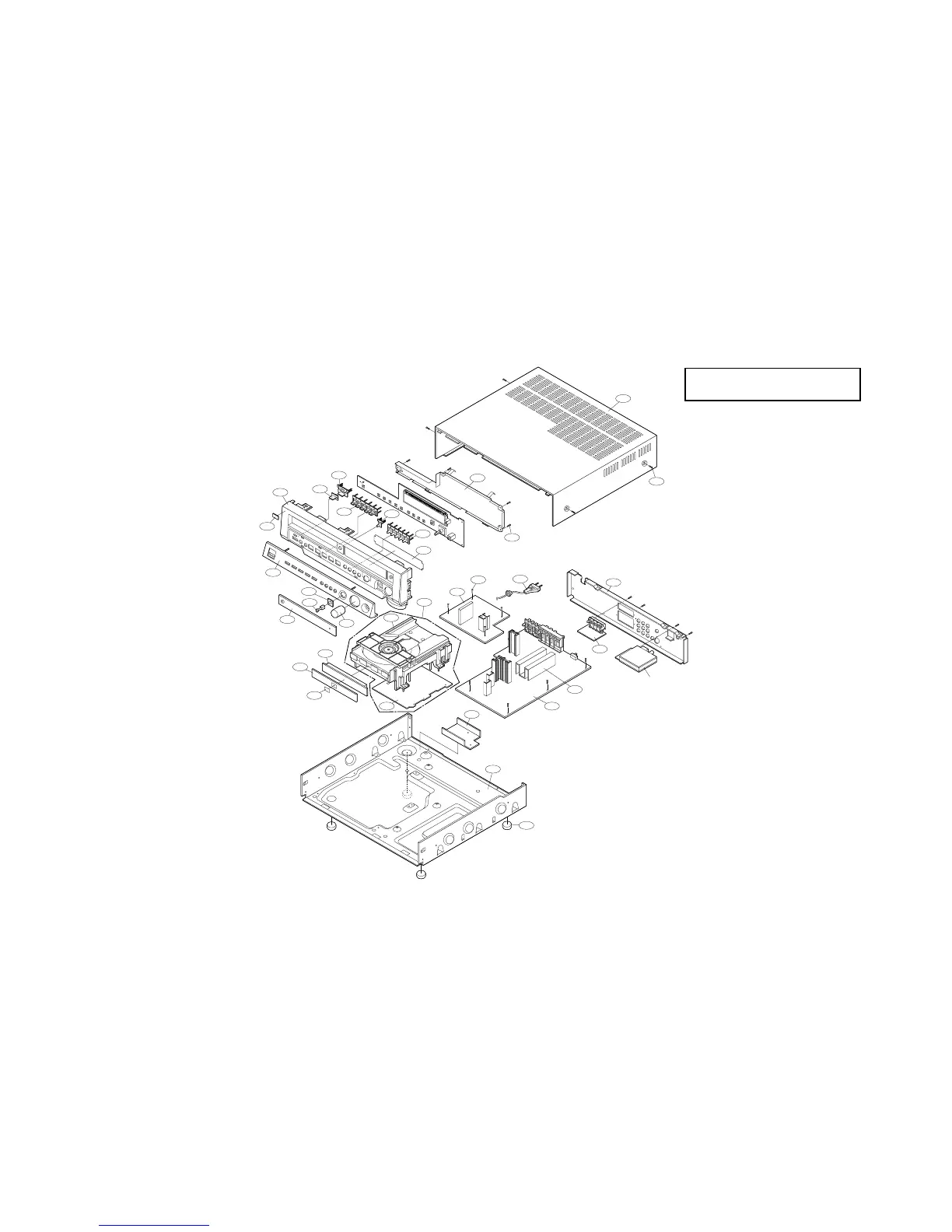

SECTION 5. EXPLODED VIEWS
• CABINET AND MAIN FRAME SECTION
NOTE) Refer to “SECTION 7 REPLACEMENT
PARTS LIST” in order to look for the
part number of each part.
