LG DELUXE HIGH WALL MINI SPLIT - Outdoor Unit

Maintenance and Service
24 Deluxe High Wall Mini Split
3
2
Air filter
(Side)
(Rear)
Air outlet
vents
Air intake
vents
Piping
3
2
Air filter
Triple Deodorizing Filter
Outdoor Unit
The heat exchanger coils and panel vents of
the outdoor unit should be checked regularly.
If clogged with dirt or soot, the heat exchanger
and panel vents may be professionally steam cleaned.
Dirty or clogged coils will reduce the
operating efficiency of the system and cause
higher operating costs.
NOTICE

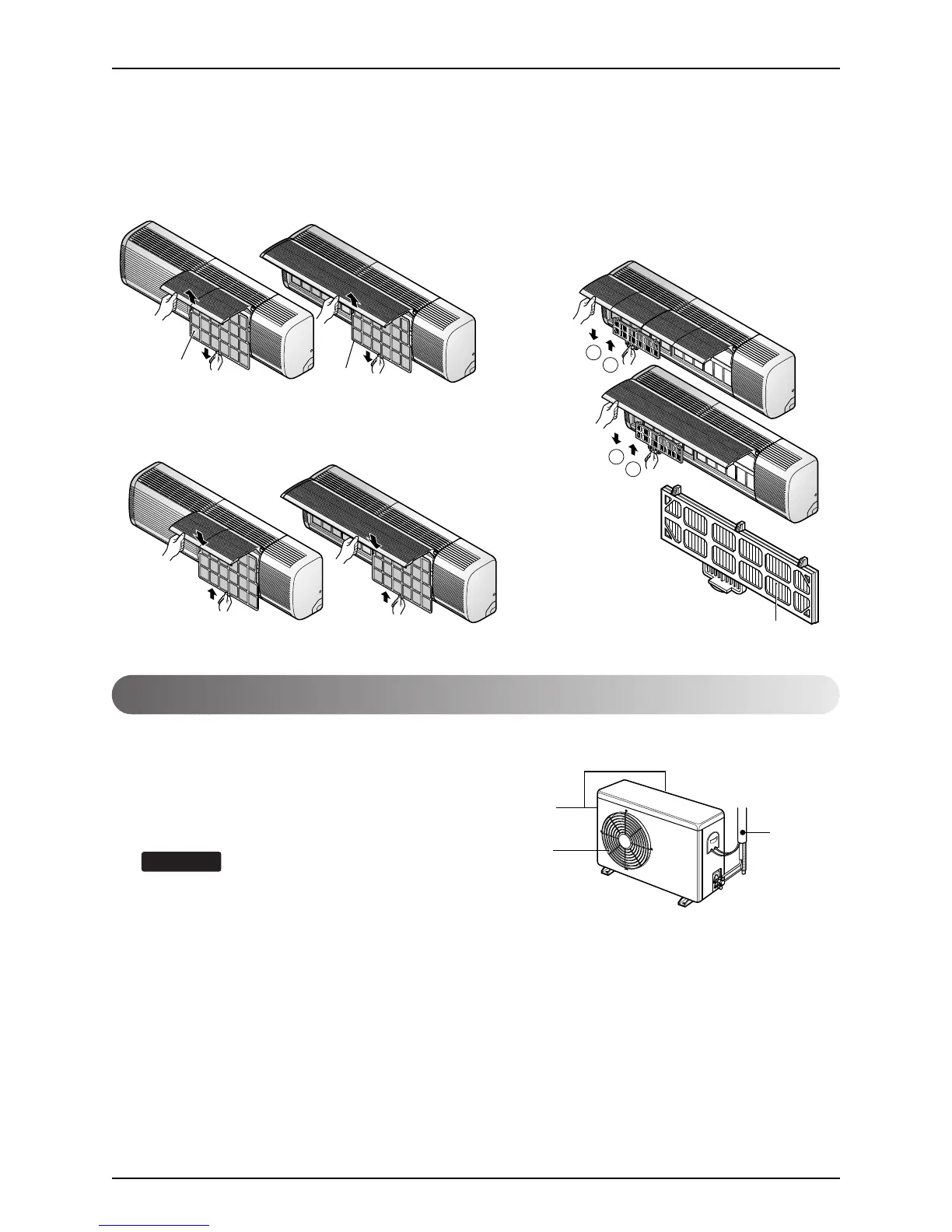

Replacement of Purifying Filter(Option)
• Recomended use period : About 2 years
1. Open front panel and remove air filters.
4. Reinsert air filters and close front panel.
2. Remove air purifying filters.
3. Insert new air purifying filters.
