LG DLE4970 E Series - WIRING DIAGRAM; ELECTRIC DRYER WIRING DIAGRAM; GAS DRYER WIRING DIAGRAM

LG DLE4970 E Series
61 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
15
7
~pypunGkphnyht
X\
Label all wires prior to disconnection when servicing controls. Wiring
errors can cause improper and dangrous operation. Verify proper
operation after servicing.
CAUTION

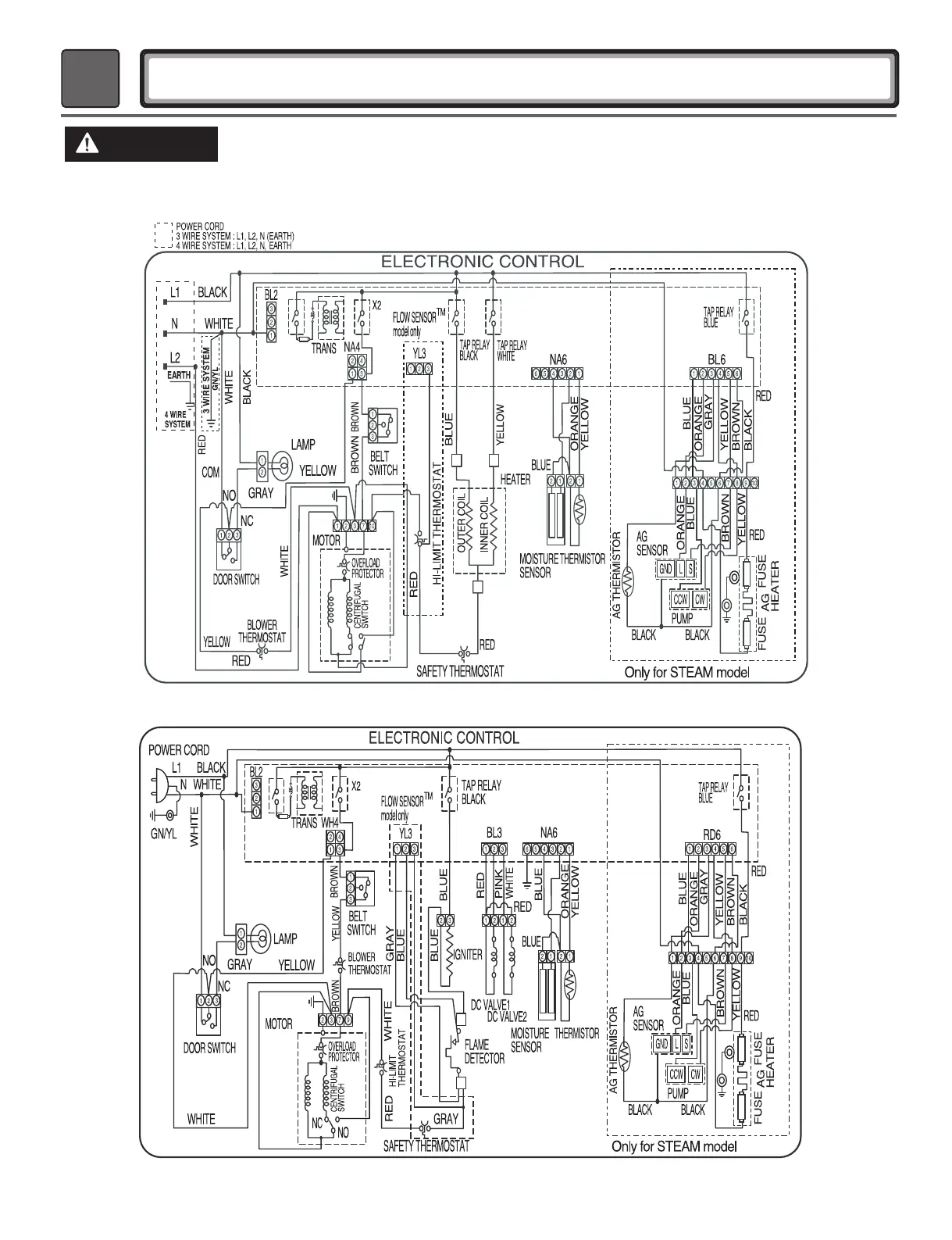

ELECTRIC DRYER WIRING DIAGRAM
GAS DRYER WIRING DIAGRAM
