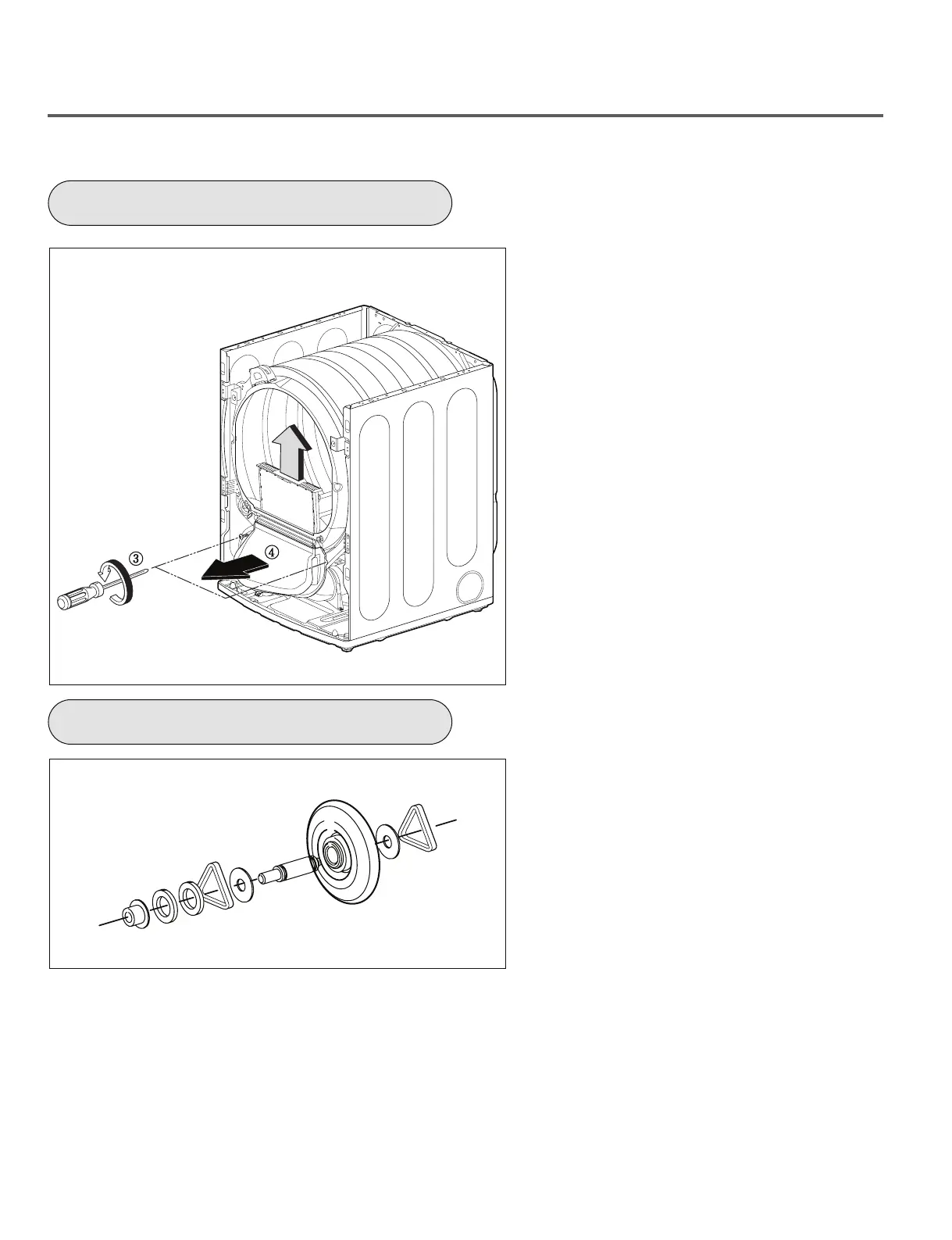

AIR DUCT
ROLLERS
1.
Disassemble the top plate.
2.
Remove the cabinet cover .
3.
Remove the filter and 2 screws.
1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum
[Front ].
3.
Remove the drum assembly and tub drum [Rear].
4.
Disconnect the air duct from the tub drum [Front ].
4.
Remove the air duct.
5.
Remove the roller from the tub drum [Front ] and
tub drum [Rear ].
※
Φ Φ
Φ
Φ
