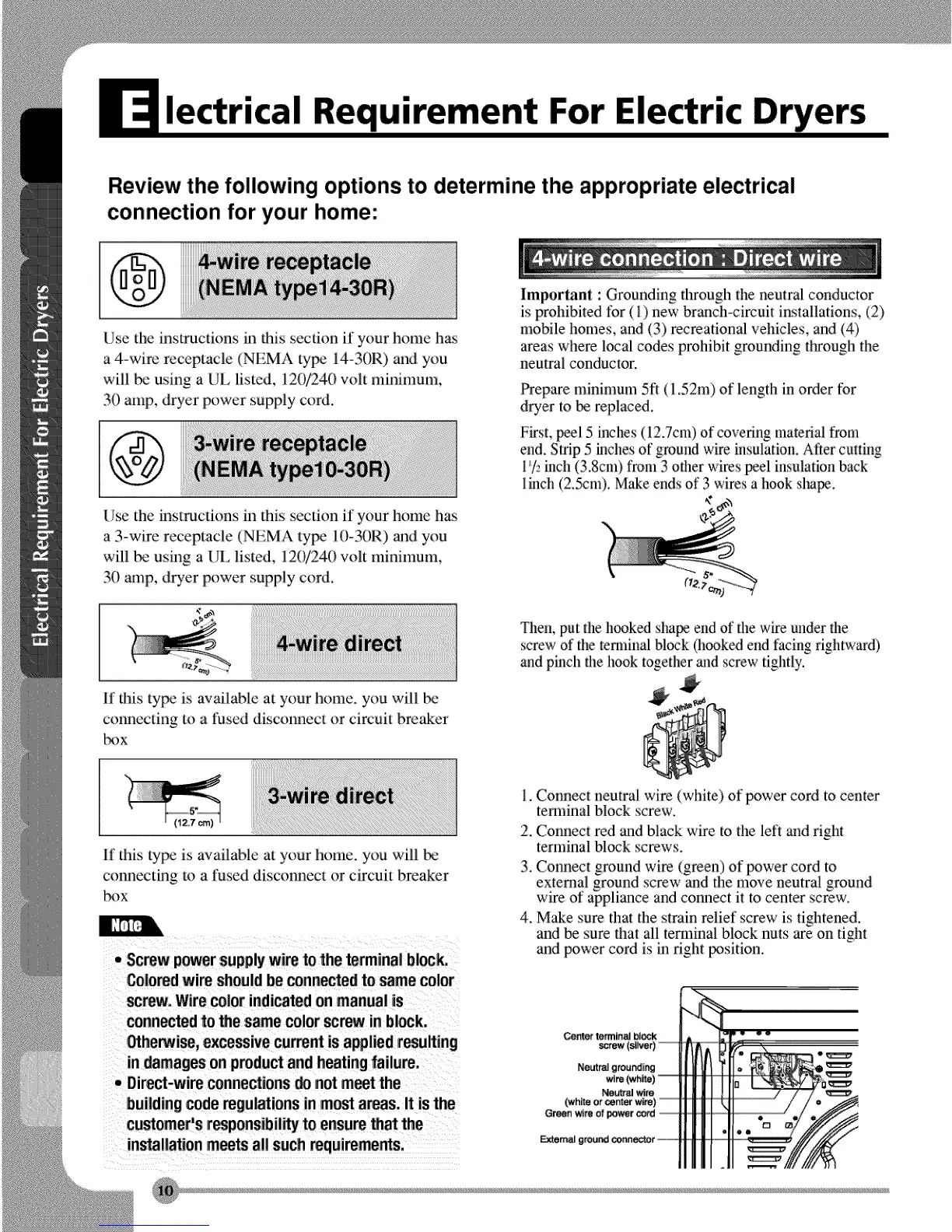

lectrical Requirement For E
Review the following options to determine the appropriate electrical
connection for your home:
Use the instructions hi this section :ifyour home has
a 4-wire receptacle (NEMA type 14-30R) and you
will be using a UL listed, 120/240 volt minimum,.
30 amp, dryer power supply cord.
Ise the instructions in this section if your home has
a 3-wire receptacle (NEMA type 10=30R) and you
will t_e using a IL listed., 120/240 volt n_ininmm,
3(i)amp, dryer power supply cord.
Important : Grounding through the neutral conductor
is p¢ohiNted tor(l) new brm_ch-circuit installations, (2)
mobile homes, and (3) recreational vehicles, and (4)
areas where local codes prohibit grounding through the
neutral conductor.
Prepare minimum 5ft (1.52m) of length in order for
dryer to _ :replaced.
First, peel 5 inches (12.7cm) of covering material from
end. Strip 5 inches of ground wire insulation. After cutting
1"/2inch (3.8cm) t_3m 3 other wi_s peel insulation back
linch (2.5cm). Make ends of 3 wires a hook sha_.
,¢
If this type is available at your home. you will k,e
connecting to a :tused discolmect or circuit breaker
box
It' this type is available at your home. you will
connecting to a Oa_d disconnect or circuit breaker
t_x
• Screw powersupplywire tothe terminalbl_
Coloredwire shouldhe conn_ed to samecolor
screw.Wirecolorindicatedonmanualis
connectedto thesamecolorscrew in block.
Othe_ise, excessivecurrentis appliedresulting
indamageson productand heatingfailure.
• [)irect-wi reconnections _ not meetthe
building coderegulationsinmost areas. It is the
customer'sresponsibility toensurethat the
installationmeets all suchrequirements.
Then, put the h_ked shape end of the wire under the
screw of the mnninal bl_k (h_ked end facing rightward)
and pinch the hook together and screw tightly.
1. Connect neutral wi_ (white) of power cord to center
terminal block screw.
2. Connect red and black wire to the left and right
terminal bl_k screws.
3. Connect ground wire }green) of power cord to
external ground screx_ and the move neutral ground
,_,:ireof a}pliance and connect it to center scow.
4. Make sure that the strain relief screw is tightened.
and be sure that N1 terminN block imts are on tight
and power cord is in right position.
C_r terminal Nook
scr_
Neutral grounding
NeL_r_l wire
(white Orcenter_)
Green wire of _ _d
_re_
