LG DLEY1201 - Reversing the Door

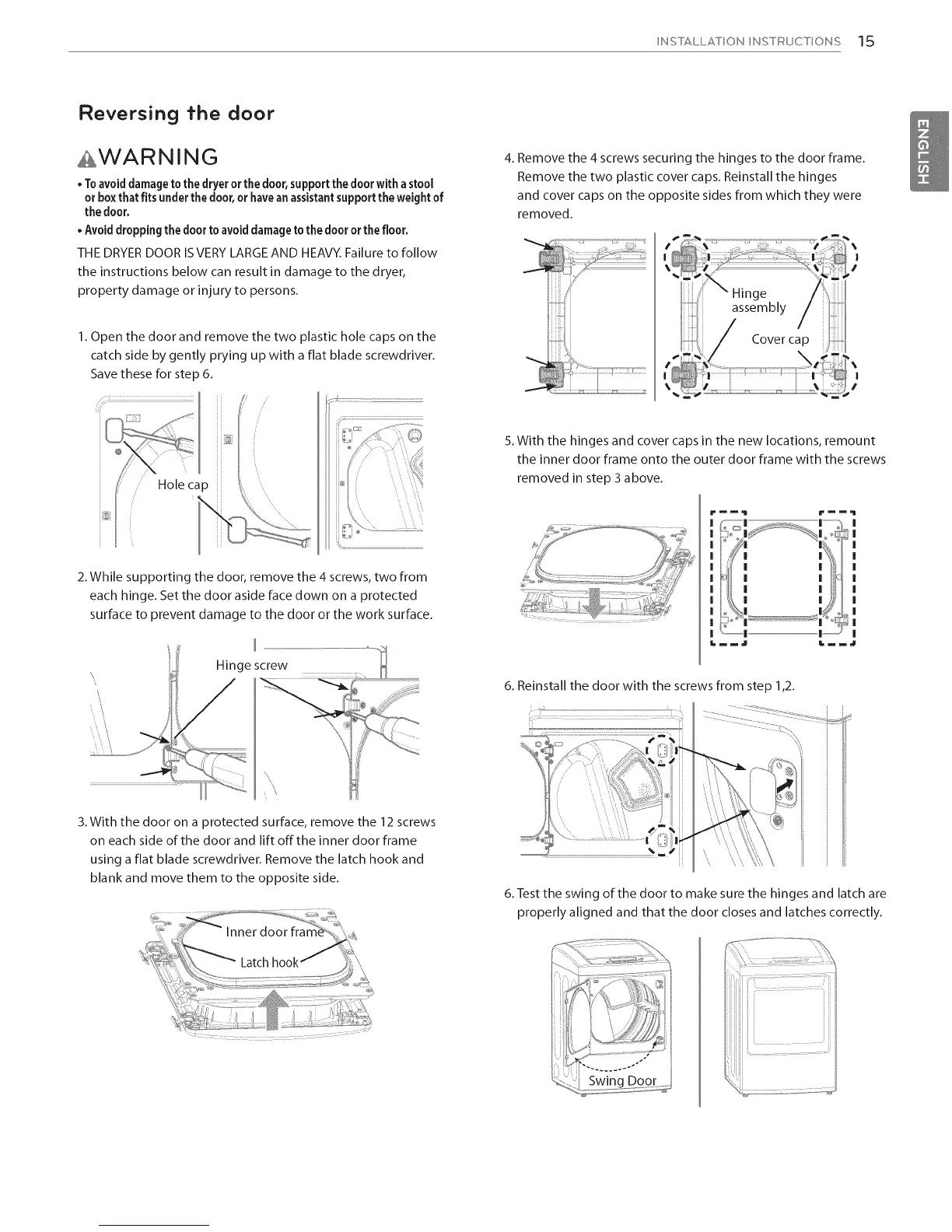

INSTALLATION INSTRUCTIONS ]5
Reversing the door
AWARNING
• Toavoiddamage to the dryer orthe door,supportthe doorwith astool
orboxthat fits underthe door,orhavean assistant supportthe weight of
the door.
• Avoiddropping the doorto avoiddamage to the door or the floor.
THE DRYER DOOR ISVERY LARGE AND HEAVY. Failure to follow
the instructions below can result in damage to the dryer,
property damage or injury to persons.
1. Open the door and remove the two plastic hole caps on the
catch side by gently prying up with a flat blade screwdriver.
Save these for step 6.
4. Remove the 4 screws securing the hinges to the door frame.
Remove the two plastic cover caps. Reinstall the hinges
and cover caps on the opposite sides from which they were
removed.
Hole ca o
2. While supporting the door, remove the 4 screws, two from
each hinge. Set the door aside face down on a protected
surface to prevent damage to the door or the work surface.
5. With the hinges and cover caps in the new locations, remount
the inner door frame onto the outer door frame with the screws
removed in step 3 above.
mm== rm_ I
| | I
| | I
| | I
I
I
1
| I !
6. Reinstall the door with the screws from step 1,2.
I
%
3. With the door on a protected surface, remove the 12 screws
on each side of the door and lift off the inner door frame
using a flat blade screwdriver. Remove the latch hook and
blank and move them to the opposite side.
6.Test the swing of the door to make sure the hinges and latch are
properly aligned and that the door closes and latches correctly.
