44 45

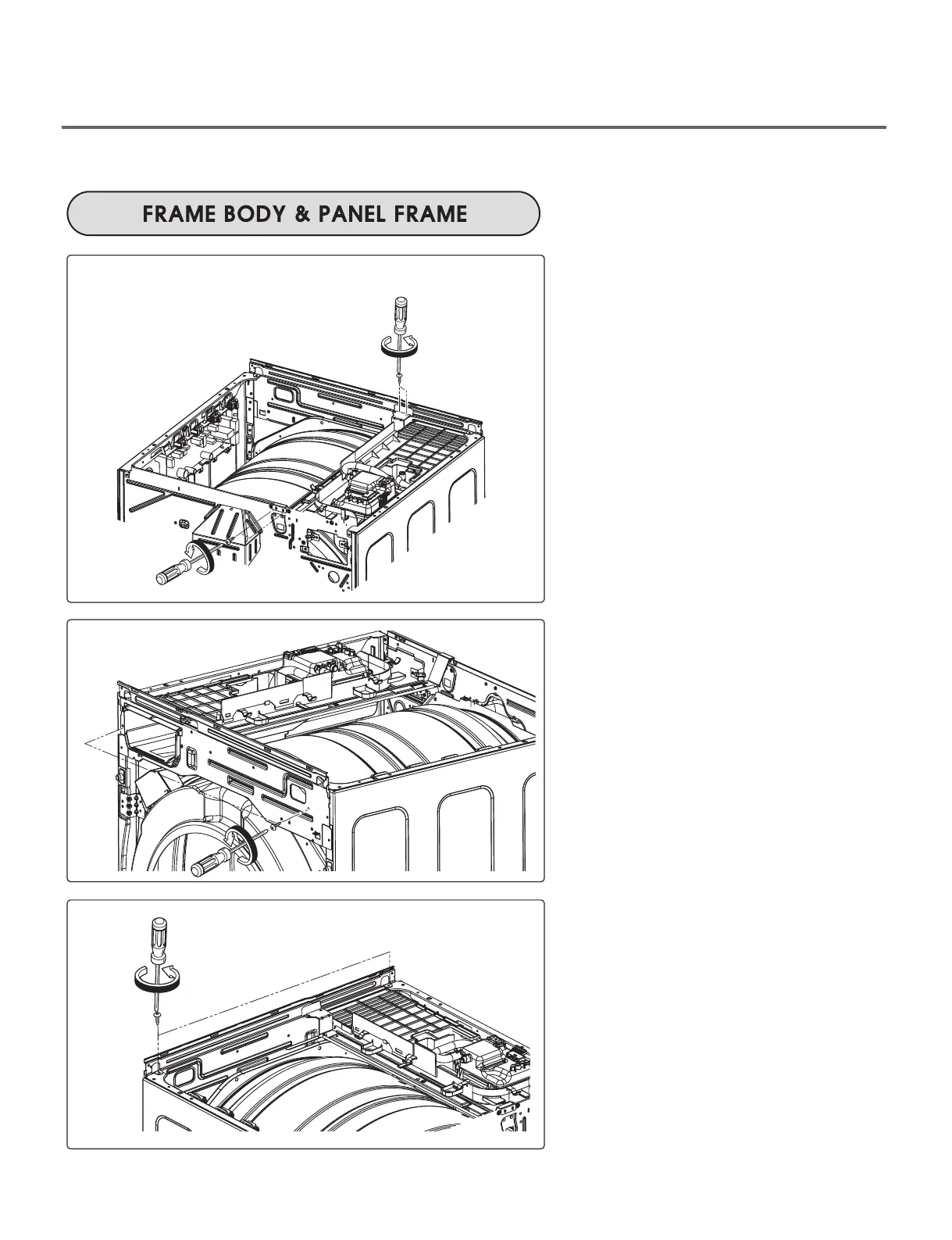

FRAME BODY & PANEL FRAME
1. Remove 3 screws on the frame body.
and then disassemble the frame body.
2. Remove 4 screws on the panel Frame
and then remove it.
1. Remove 3 screws on the frame body.
2. Push the Guide assembly to the back
side and then lift it.
3. Separate 2 hoses from the pump and
generator.
4. Lift a pump and generator up.
GUIDE ASM
