DRYER EXHAUST CHANGE

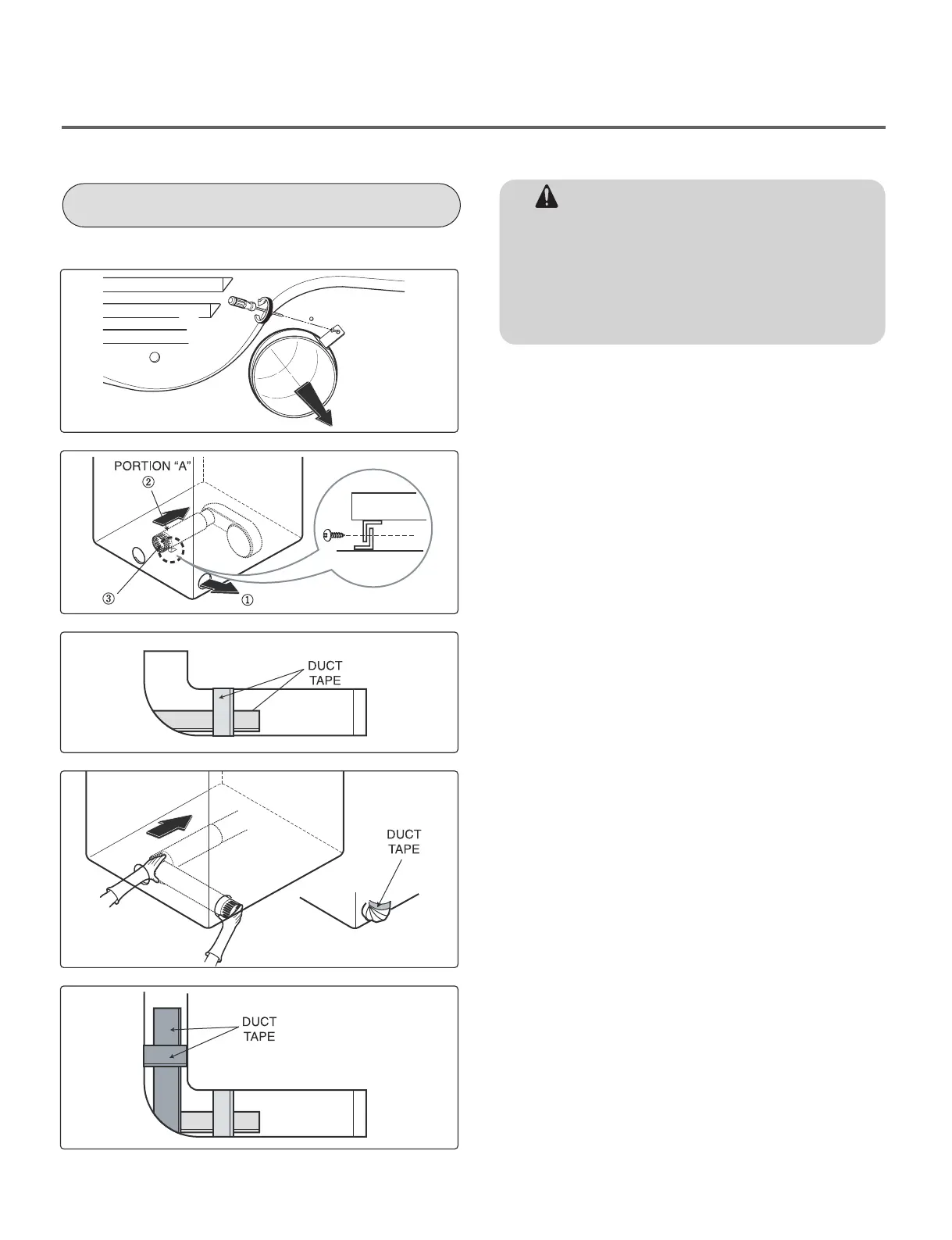

1. Remove screw and exhaust duct.
2. Detach and remove the bottom, left or right
side knockout as desired.
3. Reconnect the new duct [11” (28 cm)] to the
blower housing, and attach the duct to the
base.
4. Pre-assemble a 4” elbow with a 4” duct.
Wrap duct tape around the joint
5. Insert duct assembly, elbow first, through the
side opening and connect the elbow to the
dryer’s internal duct.
WARNING !
Before performing this exhaust installation, be sure to
disconnect the dryer from its electrical supply. Protect your
hands and arms from sharp edges when working inside the
cabinet. To reduce therisk of personal injury,adhere toall
industry recommended safety procedures including the useof
long sleeved gloves and safety glasses.
