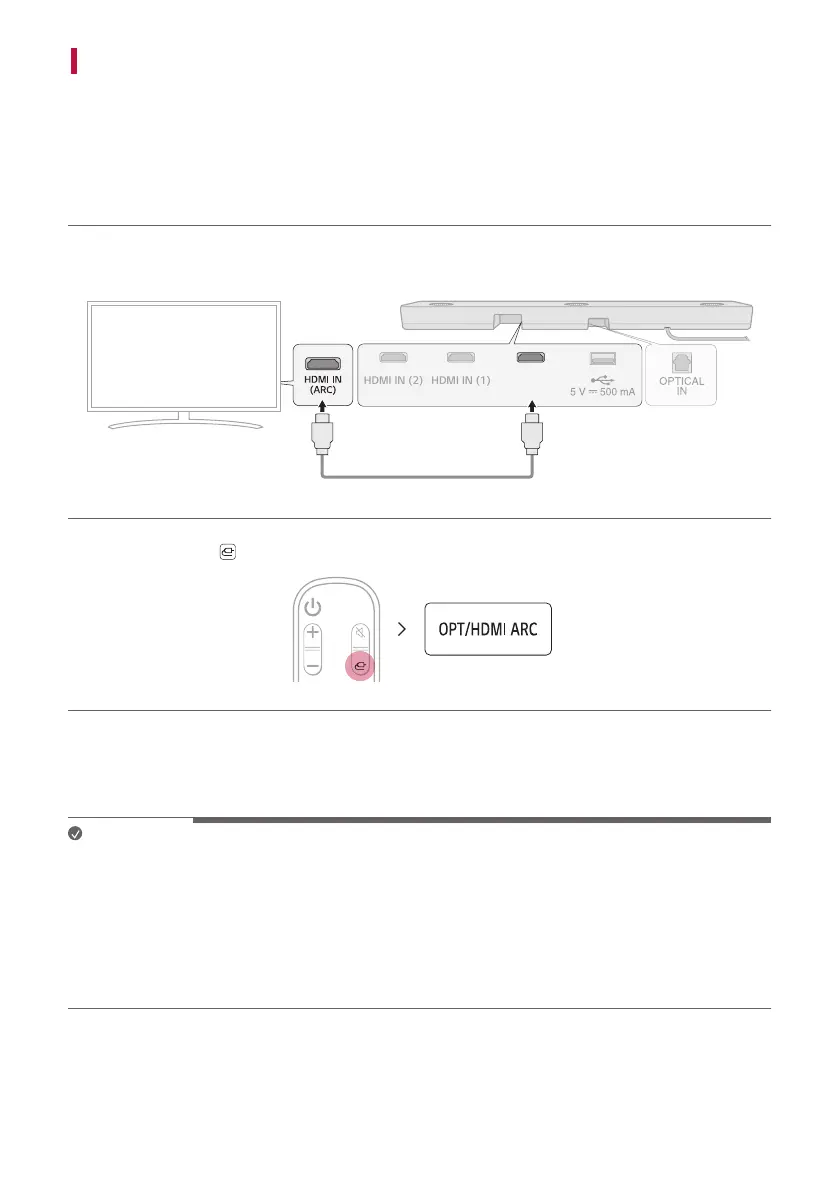

Connecting with an HDMI Cable
You can transmit TV audio to the product by connecting the TV to the product with an HDMI cable. Add a variety
of 3D effects to the original audio to fill the room with a deep, rich sound.
Watching TV after connecting with an HDMI cable
a Using the HDMI cable, connect the HDMI d TV (eARC / ARC) terminal on the back of the product to the
HDMI IN (ARC) terminal on the TV as shown in the picture.
HDMI IN (2)
HDMI IN (1)
HDMI d TV
(eARC / ARC)
b Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display.
c Press the Settings button on the TV remote control to enter the [Speaker] menu and set the output speaker
to [HDMI ARC]. Settings and menu items may vary depending on the TV manufacturer.
d When the TV is properly connected to the product, “ARC” or “E-ARC” will appear on the status display.
Note
• E-ARC supports high-quality audio such as DTS-HD Master Audio™, DTS:X®, Dolby TrueHD, and Dolby Atmos®.
• If you wish to use Dolby Atmos® or DTS:X®, the connected device and its content should support Dolby Atmos®
or DTS:X®.
• Ensure that your TV supports the eARC function before you turn on eARC from the Settings menu. For more
information on how to use this function, please refer to your TV’s user manual. Settings may vary depending on
the TV.
• Use a certified cable with the HDMI logo.

LG DS95QR Specifications

General

Audio decoders	DTS Digital Surround, DTS-HD HR, DTS-HD Master Audio, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
TV Sound Share	Yes
RMS rated power	810 W
Audio output channels	9.1.5 channels
Audio sample rate (24bit)	96 kHz
Subwoofer connectivity	Wireless
Color name	Dark Steel Silver
Display type	LCD
Product color	Black
Audio formats supported	AAC, AAC+, LPCM
HDMI in	2
Bluetooth version	5.0
HDMI ports quantity	3
Number of HDMI outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Soundbar power consumption	40 W
Power consumption (standby)	0.5 W
Soundbar speaker RMS power	- W
Package type	Box
Package depth	261 mm
Package width	1296 mm
Package height	574 mm
Package weight	25300 g
Cables included	HDMI, Optical
Number of products included	4 pc(s)

Weight and Dimensions

Depth	135 mm
Width	1200 mm
Height	63 mm
Soundbar weight	5030 g
Subwoofer depth	403 mm
Subwoofer width	200 mm
Subwoofer height	407 mm
Subwoofer weight	10000 g
Rear speaker depth	142 mm
Rear speaker height	223 mm
Rear speaker weight	4080 g
