LG DS95QR User Manual

6
Installation
Connecting the Product
You can enjoy a richer sound by connecting the sound bar to the wireless subwoofer and wireless rear speakers.

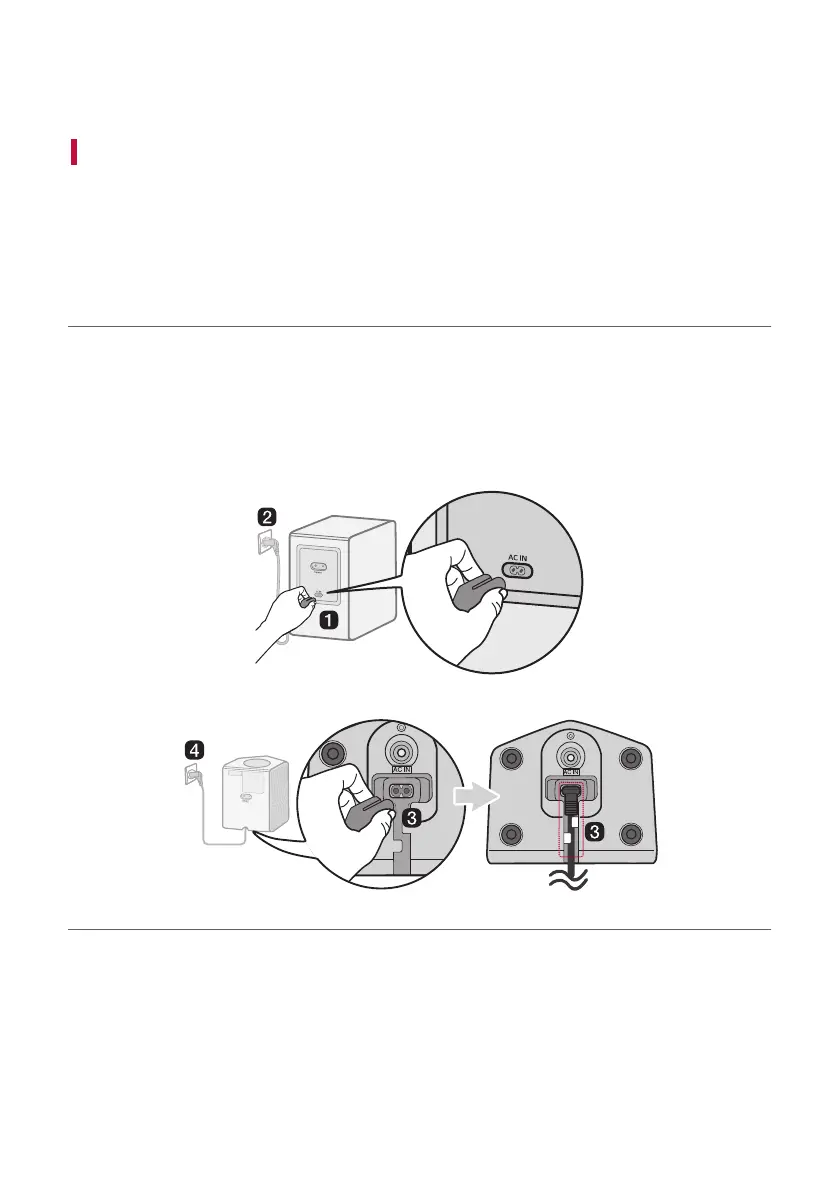

Connecting the wireless subwoofer and wireless rear speakers
automatically
After completing installation, the wireless subwoofer and wireless rear speakers will automatically be connected
to the sound bar. Connect the sound bar to the subwoofer and wireless rear speakers in the following order.
a Plug the power cable into the wireless subwoofer.
b Plug the power cable connected to the wireless subwoofer into an outlet.
c Plug the power cables into the wireless rear speakers and arrange the power cables.
d Plug the power cables connected to the wireless rear speakers into outlets.
Installation

LG DS95QR Specifications

General

Audio decoders	DTS Digital Surround, DTS-HD HR, DTS-HD Master Audio, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
TV Sound Share	Yes
RMS rated power	810 W
Audio output channels	9.1.5 channels
Audio sample rate (24bit)	96 kHz
Subwoofer connectivity	Wireless
Color name	Dark Steel Silver
Display type	LCD
Product color	Black
Audio formats supported	AAC, AAC+, LPCM
HDMI in	2
Bluetooth version	5.0
HDMI ports quantity	3
Number of HDMI outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Soundbar power consumption	40 W
Power consumption (standby)	0.5 W
Soundbar speaker RMS power	- W
Package type	Box
Package depth	261 mm
Package width	1296 mm
Package height	574 mm
Package weight	25300 g
Cables included	HDMI, Optical
Number of products included	4 pc(s)

Weight and Dimensions

Depth	135 mm
Width	1200 mm
Height	63 mm
Soundbar weight	5030 g
Subwoofer depth	403 mm
Subwoofer width	200 mm
Subwoofer height	407 mm
Subwoofer weight	10000 g
Rear speaker depth	142 mm
Rear speaker height	223 mm
Rear speaker weight	4080 g
