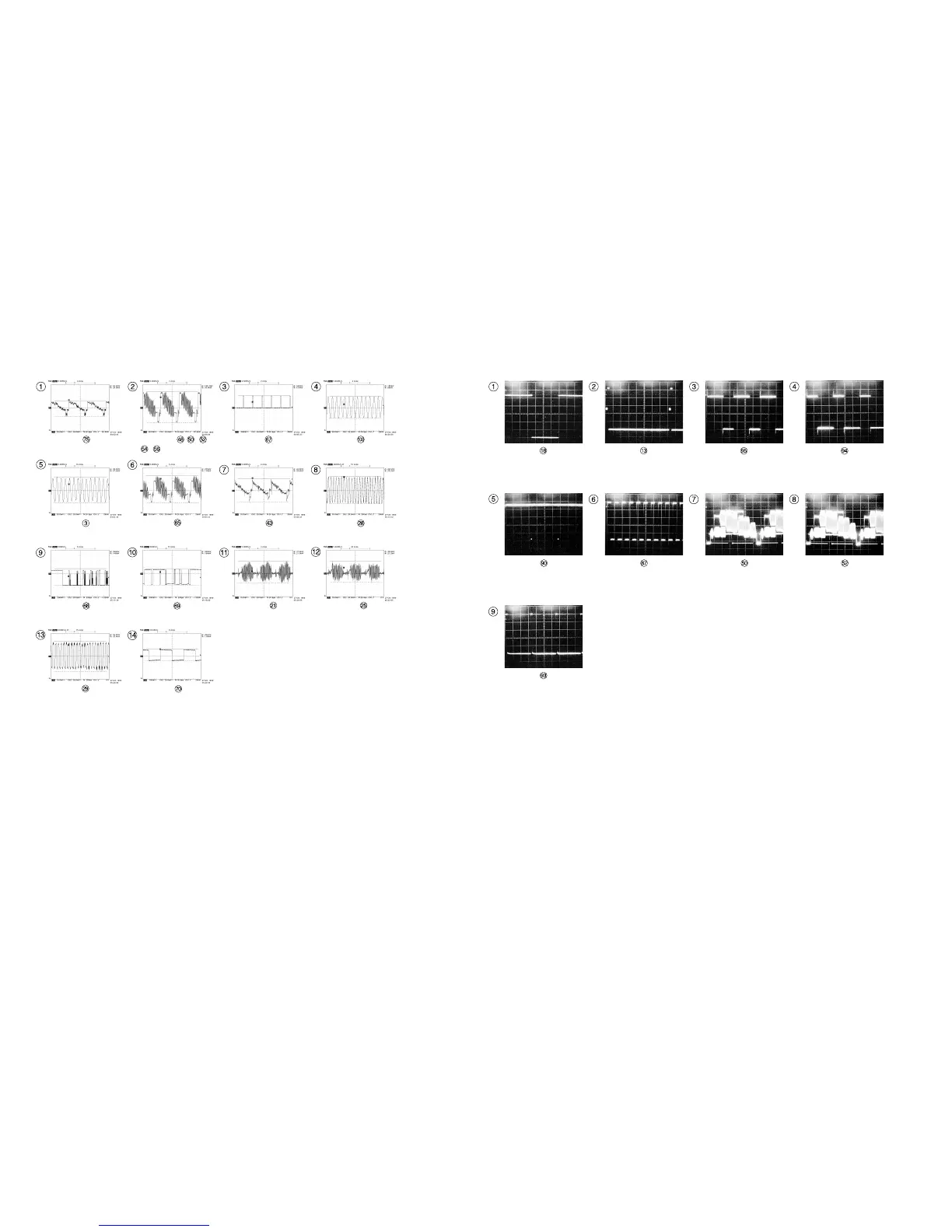

LG EC970W - WAVEFORM; IC301 Oscilloscope Waveforms; IC501 Waveform Photographs

3-40 3-41
WAVEFORM
IC301 Pin 20
PB mode
500mvp-p
IC301 Pins 38,32,31
38, 38
Video in 1Vp-p
IC301 Pin 28
PB/REC mode
4.0Vp-p
IC301 Pin 7
REC mode
1.1Vp-p
IC301 Pin 6
REC mode
2.0Vp-p
IC301 Pin 29
PB mode
2.02Vp-p
IC301 Pin 41
PB mode
400mVp-p
IC301 Pin 64
PB mode
400mVp-p
IC301 Pin 23
PB/REC mode
5Vp-p
IC301 Pin 24
PB/REC mode
5Vp-p
IC301 Pins 71 72
REC mode
340mVp-p
IC301 Pins 51 54
PB mode
300mVp-p
IC301 Pin 63
PB mode
400mVp-p
IC301 Pin 11
PB mode
3.6Vp-p
_
IC301 Oscilloscope Waveform
* IC501 Waveform photographs
IC501 Pin 14
1V/5mS
REC/PB modes
(V.H/SW)
IC501 Pin 27
1V/2mS
QUE/REV modes
(D.V-SYNC)
IC501 Pin 31
1V/10mS
REC mode
(CTL+)
IC501 Pin 32
1V/10mS
REC mode
(CTL-)
IC501 Pin 45
500MV/10uS
EE/PB modes
(V-OUT)
IC501 Pin 54
1V/20uS
EE/PB modes
(C-SYNC)
IC501 Pin 39
1V/10uS
REC/PB modes
(DPG)
IC501 Pin 40
1V/1mS
REC/PB modes
(CFG)
IC501 Pin 43
100mV/10uS
EE/PB modes
(V-IN)
