33
ENGENGLISH
MAKING CONNECTIONS

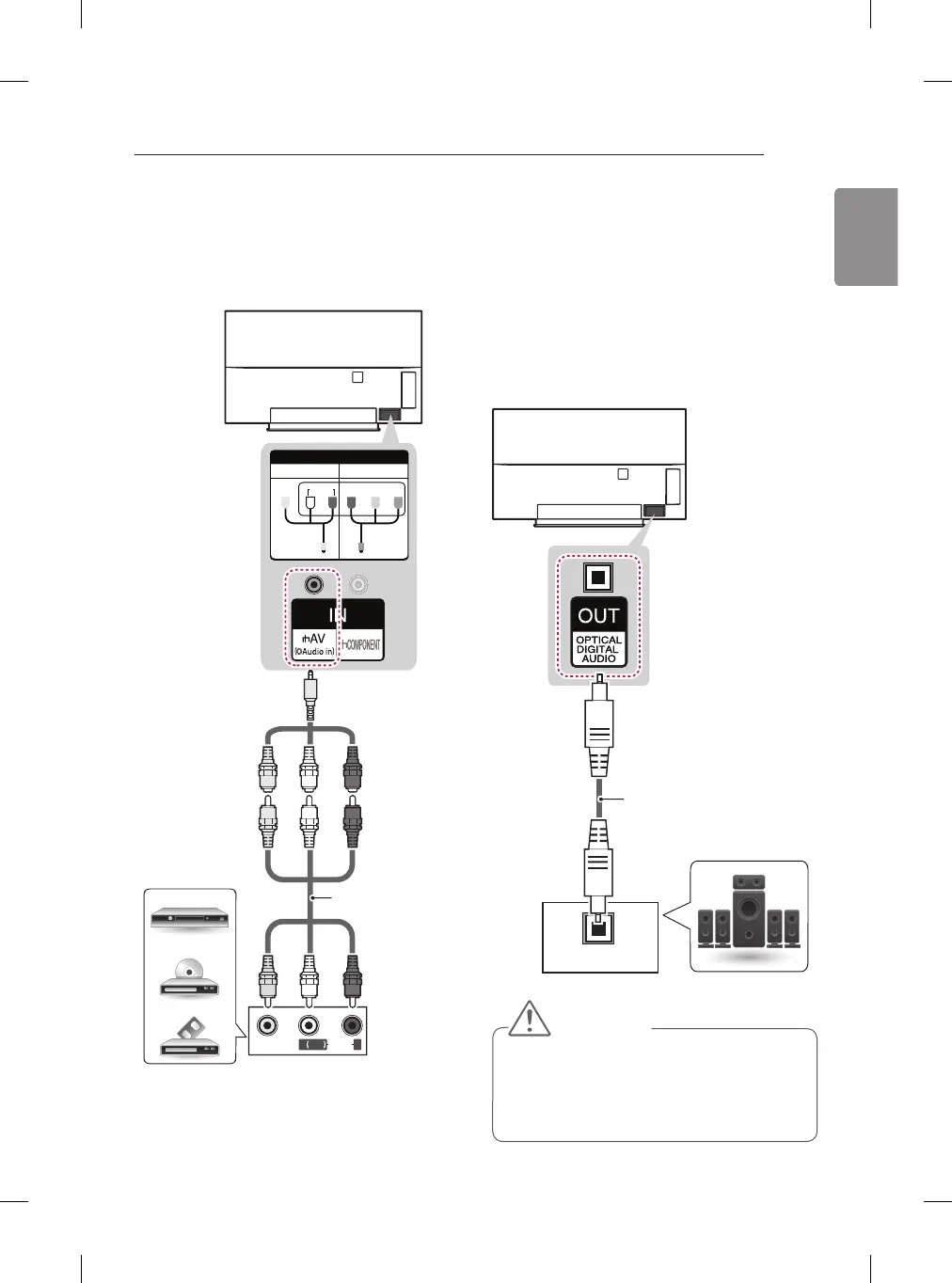

Composite connection
Transmits analogue video and audio signals from
an external device to the TV. Connect the external
device and the TV with a composite gender cable as
shown.
IN
COMPONENT
YPB
AUDIO
AV
PR
VIDEO
VIDEO
MONO
( )
AUDIO
LR
RED
RED
RED
WHITE
WHITE
WHITE
YELLOW
YELLOW
YELLOW
YELLOW
(Use the composite gen-
der cable provided.)
(*Not Provided)
DVD / Blu-Ray /
HD Cable Box / VCR
Audio connection
You may use an external audio system instead of
the built-in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
OPTICAL
AUDIO IN
(*Not Provided)
Digital Audio System
CAUTION
Do not look into the optical output port.
Looking at the laser beam may damage your
vision.
Audio with ACP (Audio Copy Protection)
function may block digital audio output.
To Next Page
