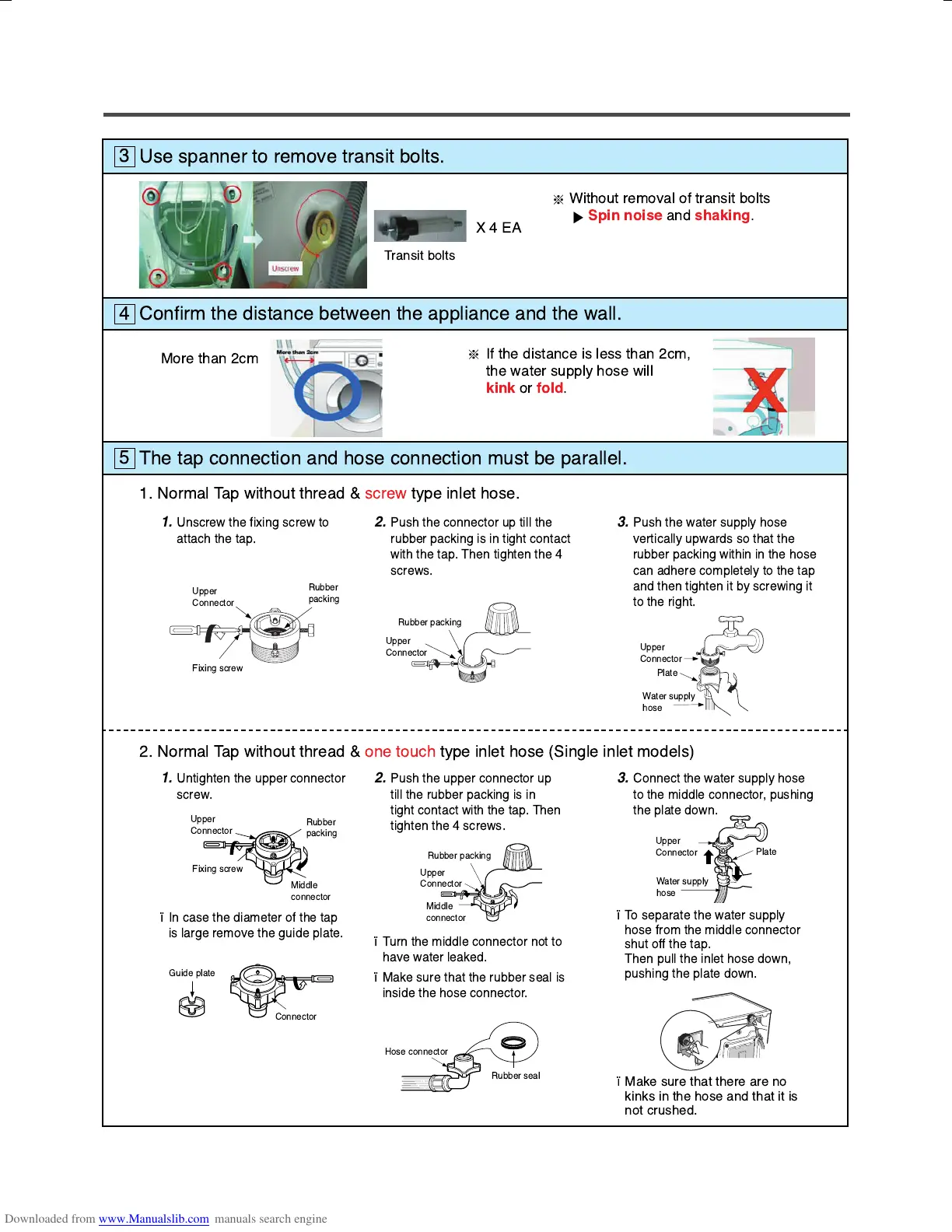

Use spanner to remove transit bolts.
3
Confirm the distance between the appliance and the wall.
4
The tap connection and hose connection must be parallel.
5
Without removal of transit bolts
Spin noise
and
shaking
.
X4EA
Transit bolts
More than 2cm
If the distance is less than 2cm,
the water supply hose will
kink
or
fold
.
1. Normal Tap without thread & screw type inlet hose.
1.
Unscrew the fixing screw to
attach the tap.
2.
Push the connector up till the
rubber packing is in tight contact
with the tap. Then tighten the 4
screws.
3.
Push the water supply hose
vertically upwards so that the
rubber packing within in the hose
can adhere completely to the tap
and then tighten it by screwing it
to the right.
1.
Untighten the upper connector
screw.
2.
Push the upper connector up
till the rubber packing is in
tight contact with the tap. Then
tighten the 4 screws.
3.
Connect the water supply hose
to the middle connector, pushing
the plate down.
Incase the diameter of the tap
is large remove the guide plate.
Turn the middle connector not to
have water leaked.
Make sure that the rubber seal is
inside the hose connector.
Toseparate the water supply
hose from the middle connector
shut off the tap.
Then pull the inlet hose down,
pushing the plate down.
Make sure that there are no
kinks in the hose and that it is
not crushed.
2. Normal Tap without thread & one touch type inlet hose (Single inlet models)
Upper
Connector
Fixing screw
Guide plate
Connector
Rubber packing
Upper
Connector
Rubber packing
Upper
Connector
Plate
Water supply
hose
Rubber seal
Hose connector
Upper
Connector
Middle
connector
Rubber
packing
Upper
Connector
Fixing screw
Middle
connector
Rubber
packing
Upper
Connector
Plate
Water supply
hose
