6. MC4580

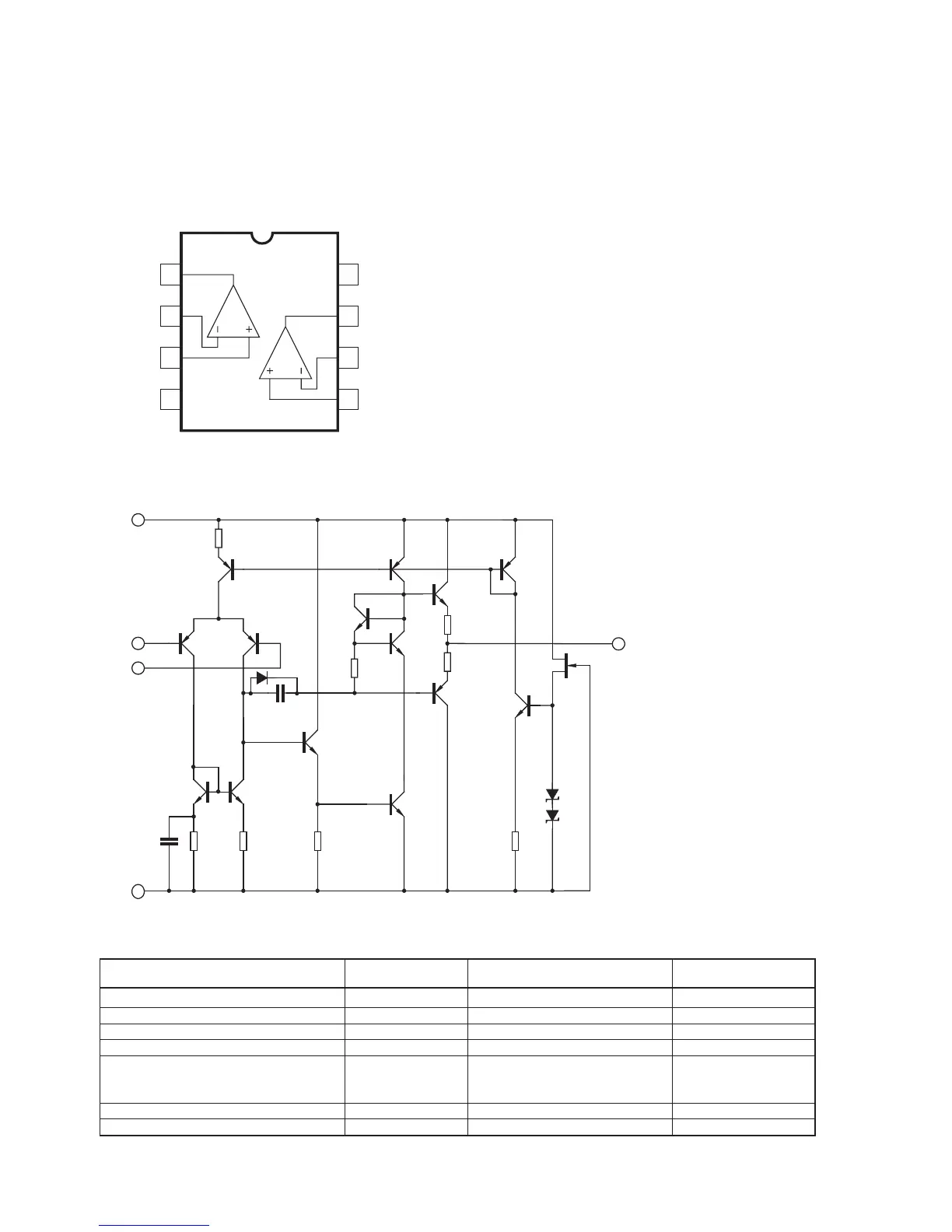

• PIN CONFIGURATION
1
2
3
4
8
7
6
5
OUT2
IN2(-)IN1(+)
Vcc-
Vcc+OUT1
IN1(-)
IN2(+)
Vcc+
Vcc-
IN(-)
IN(+)
OUT
P
UT
SYMBOL RATINGS UNITPARAMETER
Supply Voltage V+/V- ±18 V
Input Voltage V
IC ±5V
Differential Input Voltage V
ID ±30 V
Output Current I
o ±50 m A
Power Dissipation P
D 300 (SOP-8) mW
800 (DIP-8)
250(TSSOP-8)
Operating Temperature Range Topr -40 to+85 ° C
Storage Temperature Range Tstg -40 to +125
°C
• ABSOLUTE MAXIMUM RATINGS (TA=25 °C)
•TEST CIRCUIT
