REPAIRS REGARDING CD MECHANISM
IMPROVED METHOD - WHEN THE TRAY GEARS WERE DISTORTED
1. How to open the tray.
In case of not suppling power push two hooks (H) of the base, and them open the tray.
2. How to improve the distorted gears.

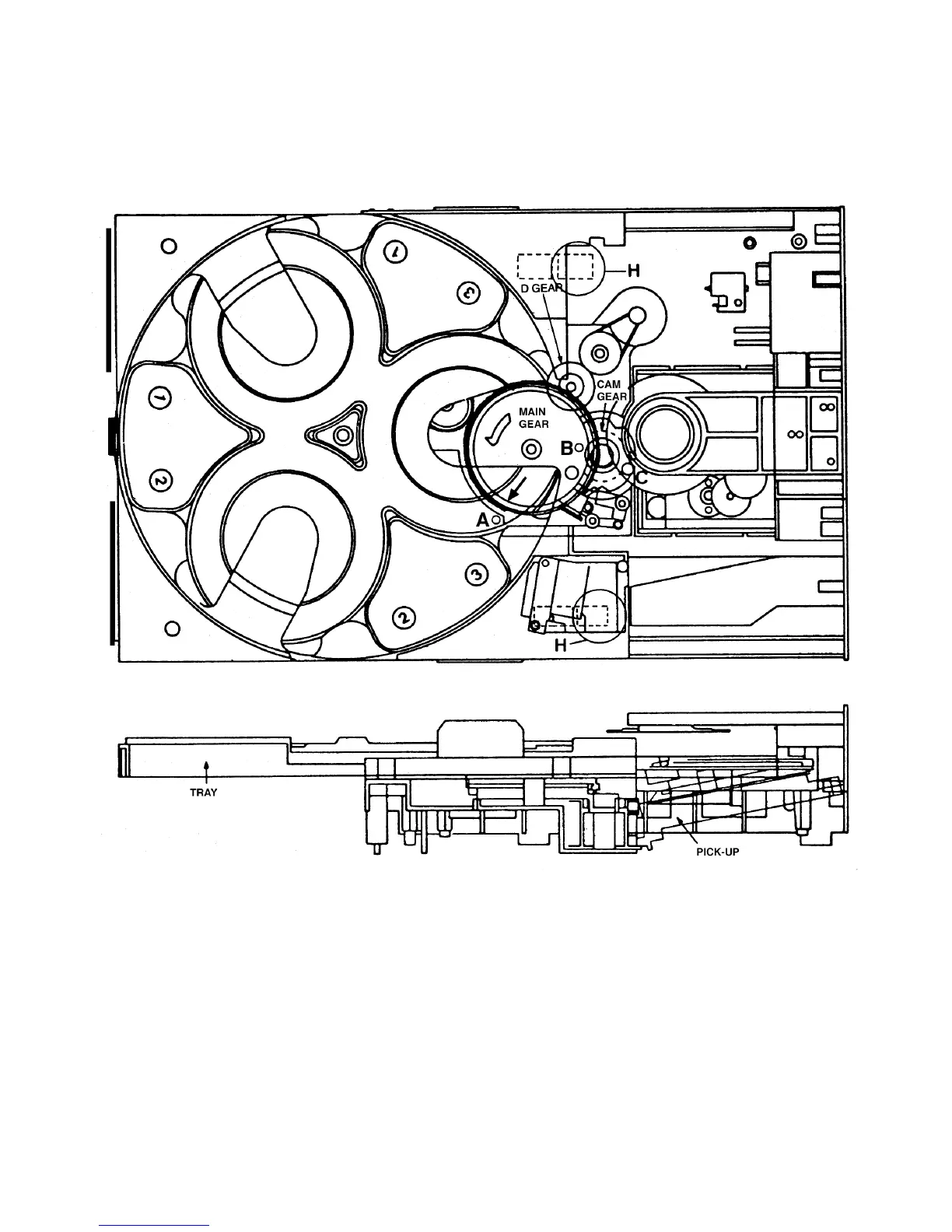

(1) Do the hole "C" of the cam gear to face forward the pick-up so the pick-up is down like figure.
(2) Do the hole "B" of main gear to face forward pick-up, too.
(3) Set the last part of main gear to point "A".
(4) Push the tray to end.
