LG Flatron L1710B

- 15 -

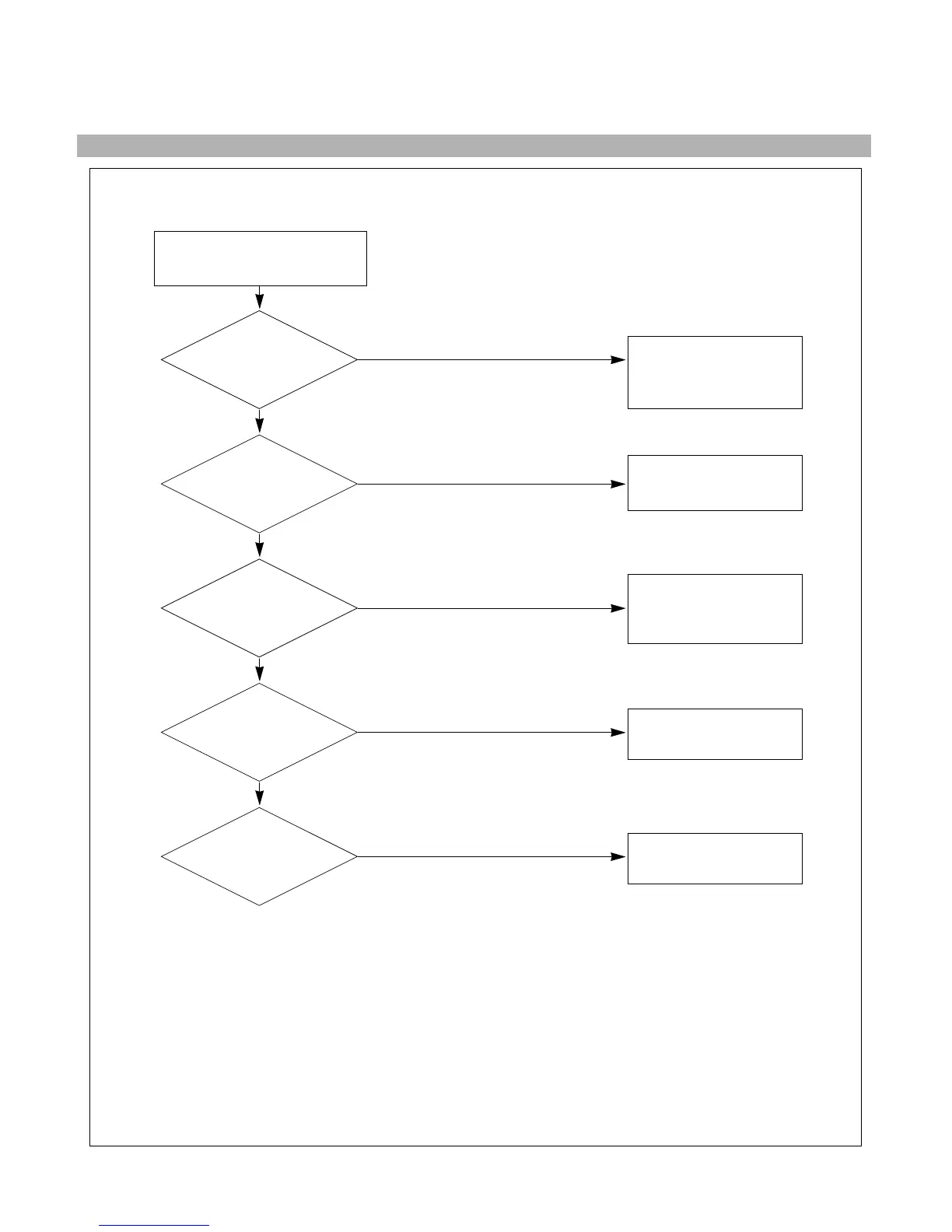

2. NO RASTER
TROUBLE IN
U802
CHECK
J705 PIN 28, 29, 30
(5V) ?
NO
NO RASTER
TROUBLE IN
LIPS
CHECK
J702 PIN 1, 2, 5, 6
(12V/ 5V) ?
NO
TROUBLE IN
U801
CHECK
U801
(3.3V)?
NO
TROUBLE IN
U201
CHECK
U201(GM5120) ?
NO
TROUBLE IN
U201
NO
YES
YES
YES
YES
CHECK
L201, L202, L203,
R234, R235, R237
PULSE?
