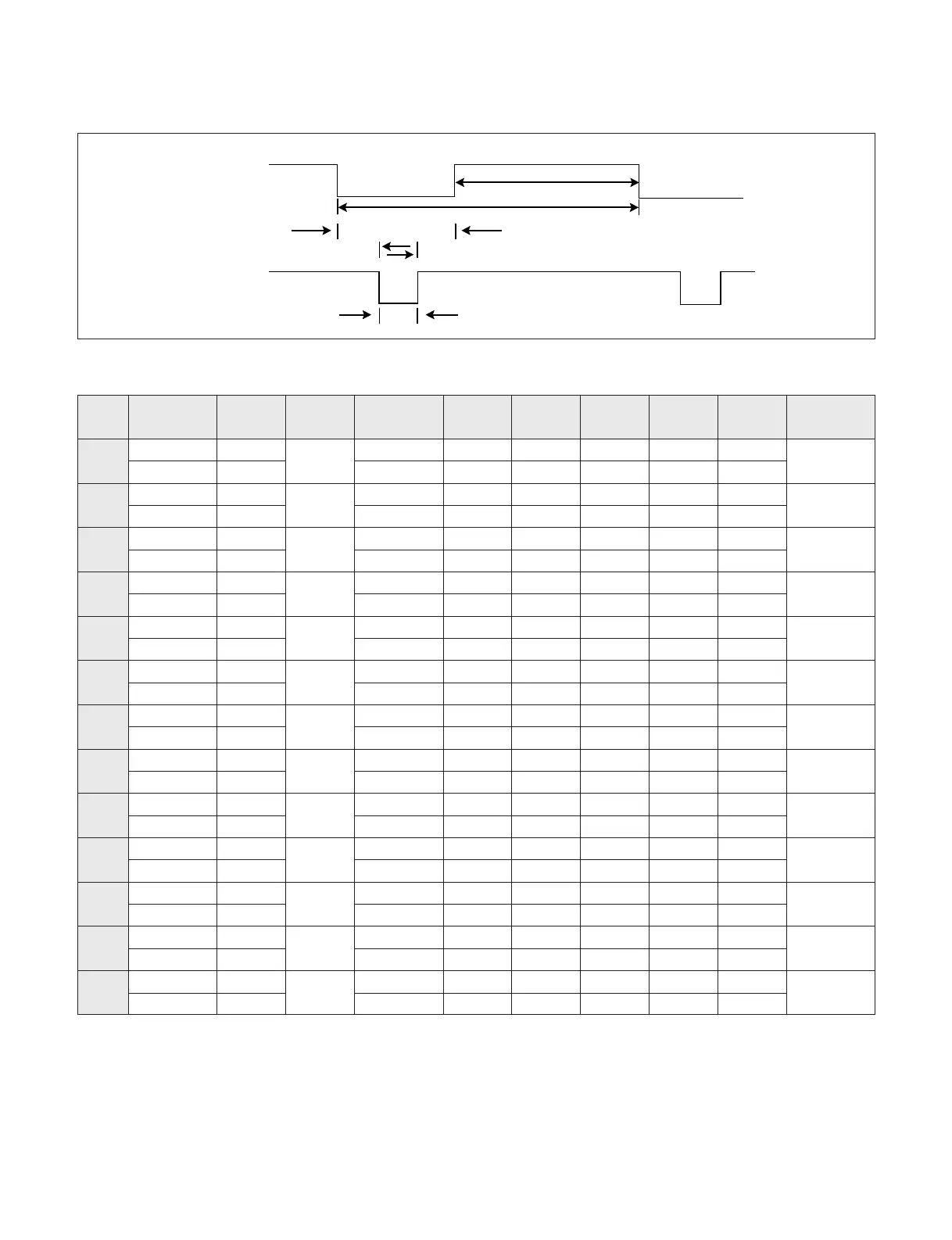

TIMING CHART
- 7 -
<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... s), Vertical etc... (ms) >>
VIDEO
SYNC
B
C
E
A
D
MODE Section Polarity Frequency
Dot
Clock
1 H(Pixels) + 25.175 31.469 800 640 16 96 48 640 x 350
V(Lines) - 70.09 449 350 37 2 60
2 H(Pixels) - 28.321 31.468 900 720 18 108 54 720 X 400
V(Lines) + 70.08 449 400 12 2 35
3 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480
V(Lines) - 59.94 525 480 10 2 33
4 H(Pixels) - 31.5 37.5 840 640 16 64 120 640 x 480
V(Lines) - 75 500 480 1 3 16
5 H(Pixels) + 40.0 37.879 1056 800 40 128 88 800 x 600
V(Lines) + 60.317 628 600 1 4 23
6 H(Pixels) + 49.5 46.875 1056 800 16 80 160 800 x 600
V(Lines) + 75.0 625 600 1 3 21
7 H(Pixels) +/- 57.283 49.725 1152 832 32 64 224 832 x 624
V(Lines) +/- 74.55 667 624 1 3 39
8 H(Pixels) - 65.0 48.363 1344 1024 24 136 160 1024 x 768
V(Lines) - 60.0 806 768 3 6 29
9 H(Pixels) - 78.75 60.123 1312 1024 16 96 176 1024 x 768
V(Lines) - 75.029 800 768 1 3 28
10 H(Pixels) +/- 100.0 68.681 1456 1152 32 128 144 1152 x 870
V(Lines) +/- 75.062 915 870 3 3 39
11 H(Pixels) +/- 92.978 61.805 1504 1152 18 134 200 1152 x 900
V(Lines) +/- 65.96 937 900 2 4 31
12 H(Pixels) + 108.0 63.981 1688 1280 48 112 248 1280 x 1024
V(Lines) + 60.02 1066 1024 1 3 38
13 H(Pixels) + 135.0 79.976 1688 1280 16 144 248 1280 x 1024
V(Lines) + 75.035 1066 1024 1 3 38
Total
Period
( E )
Display
( A )
Front
Porch
( D )
Sync.
( C )
Back
Porch
( B )
Resolution
