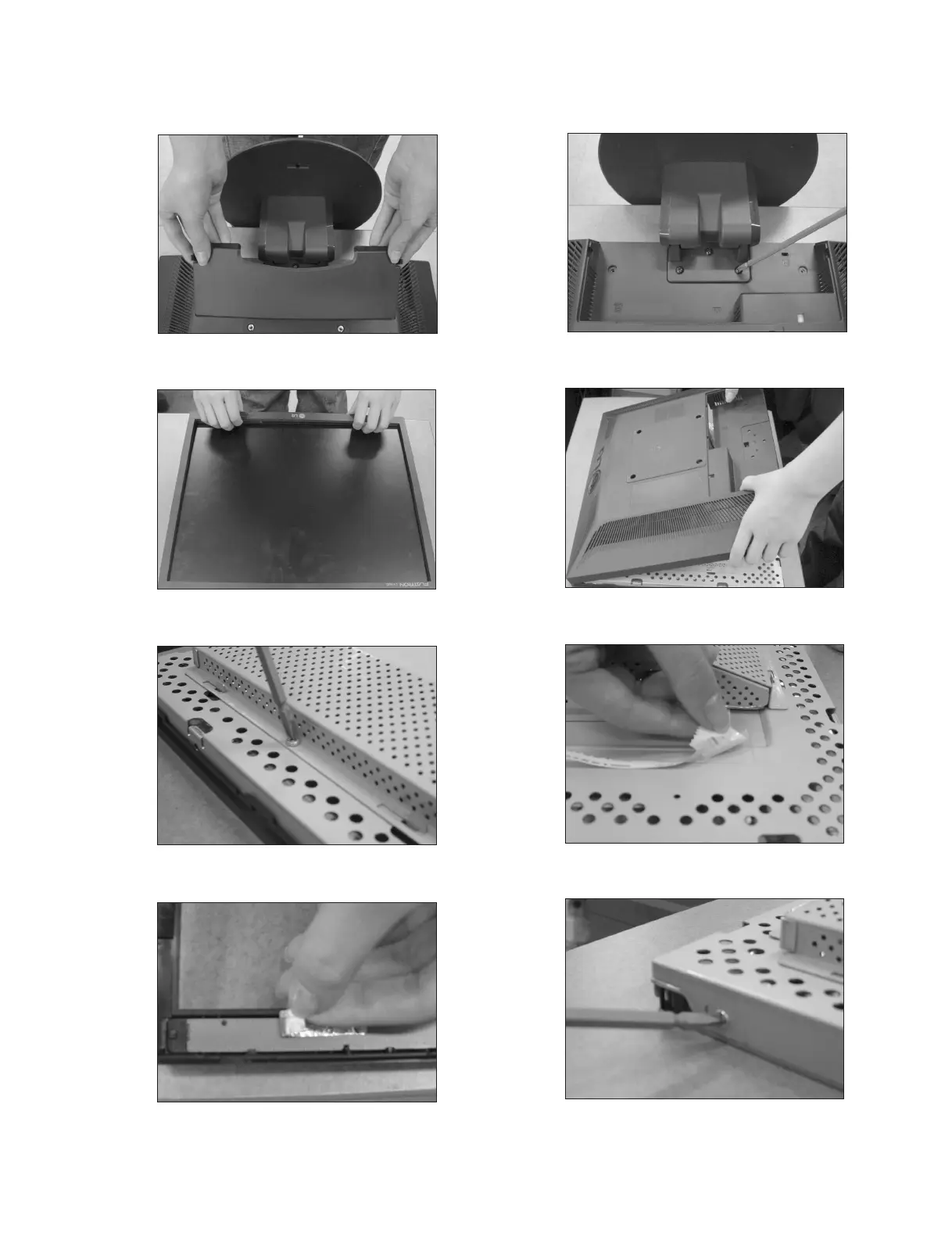

DISASSEMBLY
Disassembly Hinge Cover.
Disassemble back cover.
# 1
Remove the screws.
Pell off Al-tape from panel.
Remove the 6 screws from each up of metal frame.
# 2
# 3
# 4
# 5
# 6
Remove Al-tape from control pcb fix.
Remove the 4 screws from each side of metal
frame.
1. Pull the front cover upward.
2. Then, let the all latches are separated.
3. Put the front face down.
# 7
# 8
