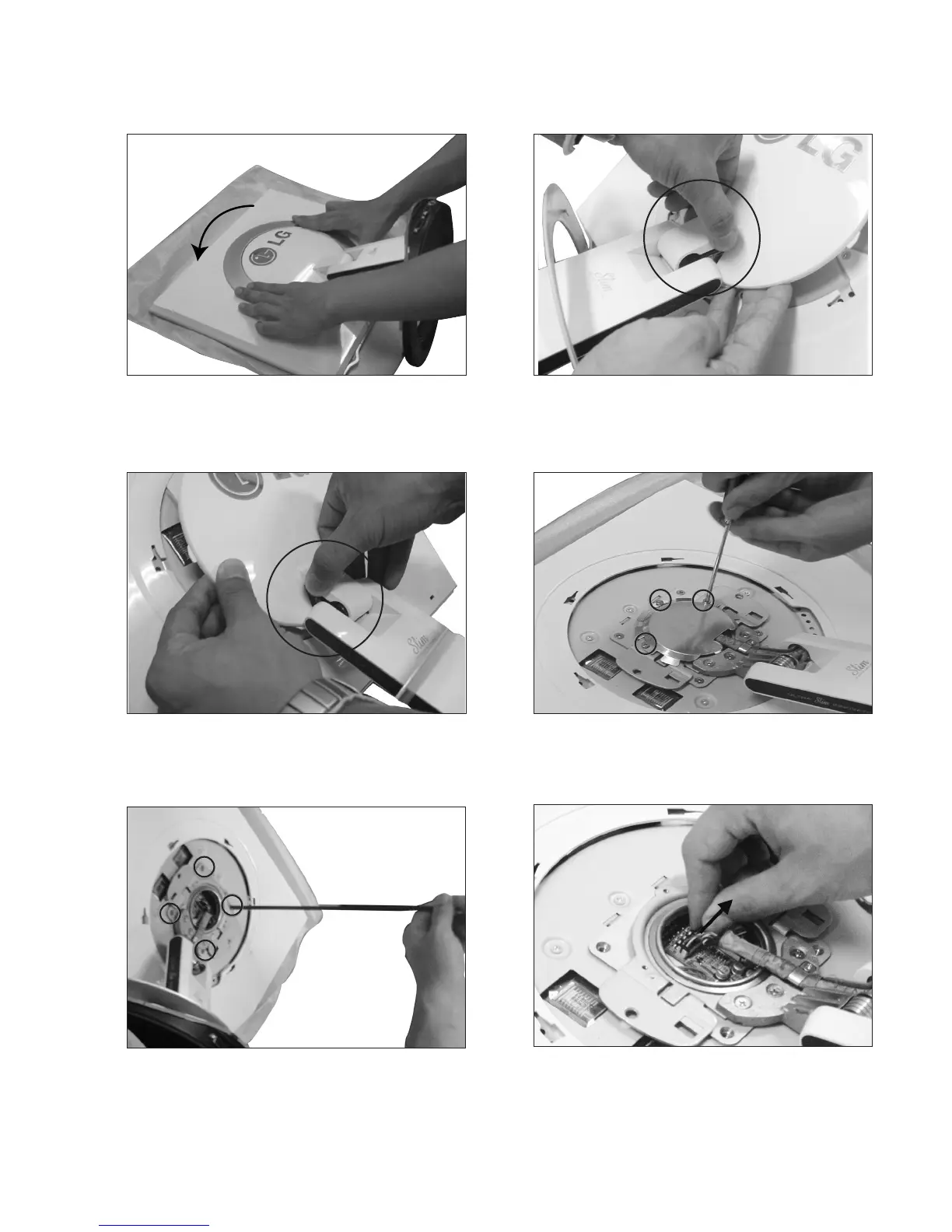

Disassembly
1. Cover Ring
Disassemble the cover ring by turning it
counterclockwise as shown.
3-1. Stand Ass'y
Unscrew and remove the three EMI shield screws.
2-1. Hinge Rear Cover
Loosen the catch of the right latch as shown.
Loosen the catch of the left latch of the hinge rear
cover as shown and remove the hinge rear cover
completely.
# 1 # 2-1
#2-2 #3-1
# 3-2
# 3-3
Remove the four stand assembly screws in the same
way.
Take the main cable out carefully by hand.
To Next Page
