- 18 -

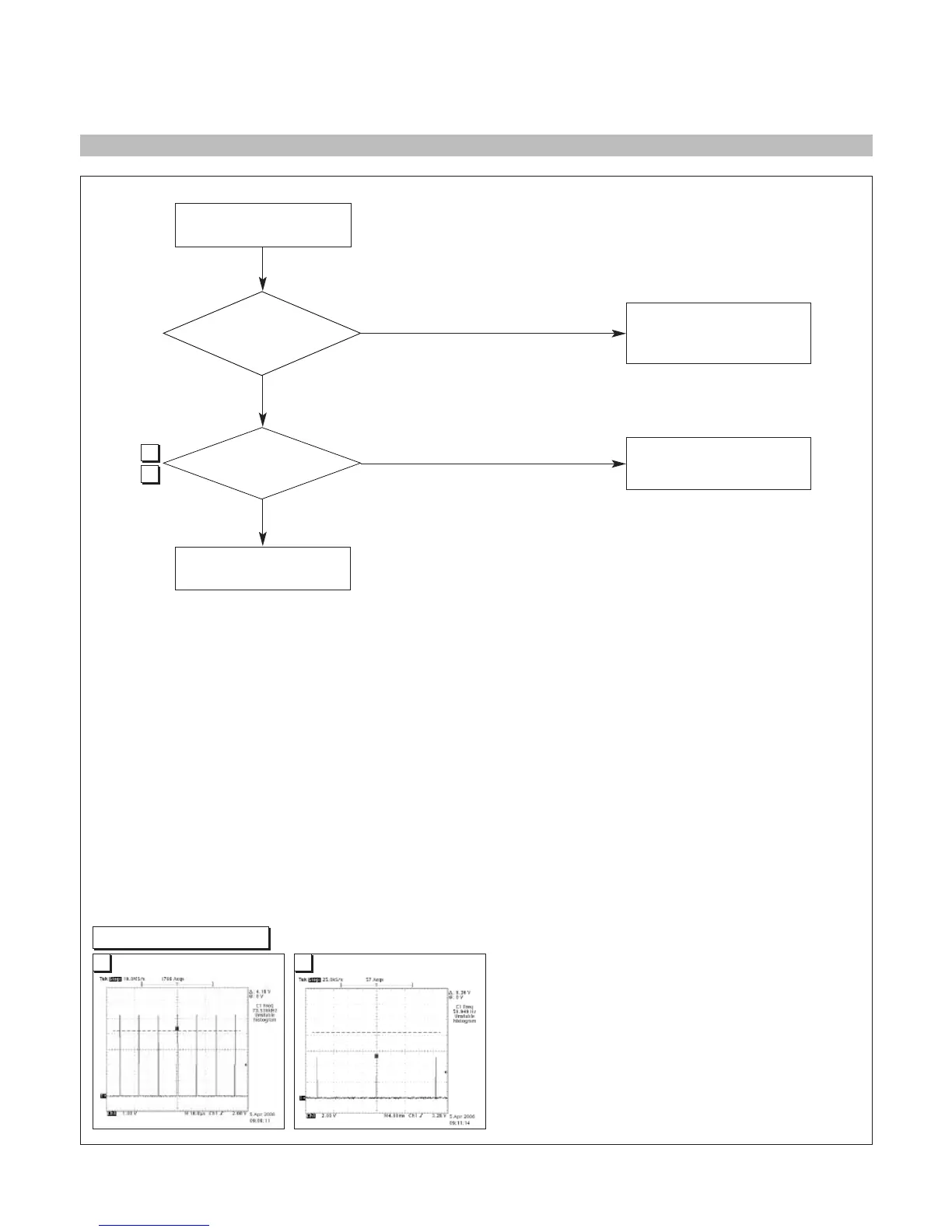

4. TROUBLE IN DPM
TROUBLE IN DPM
TROUBLE IN U501
CHECK PC
PC IS GOING
INTO DPM MODE
NO
CHECK H/V SYNC LINE
NO
YES
CHECK R718 AND
R719, SYNC
APPEARED?
CHECK
U501 PIN 32,33
SYNC PULSE
YES
1
H-SYNC
2
V-SYNC
Waveforms
1
2
