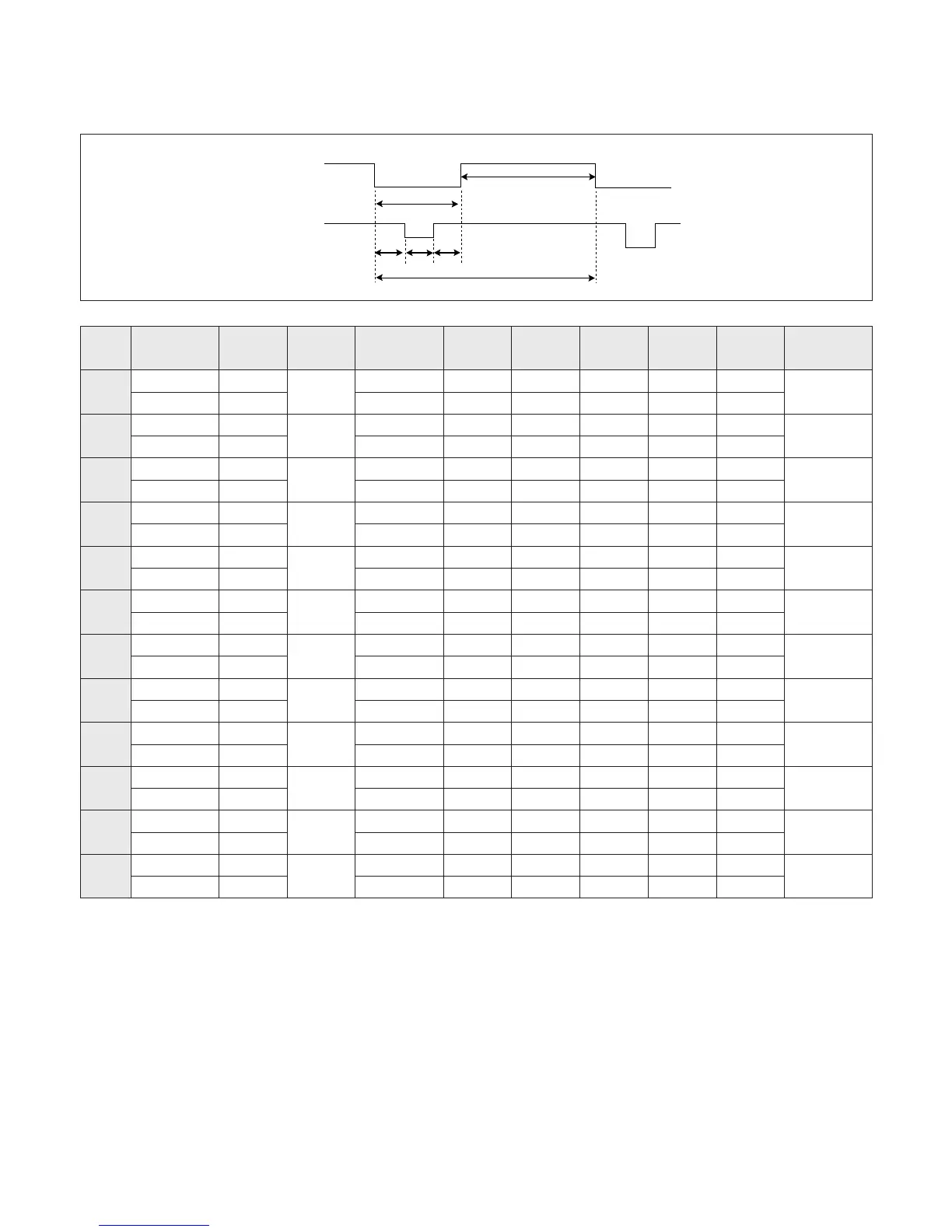

TIMING CHART
- 8 -
VIDEO
SYNC
F
E
C
A
B
D
1 H(Pixels) - 28.321 31.468 900 720 18 108 54 720 X 400
V(Lines) + 70.08 449 400 12 2 35
2 H(Pixels) - 25.175 31.469 800 640 16 96 48 640 x 480
V(Lines) - 59.94 525 480 10 2 33
3 H(Pixels) - 31.5 37.5 840 640 16 64 120 640 x 480
V(Lines) - 75 500 480 1 3 16
4 H(Pixels) + 40.0 37.879 1056 800 40 128 88 800 x 600
V(Lines) + 60.317 628 600 1 4 23
5 H(Pixels) + 49.5 46.875 1056 800 16 80 160 800 x 600
V(Lines) + 75.0 625 600 1 3 21
6 H(Pixels) - 65.0 48.363 1344 1024 24 136 160 1024 x 768
V(Lines) - 60.0 806 768 3 6 29
7 H(Pixels) - 78.75 60.123 1312 1024 16 96 176 1024 x 768
V(Lines) - 75.029 800 768 1 3 28
8 H(Pixels) +/- 108.0 67.500 1600 1152 64 128 256 1152 x 864
V(Lines) +/- 75.000 900 864 1 3 32
9 H(Pixels) + 108.0 63.981 1688 1280 48 112 248 1280 x 1024
V(Lines) + 60.02 1066 1024 1 3 38
10 H(Pixels) + 135.0 79.976 1688 1280 16 144 248 1280 x 1024
V(Lines) + 75.035 1066 1024 1 3 38
11 H(Pixels) + 119 64.674 1840 1680 48 32 80 1680x1050
V(Lines) - 59.883 1080 1050 3 6 21
12 H(Pixels) - 146.25 65.290 2240 1680 104 176 280 1680x1050
V(Lines) + 59.954 1089 1050 3 6 30
MODE
H / V
Sync
Polarity
Dot
Clock
Frequency
Total
Period
( E )
Video
Active
Time ( A )
Sync
Duration
( D )
Front
Porch
( C )
Blanking
Time
( B )
Resolution
