LG FLATRON L2320A User Manual

- 8 -
Copyright 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
J04
J5
CN3
CN5
CN4
CN2
J905
J907
J906
J902 J903
J3
J2
J1

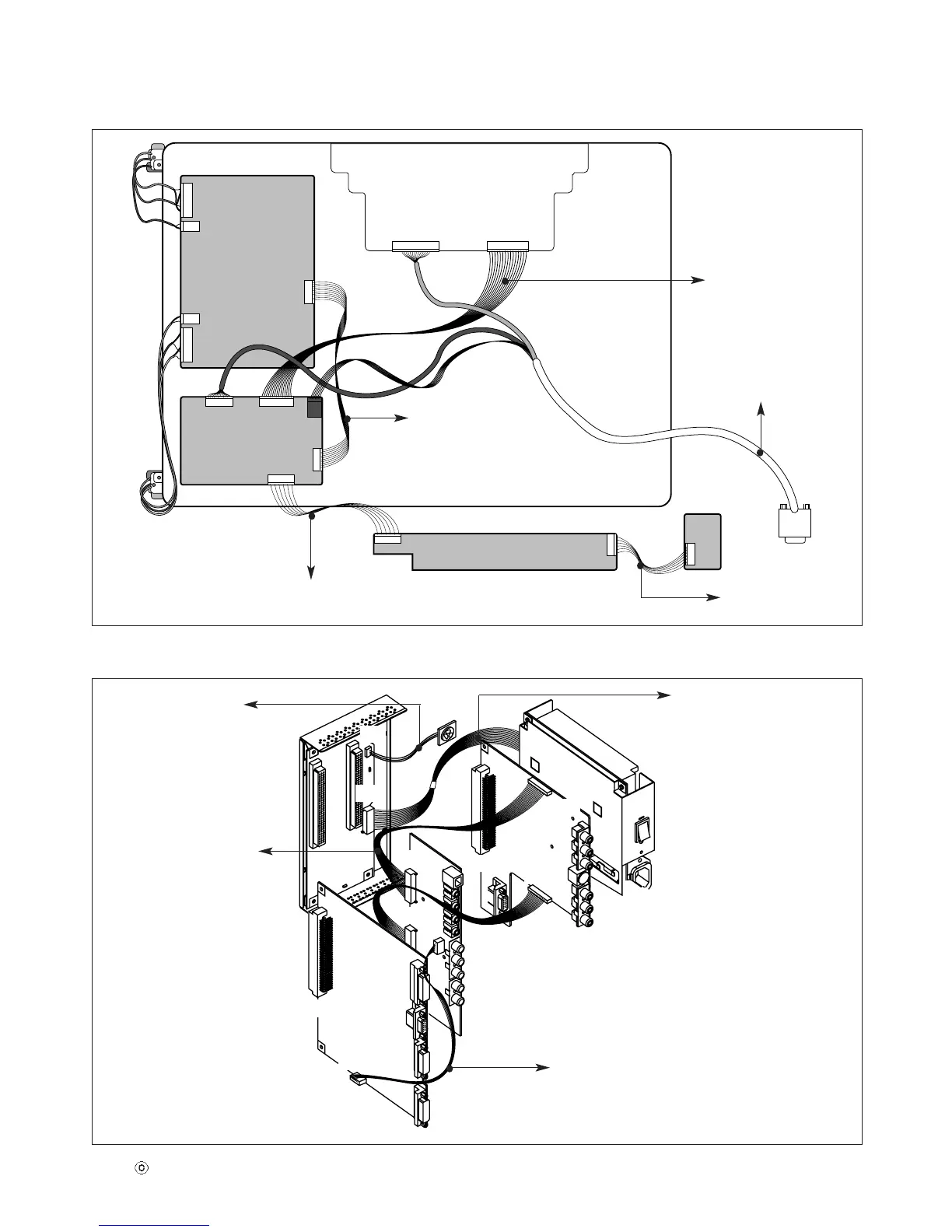

WIRING DIAGRAM(DISPLAY)
J18
J3
J4
J1
J2
J2
J8
J601
J704
J702
J6
WIRING DIAGRAM(Media Station)
Connector Ass’y P/N:
6631T20022E
Connector Ass’y P/N:
6850TAC006A
Connector Ass’y P/N:
6631T12004F
Connector Ass’y P/N:
6631T12004H
Connector Ass’y P/N:
6631T12004G
Connector Ass’y P/N:
6631T20010D
FAN P/N:
5900T02001A
Connector Ass’y P/N:
6631T20022E
Connector Ass’y P/N:
6631T20010D

LG FLATRON L2320A Specifications

Display

display type	23.0" Widescreen Active Matrix TFT Color LCD Screen
display area	19.5" x 12.2"
display colors	16.8 Million
pixel pitch	0.258mm x 0.258mm
maximum resolution	1920 x 1200

Power

power requirements	90-264 VAC, 50-60Hz
power consumption on	100 Watts
power consumption standby	5 Watts

Ports & Interfaces

input connectors	DVI-I/DVI-D, 15-pin D-Sub, DTV, HD Component Video, Composite A/V, S-Video
electronic interface	TMDS
input signal	RGB Analog

Weight and Dimensions

dimensions without base	23.1" x 2.6" x 16.1"
dimensions with base	23.1" x 10.3" x 17.5"
weight net	31.7 lbs
weight shipping	40.8 lbs
