NOTE
• Before connecting the inlet hose to the water
tap, turn on the water tap to flush out foreign
substances (dirt, sand, sawdust, and etc.) in the
water lines. Let the water drain into a bucket,
and check the water temperature.

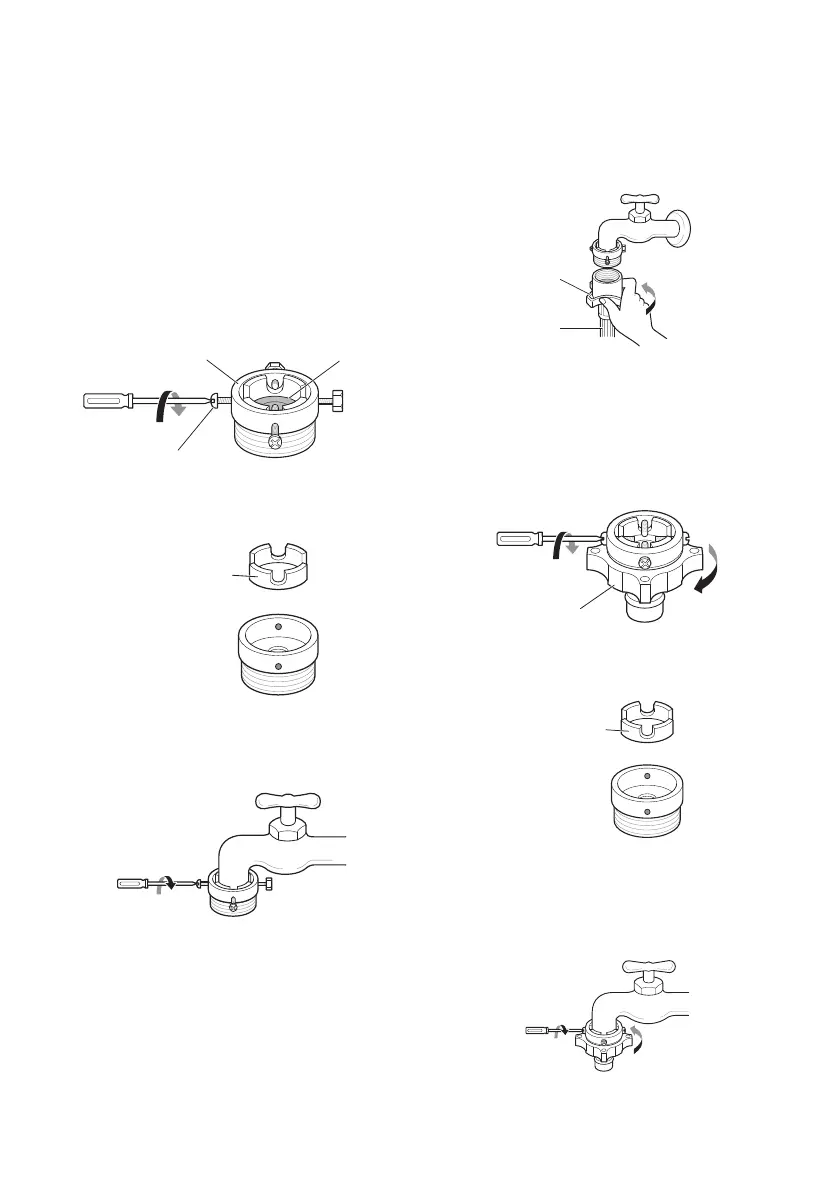

Connecting Screw-Type Hose to Tap
Without Thread
1
Loose the four fixing screws.
Fixing screwFixing screw
Upper Upper
connectorconnector
Rubber Rubber
sealseal
2
Remove the guide plate if the tap is too large to
fit the adapter.
Guide plateGuide plate
3
Push the adapter onto the end of the tap so that
the rubber seal forms a watertight connection.
Tighten the four fixing screws.
4
Push the supply hose vertically upwards so
that the rubber seal within the hose can adhere
completely to the tap and then tighten it by
screwing it to the right.
PlatePlate
Supply Supply
hosehose
Connecting One Touch Type Hose
to Tap Without Thread
1
Unscrew the adapter ring plate and loose the
four fixing screws.
Ring plateRing plate
2
Remove the guide plate if the tap is too large to
fit the adapter.
Guide plateGuide plate
3
Push the adapter onto the end of the tap so that
the rubber seal forms a watertight connection.
Tighten the four fixing screws and the adapter
ring plate.
